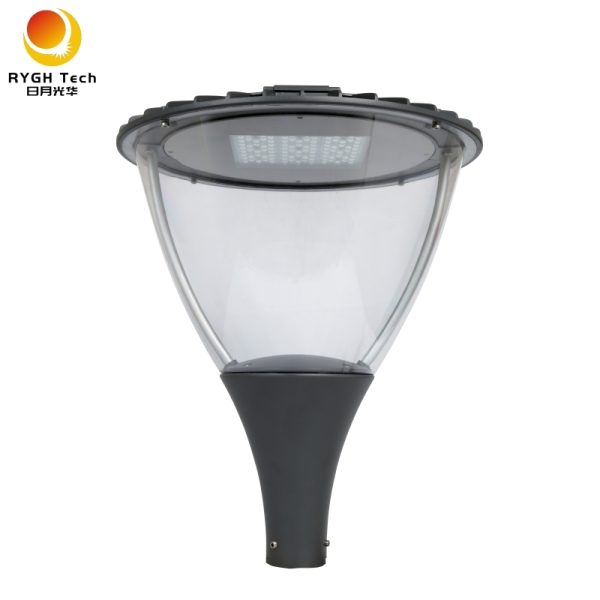

1065 LED Garden Light Features:
1, Available from 30W-100W
2, Excellent heat radiation, optical and electrical ability
3, Die-cast aluminum body with tempered clear glass/PC lens
5, Silicon rubber seal ring
6, Stainless screws
7, Humanized design concept, easy to install and maintain
8, IP65
9, Asymmetrical and symmetrical optional
10, Mount diameter: 60mm
11, LED version only
1065 LED Garden Light specifications
Model No | 1065-30WLEDS/A | 1065-55WLEDS/A | 1065-80WLEDS/A | 1065-100WLEDS/A |
Power | 30 Watt | 55 Watt | 80 Watt | 100 Watt |
Led chips Qty | 48 PCS 3030 | 72 PCS 3030 | 108 PCS 3030 | 108 PCS 3030 |
Luminance Flux (LM) | 2909lm | 5065lm | 6864lm | 7990lm |
LED Chips | Philips | Philips | Philips | Philips |
CCT | 3000K, 4000K, 5000K, 6000K | 3000K, 4000K, 5000K, 6000K | 3000K, 4000K, 5000K, 6000K | 3000K, 4000K, 5000K, 6000K |
CRI | 70/80 | 70/80 | 70/80 | 70/80 |
Lifetime | 50, 000 hours | 50, 000 hours | 50, 000 hours | 50, 000 hours |
Operating Temperature | -35~+55℃ | -35~+55℃ | -35~+55℃ | -35~+55℃ |
Driver | Inventronics | Inventronics | Inventronics | Inventronics |
Electrical | AC 85-277V, 50/60Hz | AC 85-277V, 50/60Hz | AC 85-277V, 50/60Hz | AC 85-277V, 50/60Hz |
Beam angle | 90°/ 41° | 90°/ 41° | 90°/ 43° | 90°/ 43° |
Dimming | Optional | Optional | Optional | Optional |
Material | Die cast AL+clear glass/PC | Die cast AL+clear glass | Die cast AL+clear glass | Die cast AL+clear glass |
Color | Black | Black | Black | Black |
Size | Φ430*H:530mm | Φ430*H:530mm | Φ430*H:530mm | Φ430*H:530mm |
Suitable pole | 60mm | 60mm | 60mm | 60mm |
IP Rating | IP65 | IP65 | IP65 | IP65 |
Environment Requirement
Working Temperature:-35~+55℃
Storage Temperature:-35~+50℃
Working Humidity:0%~85%
Storage Humidity:0%~90%
1065 LED Garden Light Application:
1065 LED Garden Light can be widely applied for pathways, parking lots, building entryways, alleys, streets, tunnels and loading docks.
Warning
- Please install the lamp according to the installation to avoid dropping and electric shock.
- Don’t exchange the lamp as will to avoid dropping ,electric shock and damage of the lamp.
- Working voltage is not to be exceeded AC85-305V50/60Hz
Attention
- Don’t install the lamp to non-stable place.
- Installed by qualified electrician.
- Switch off the switch box and contact certified electrician if the lamp works abnormally
Warranty
5-year warranty since the date of purchase is offered for all led garden Lights.
Warranty Terms
- Under the terms of this warranty, if the product has a failure occurring under normal usage within warranty period, RYGH will provide free maintenance service based on the proof-documents and invoice (copy) of failure product.
- RYGH will not provide paid maintenance service under conditions within warranty.
- Failure or damage due to force majeure.
- Failure or damage due to transport or unloading.
- Failure or damage due to incorrectly usage or fail to comply with the User’s Guide and Caution.
- Failure or damage due to demolition, repair, alteration without Manufacturer’s authorization.
- Please deliver the failure product by original packing for maintenance service, RYGH will not be responsible for any failure or damage in transportation if customer uses non-original packing or improper packing.
- RYGH reserves the right for final explanation of aforesaid terms.
Caution: RYGH will not be responsible for any other failure or damage by incorrect usage.
