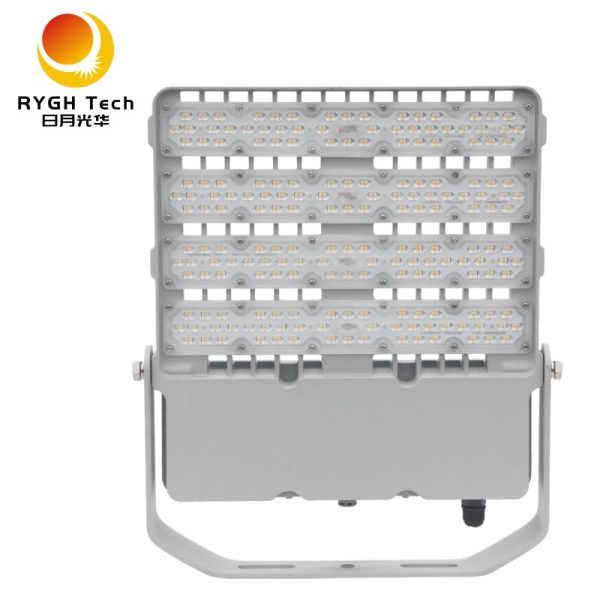

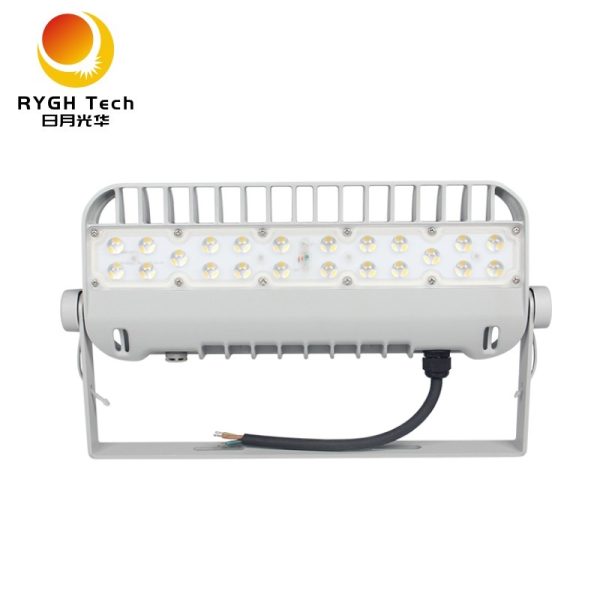

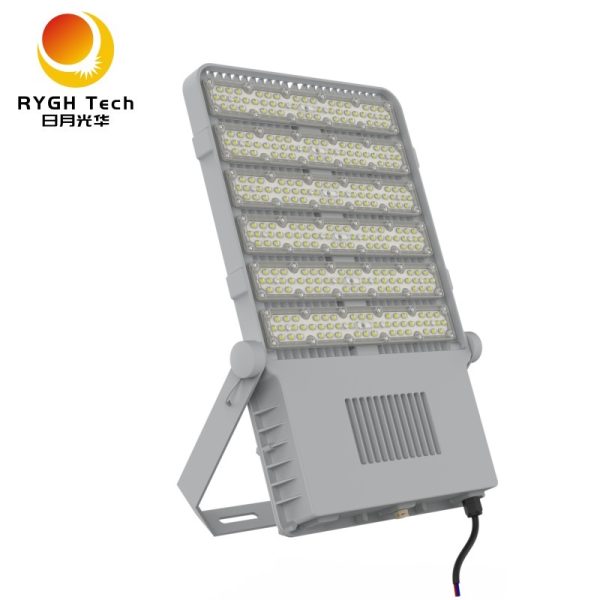

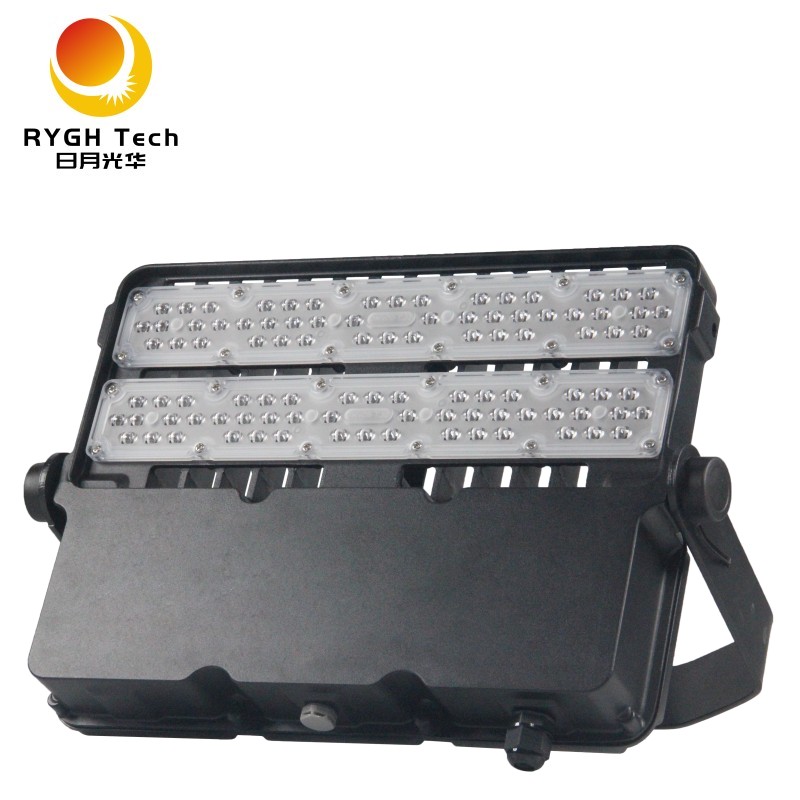

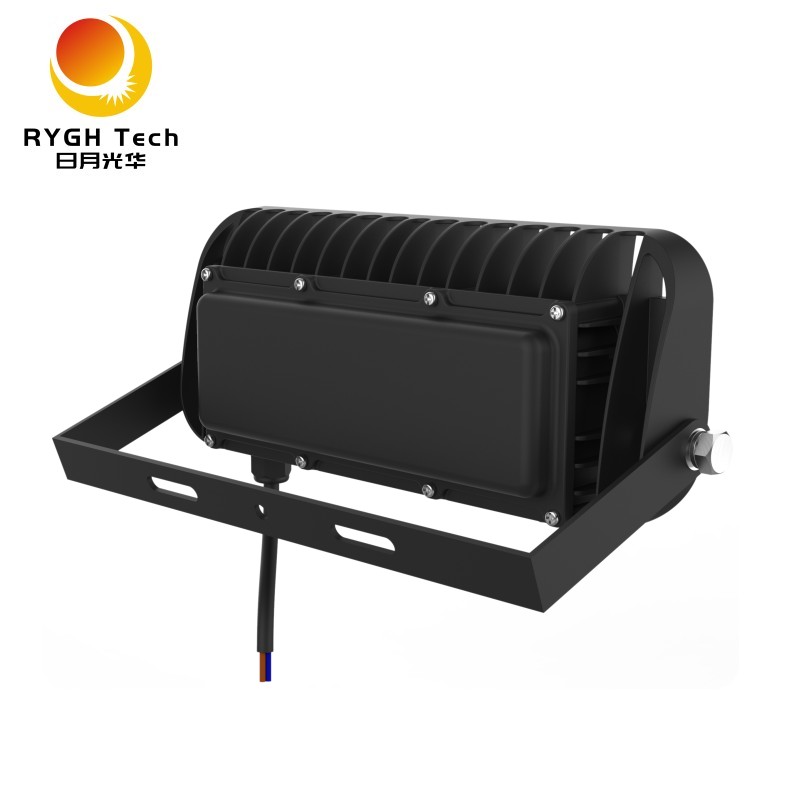

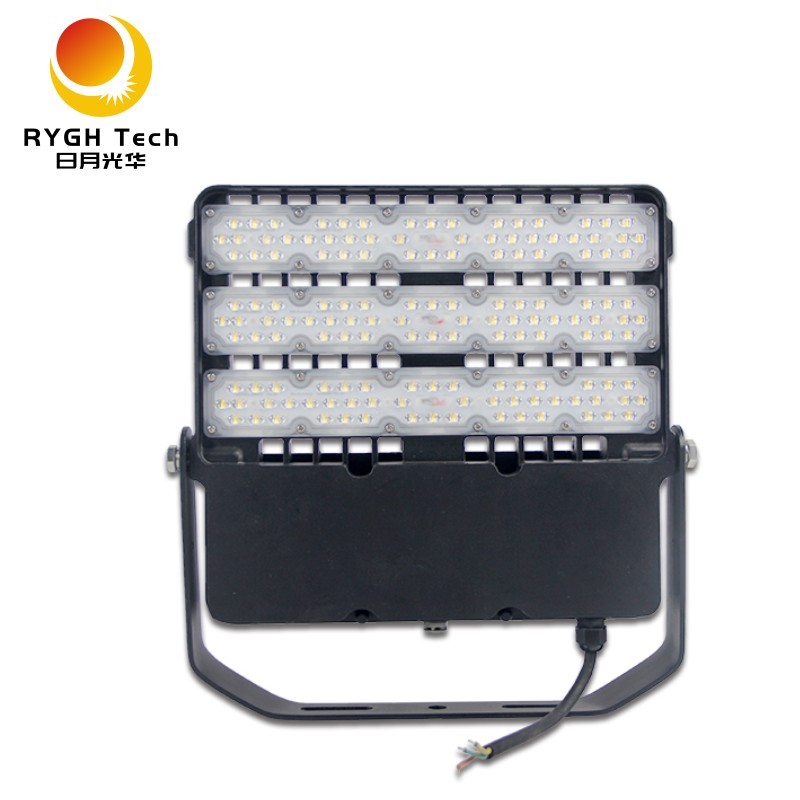

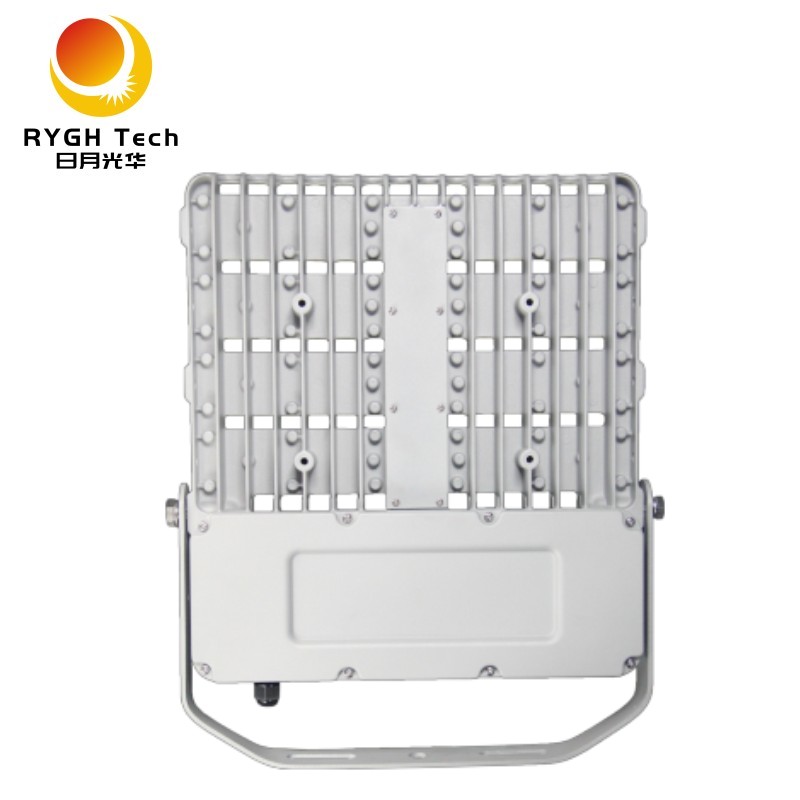

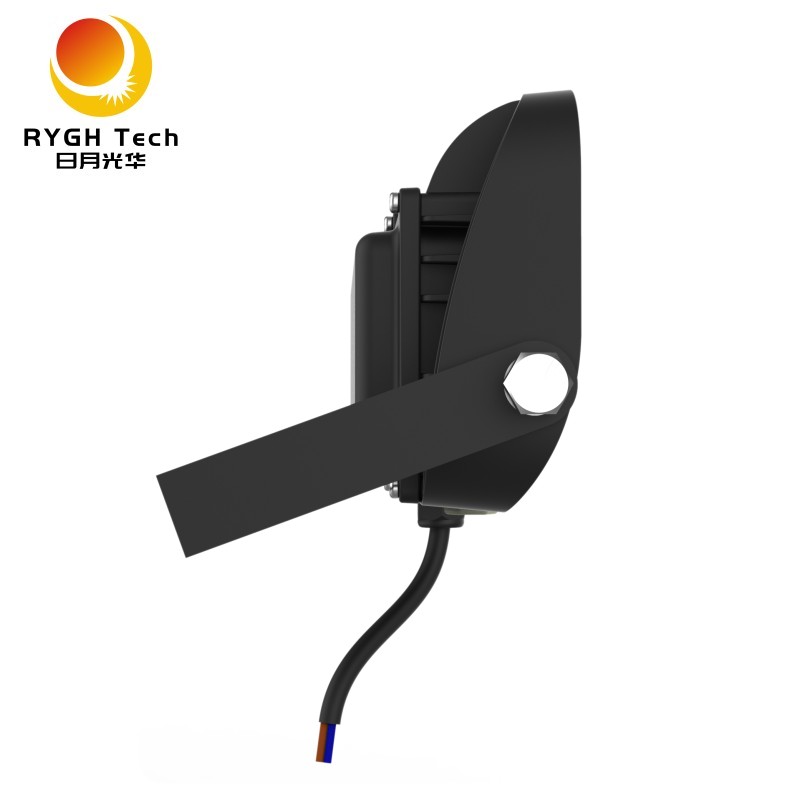

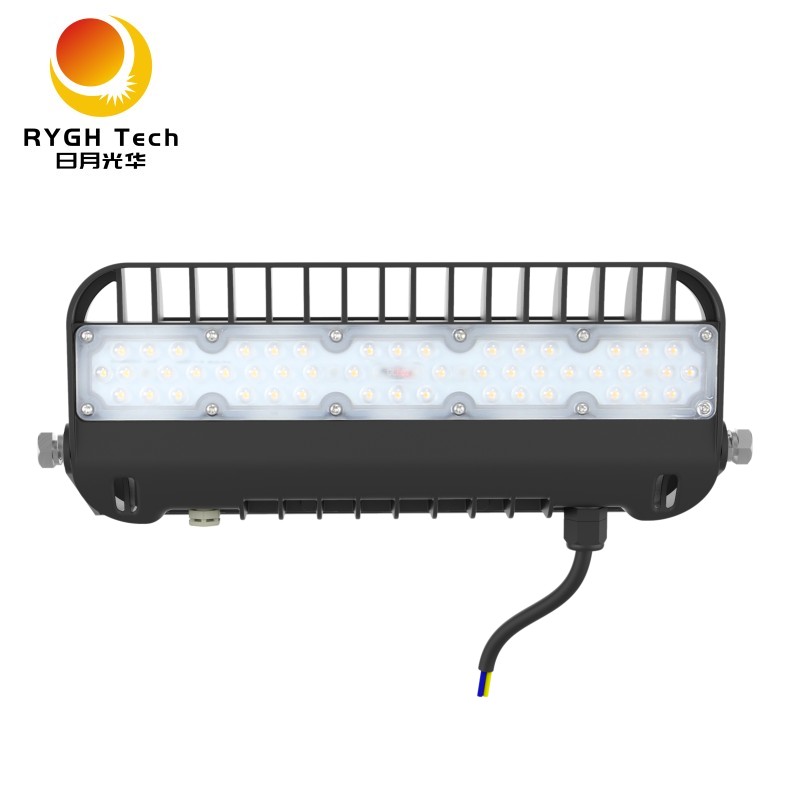

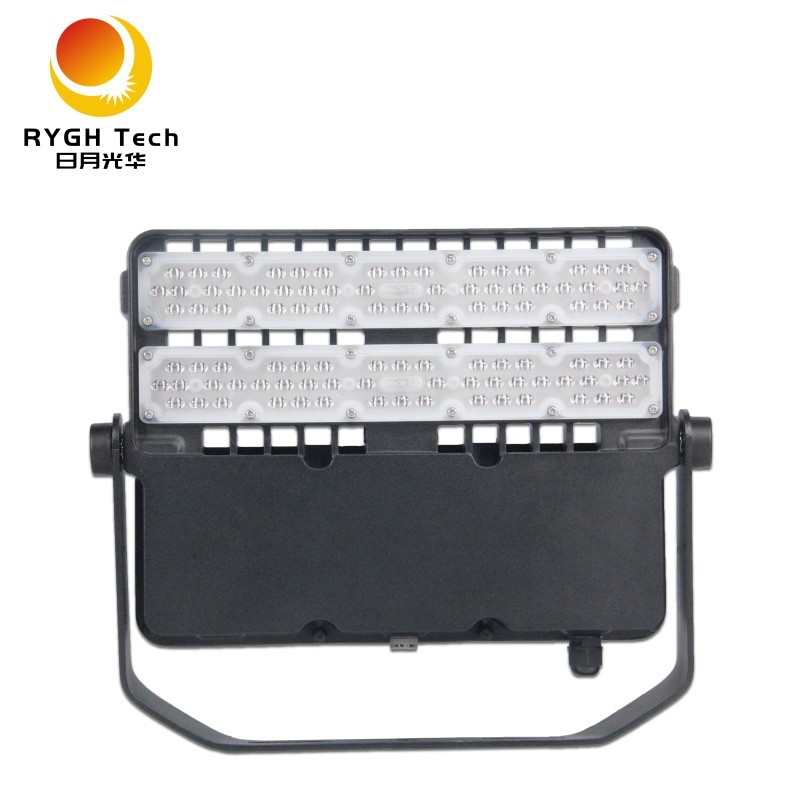

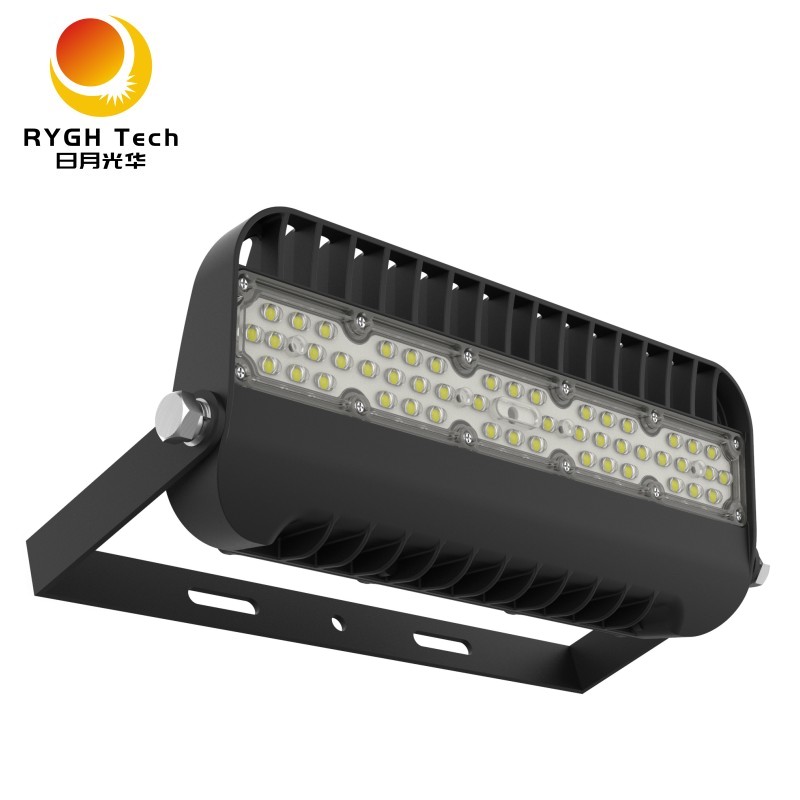

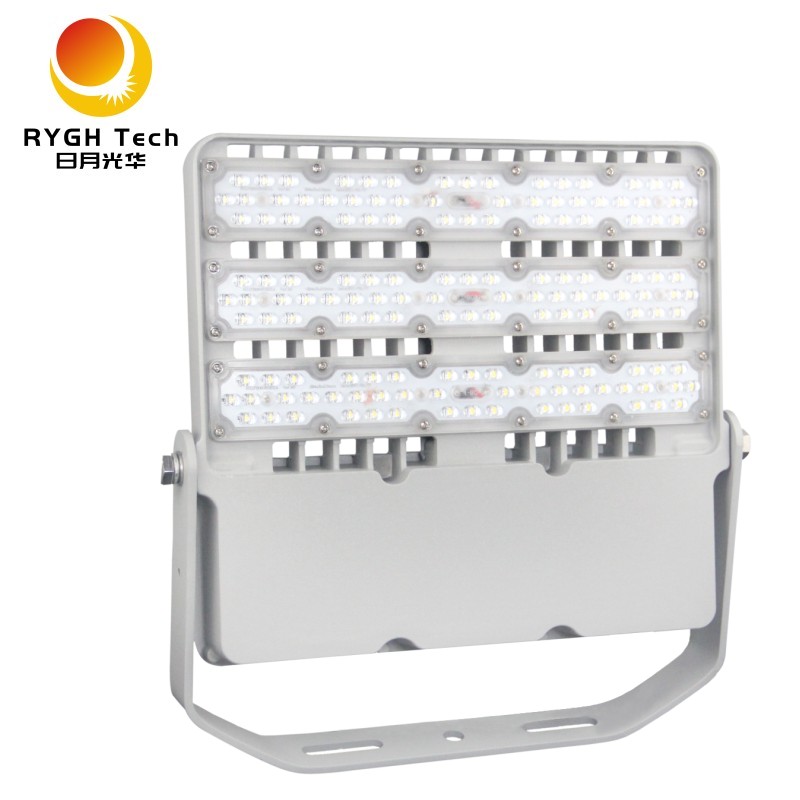

2G LED Flood Light

50W | 100W | 150W | 200W | 300W | 400W | 960W

1, Private mould, slim and elegant appearance;

2, Module design – easy maintenance;

3, Flat honeycomb design – good heat dissipation;

4, High Luminous Efficiency: 120-150 lm/W;

5, Top brand LED chip and driver, ensure the product quality and life time

6, Integrated molding support design, surface anti-corrosion and rust prevention treatment, solid and durable

Model no.	FDL-S1-50BA1	FDL-S1-100BA1	FDL-S1-150BA1	FDL-S1-200BA1
Rated power	50 Watt	100 Watt	150 Watt	200 Watt
Input voltage	AC 85-305V, 50/60Hz	AC 85-305V, 50/60Hz	AC 85-305V, 50/60Hz	AC 85-305V, 50/60Hz
LED Chip	3030 SMD	3030 SMD	3030 SMD	3030 SMD
LED Driver	MEANWELL, INVENTRONICS, SOSEN, etc	MEANWELL, INVENTRONICS, SOSEN, etc	MEANWELL, INVENTRONICS, SOSEN, etc	MEANWELL, INVENTRONICS, SOSEN, etc
Material	AL+PC	AL+PC	AL+PC	AL+PC
CRI	70/80/90/95/98	70/80/90/95/98	70/80/90/95/98	70/80/90/95/98
Power Factor	>0.95	>0.95	>0.95	>0.95
CCT	WW, NW, CW	WW, NW, CW	WW, NW, CW	WW, NW, CW
Light efficacy	130-150LM/W	130-150LM/W	130-150LM/W	130-150LM/W
IP rating	IP65	IP65	IP65	IP65
IK rating	IK08	IK08	IK08	IK08
Operation temperature	-35~+50℃	-35~+50℃	-35~+50℃	-35~+50℃
Beam angle	12°, 30°, 60°, 90°,80150°, 80140°	12°, 30°, 60°, 90°,80150°, 80140°	12°, 30°, 60°, 90°,80150°, 80140°	12°, 30°, 60°, 90°,80150°, 80140°
Warranty	5 Years	5 Years	5 Years	5 Years
Life span	50,000 hours	50,000 hours	50,000 hours	50,000 hours
Dimension	34620065mm	36524560mm	36530060mm	36535560mm
Certificate	CE, RoHs	CE, RoHs	CE, RoHs	CE, RoHs

Model no.	FDL-S1-300BA1	FDL-S1-400BA1	FDL-S1-400BA1	FDL-S1-960BA1
Rated power	300 Watt	400 Watt	400 Watt	960 Watt
Input voltage	AC 85-305V, 50/60Hz	AC 85-305V, 50/60Hz	AC 85-305V, 50/60Hz	AC 85-305V, 50/60Hz
LED Chip	3030 SMD	3030 SMD	3030 SMD	3030 SMD
LED Driver	MEANWELL, INVENTRONICS, SOSEN, etc	MEANWELL, INVENTRONICS, SOSEN, etc	MEANWELL, INVENTRONICS, SOSEN, etc	MEANWELL, INVENTRONICS, SOSEN, etc
Material	AL+PC	AL+PC	AL+PC	AL+PC
CRI	70/80/90/95/98	70/80/90/95/98	70/80/90/95/98	70/80/90/95/98
Power Factor	>0.95	>0.95	>0.95	>0.95
CCT	WW, NW, CW	WW, NW, CW	WW, NW, CW	WW, NW, CW
Light efficacy	130-150LM/W	130-150LM/W	130-150LM/W	130-150LM/W
IP rating	IP65	IP65	IP65	IP65
IK rating	IK08	IK08	IK08	IK08
Operation temperature	-35~+50℃	-35~+50℃	-35~+50℃	-35~+50℃
Beam angle	12°, 30°, 60°, 90°,80150°, 80140°	12°, 30°, 60°, 90°,80150°, 80140°	12°, 30°, 60°, 90°,80150°, 80140°	12°, 30°, 60°, 90°,80150°, 80140°
Warranty	5 Years	5 Years	5 Years	5 Years
Life span	50,000 hours	50,000 hours	50,000 hours	50,000 hours
Dimension	59039064mm	59039064mm	69535560mm	775711120mm
Certificate	CE, RoHs	CE, RoHs	CE, RoHs	CE, RoHs

Environment Requirement

Working Temperature：-35~+50℃

Storage Temperature：-35~+50℃

Working Humidity：0%~85%

Storage Humidity：0%~90%

2G LED Flood light can be widely applied in Port, Wharf, Tower Crane, Golf Course, Football Field, Stadium etc.

Warning

Please install the lamp according to the installation to avoid dropping and electric shock.
Don’t exchange the lamp as will to avoid dropping ,electric shock and damage of the lamp.
Working voltage is not to be exceeded AC100-305V 50/60Hz

Attention

Don’t install the lamp to non-stable place.
Installed by qualified electrician.
Switch off the switch box and contact certified electrician if the lamp works abnormally

Warranty

5-year warranty since the date of purchase is offered for all flood Light.

Warranty Terms

Under the terms of this warranty, if the product has a failure occurring under normal usage within warranty period, RYGH will provide free maintenance service based on the proof-documents and invoice (copy) of failure product.
RYGH will not provide paid maintenance service under conditions within warranty.
Failure or damage due to force majeure.
Failure or damage due to transport or unloading.
Failure or damage due to incorrectly usage or fail to comply with the User’s Guide and Caution.
Failure or damage due to demolition, repair, alteration without Manufacturer’s authorization.
Please deliver the failure product by original packing for maintenance service, RYGH will not be responsible for any failure or damage in transportation if customer uses non-original packing or improper packing.
RYGH reserves the right for final explanation of aforesaid terms.
