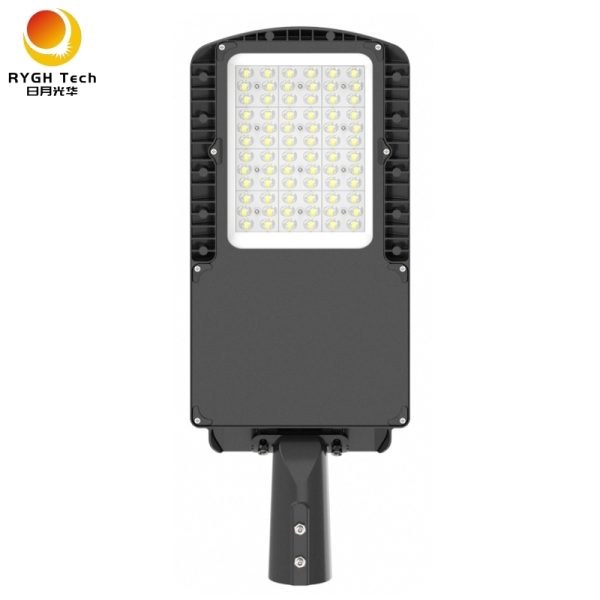

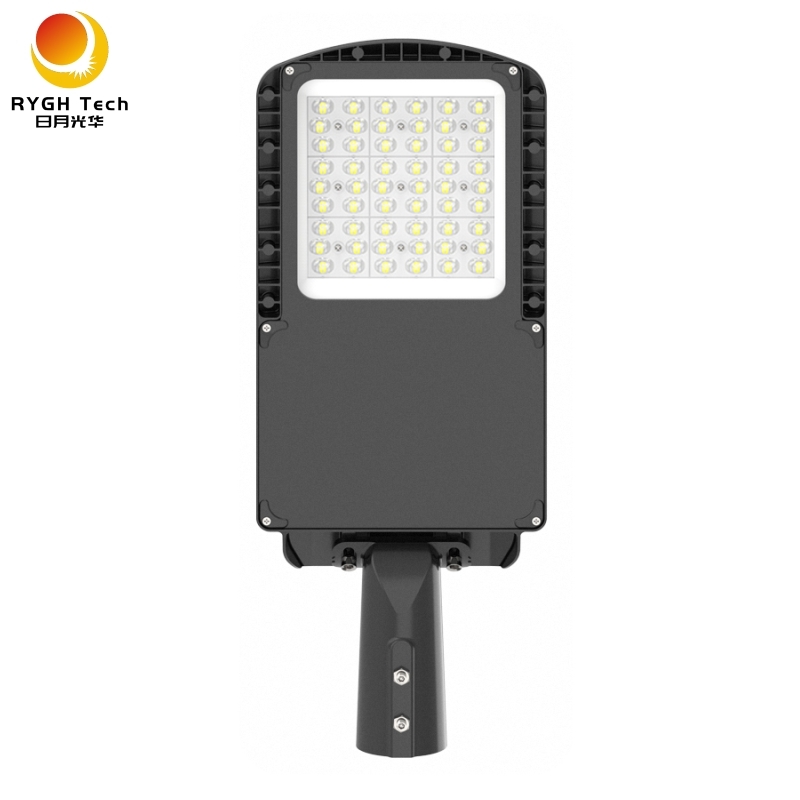

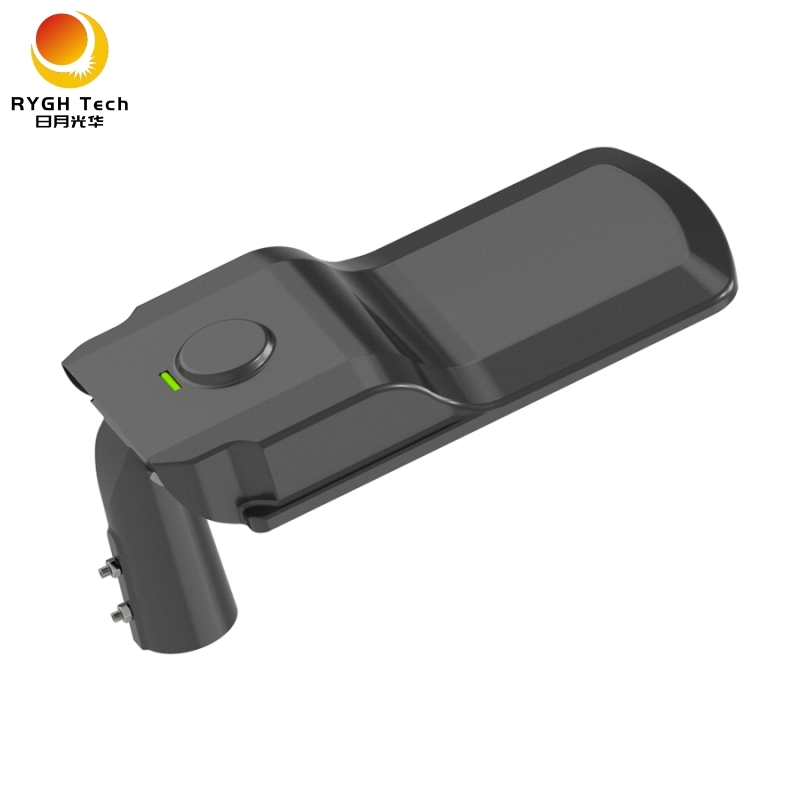

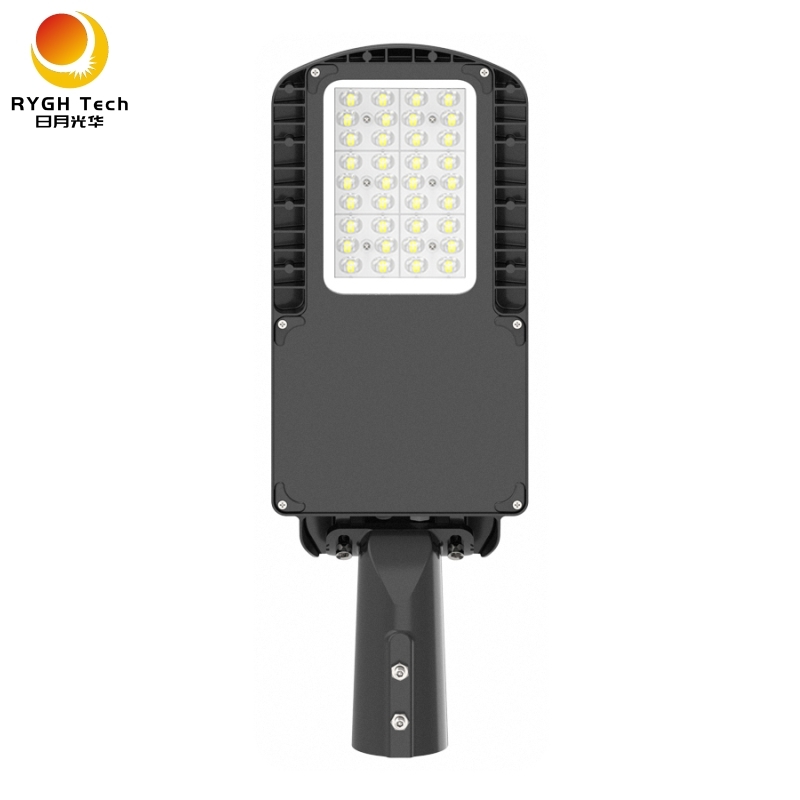

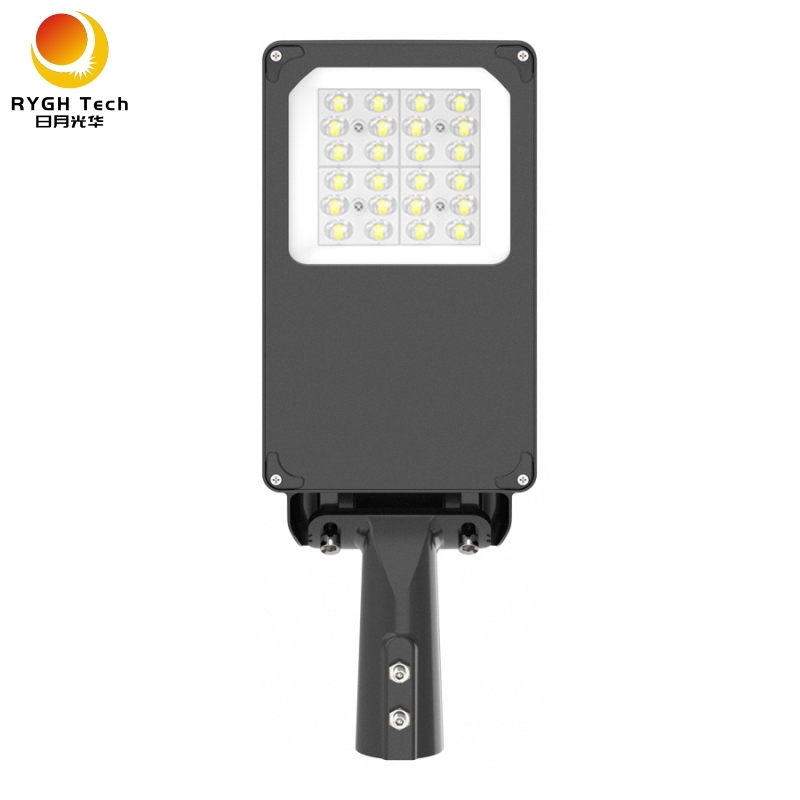

8G LED Street Light

8G Led Street Light features：25W | 50W | 60W | 80W
100W | 120W | 150W

1, Patent private mould, integrated die-casting AL.

2, High efficiency, 130-170lm/w available.

3, Professional glare-free lens, 60°/90°/120°/T2M/T3M/T4M.

4, 0-10V dimming/time control/light sensor/IOT control available.

5, Flat honeycomb design, good heat dissipation.

6, Gradienter design: easy for horizontal installation.

7, Snap-on type installation, tool-free disassembly

8, Tempered glass panel, no glue fixed

9, IP66

Description
Reviews 0

8G Led Street Light Specifications

Item No.		RL-S8-25W	RL-S8-50W	RL-S8-60W	RL-S8-80W	RL-S8-100W	RL-S8-120W	RL-S8-150W
Power		25W	50W	60W	80W	100W	120W	150W
LED Luminous Eﬃciency 1		120-130lm/w
LED Quantity	4-in-onelens	64pcs 3030	64pcs 3030	96pcs 3030	144pcs 3030	144pcs 3030	144pcs 3030	192 pcs 3030
Luminous Flux	Lumileds 3030	3600±10%	6500±10%	7200±10%	10800±10%	13000±10%	14400±10%	19500±10%
LED Luminous Eﬃciency 2		140-150lm/w
LED Quantity	6-in-onelens	96pcs 3030	96pcs 3030	144pcs 3030	216pcs 3030	216pcs 3030	216pcs 3030	288 pcs 3030
Luminous Flux	Lumileds 3030	3800±10%	7500±10%	8700±10%	12000±10%	14500±10%	16800±10%	22500±10%
LED Luminous Eﬃciency 3		150-160lm/w
LED Quantity	6-in-onelens	24 pcs 5050	24 pcs 5050	36 pcs 5050	54 pcs 5050	54 pcs 5050	54 pcs 5050	72 pcs 5050
Luminous Flux	Lumileds 5050	4000±10%	8000±10%	9600±10%	12800lm±10%	16000±10%	18000±10%	24000±10%
LED Luminous Eﬃciency 4		170-180lm/w
LED Quantity	8-in-onelens	32 pcs 5050	32 pcs 5050	48pcs 5050	72pcs 5050	72pcs 5050	72pcs 5050	96 pcs 5050
Luminous Flux	Lumileds 5050	4500±10%	8700±10%	10200±10%	14000±10%	17500±10%	20400±10%	27000±10%
Lamp Size		463173110mm	463173110mm	570200110mm	611240111mm	611240111mm	680260111mm	680260111mm

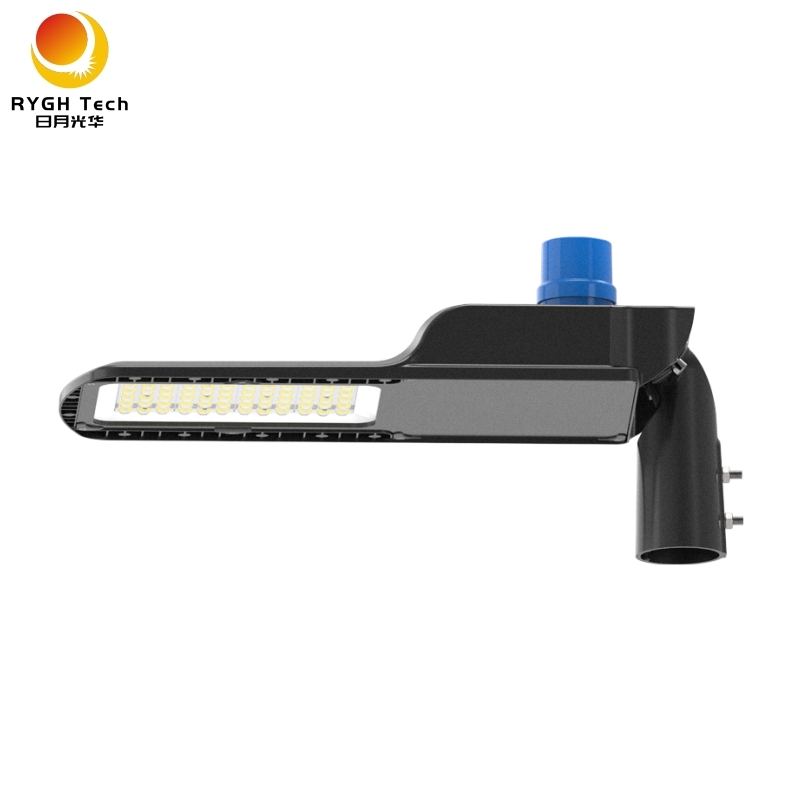

Lamp Size with photocell		463173130mm	463173130mm	570200130mm	611240131mm	611240131mm	680260131mm	680260131mm
Voltage		AC100V-240V 50/60HZ
LED Type		Lumileds 3030
Color Temperature	Warm white	3000-4000K
	Neutral white	4000-5000K
	Cool white	5000-6000K
Beam Angle	4-in-onelens	60°/90°/120°/T2M/T3M/T4M
Color Rendering Index(CRI)		Ra>70
Power Supply Eﬃciency		>88%
Power Factor(PF)		>0.95
Total Harmonic Distortion(THD)		≤15%
IP Rank		IP 66
Certiﬁcate		CE,CB,RoHS

Mechanical specifications

LED Driver: Meanwell/Moso/Sosen/Inventronics

Housing Processing: Die-casting

Material: ADC12

Environment Requirement

Working Temperature：-35~+50℃

Storage Temperature：-35~+50℃

Working Humidity：0%~85%

Storage Humidity：0%~90%

8G Led Street Light Application:

8G Led Street Light are widely used for street, road, highway, viaduct, overpass, sidewalk, outdoor lighting places, such as squares,schools, residential areas and parks.

Warning

Please install the lamp according to the installation to avoid dropping and electric shock.
Don’t exchange the lamp as will to avoid dropping ,electric shock and damage of the lamp.
Working voltage is not to be exceeded AC100-305V 50/60Hz

Attention

Don’t install the lamp to non-stable place.
Installed by qualified electrician.
Switch off the switch box and contact certified electrician if the lamp works abnormally

Warranty

5-year warranty since the date of purchase is offered for all street Light.

Warranty Terms

Under the terms of this warranty, if the product has a failure occurring under normal usage within warranty period, RYGH will provide free maintenance service based on the proof-documents and invoice (copy) of failure product.
RYGH will not provide paid maintenance service under conditions within warranty.
Failure or damage due to force majeure.
Failure or damage due to transport or unloading.
Failure or damage due to incorrectly usage or fail to comply with the User’s Guide and Caution.
Failure or damage due to demolition, repair, alteration without Manufacturer’s authorization.
Please deliver the failure product by original packing for maintenance service, RYGH will not be responsible for any failure or damage in transportation if customer uses non-original packing or improper packing.
RYGH reserves the right for final explanation of aforesaid terms.

Caution: RYGH will not be responsible for any other failure or damage by incorrect usage.
