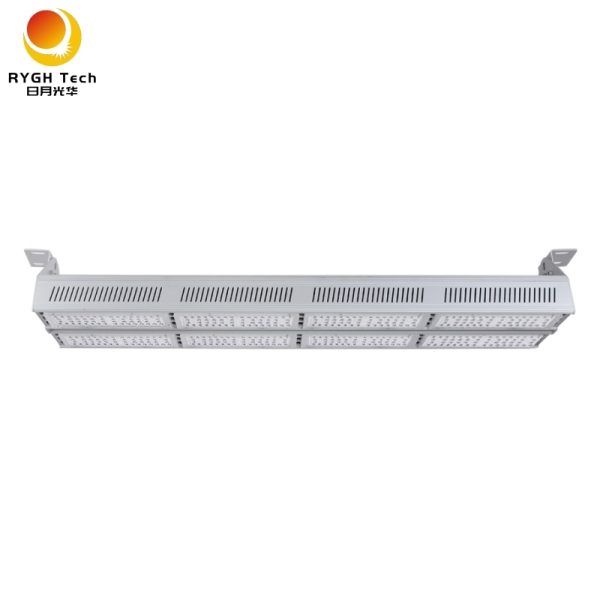

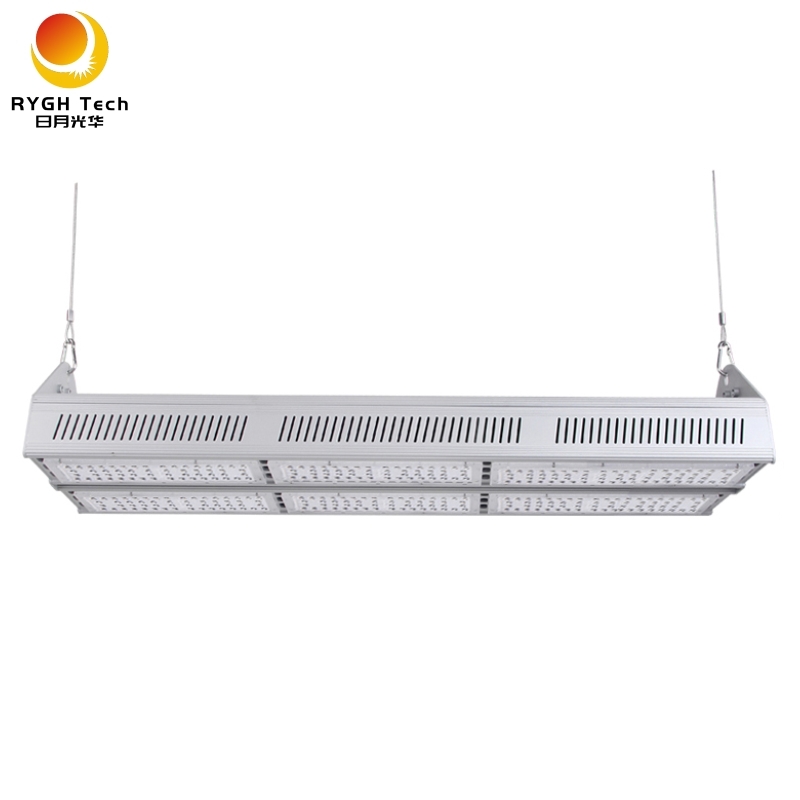

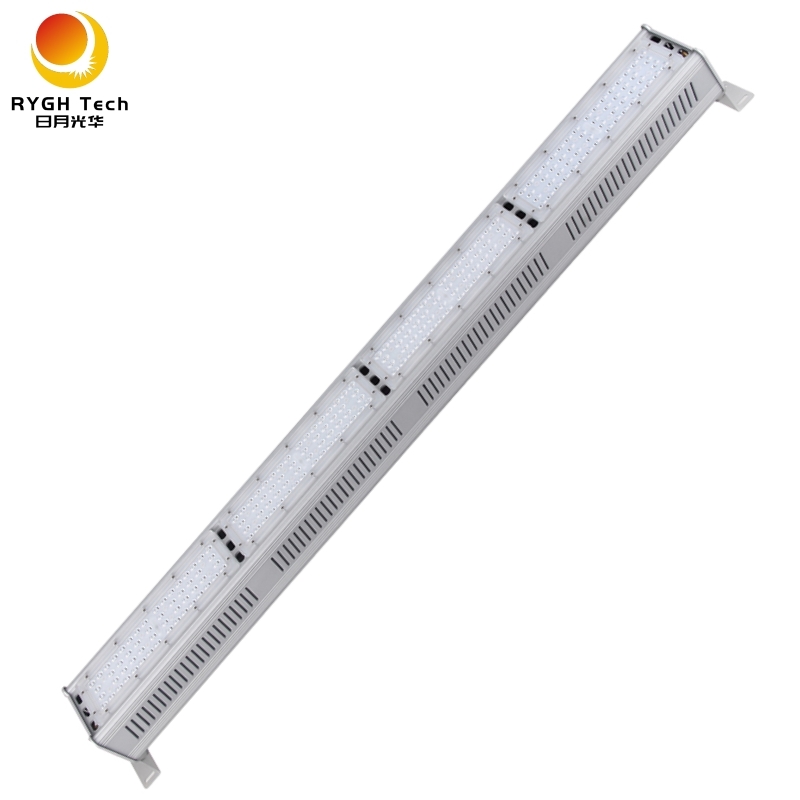

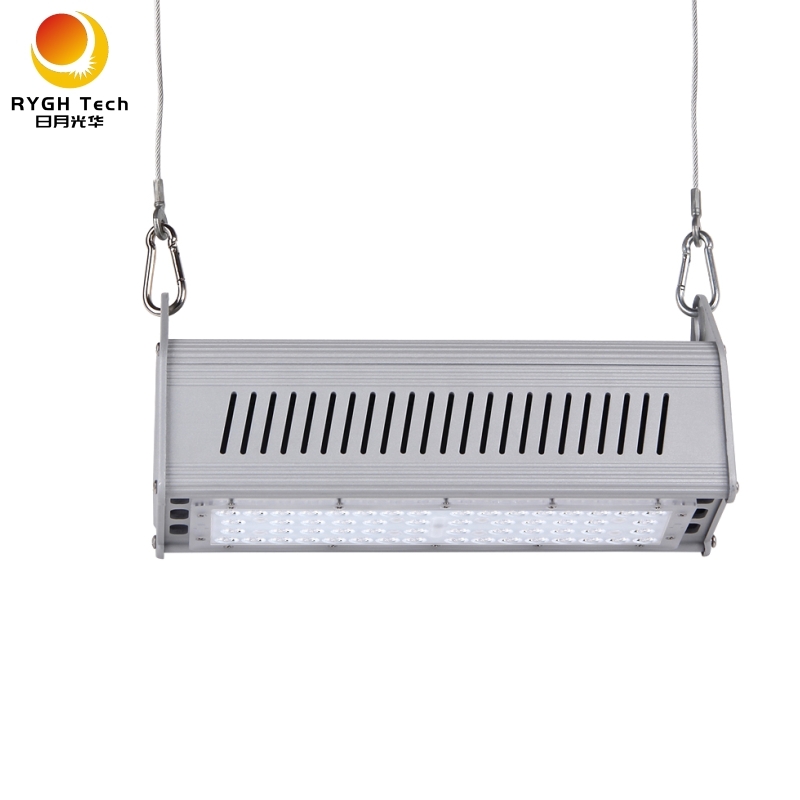

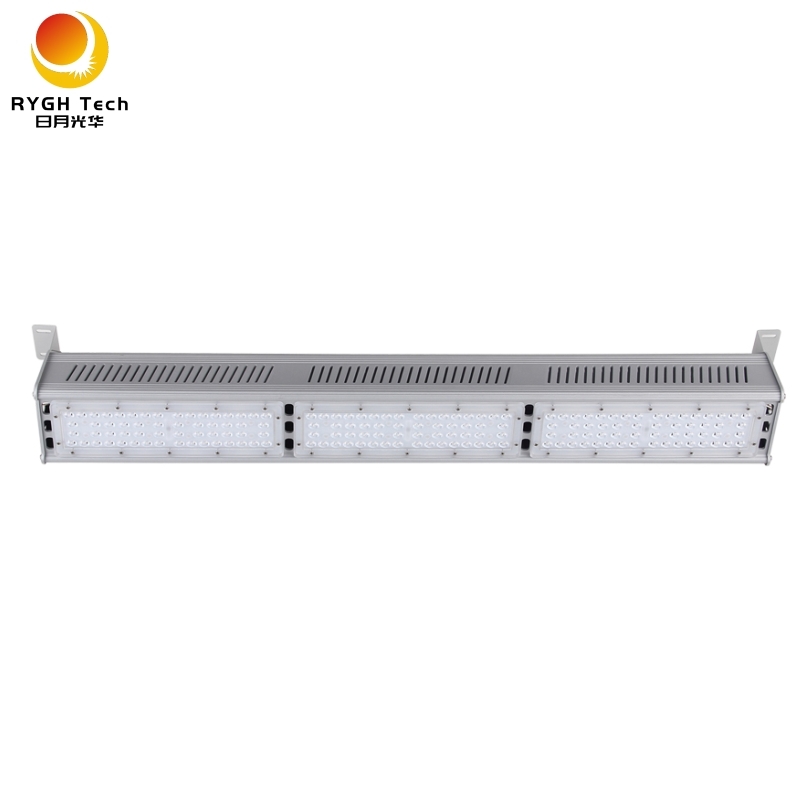

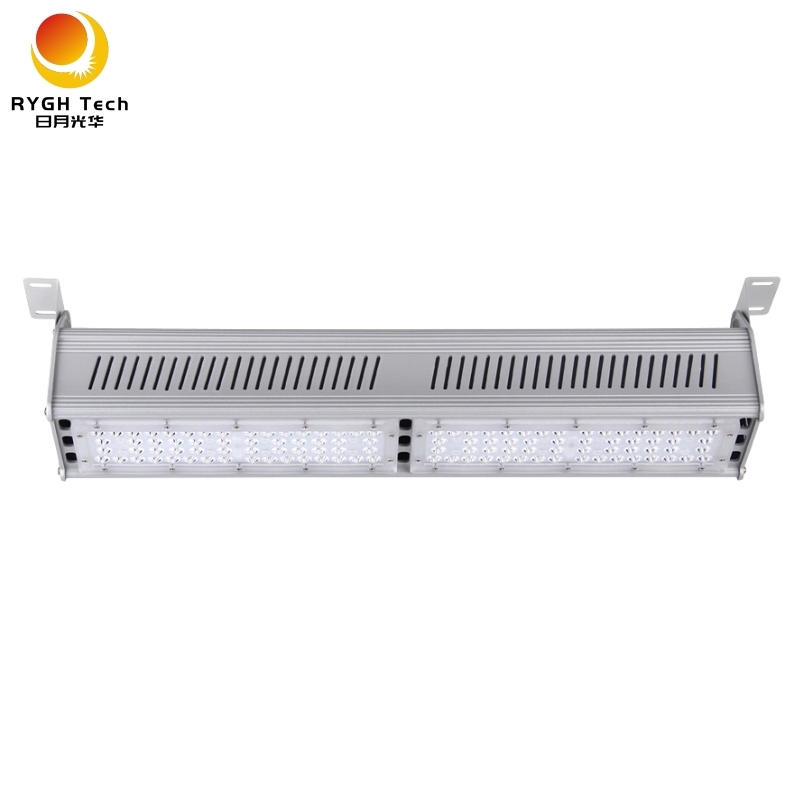

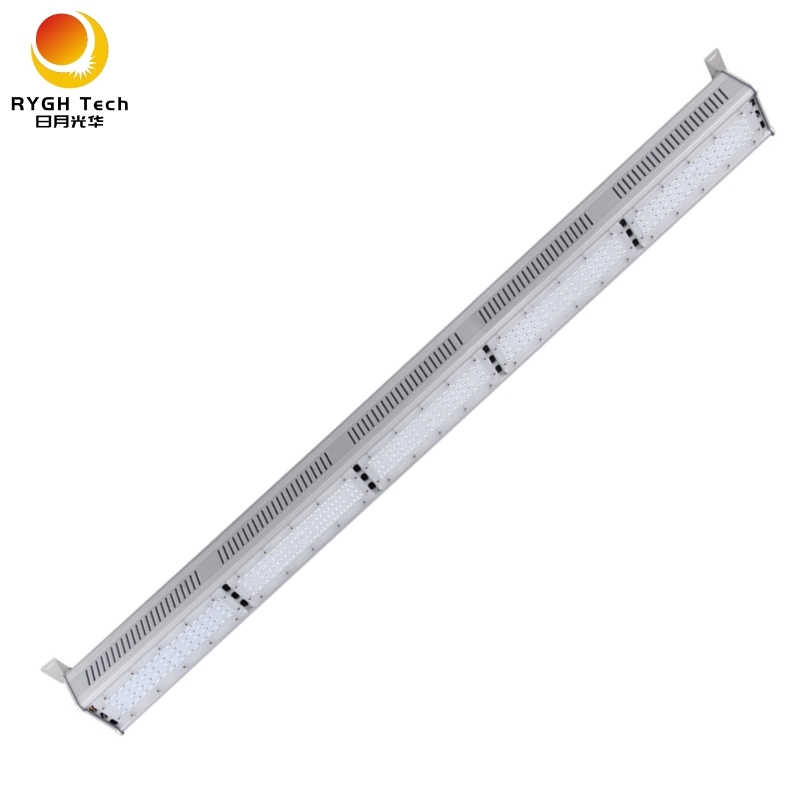

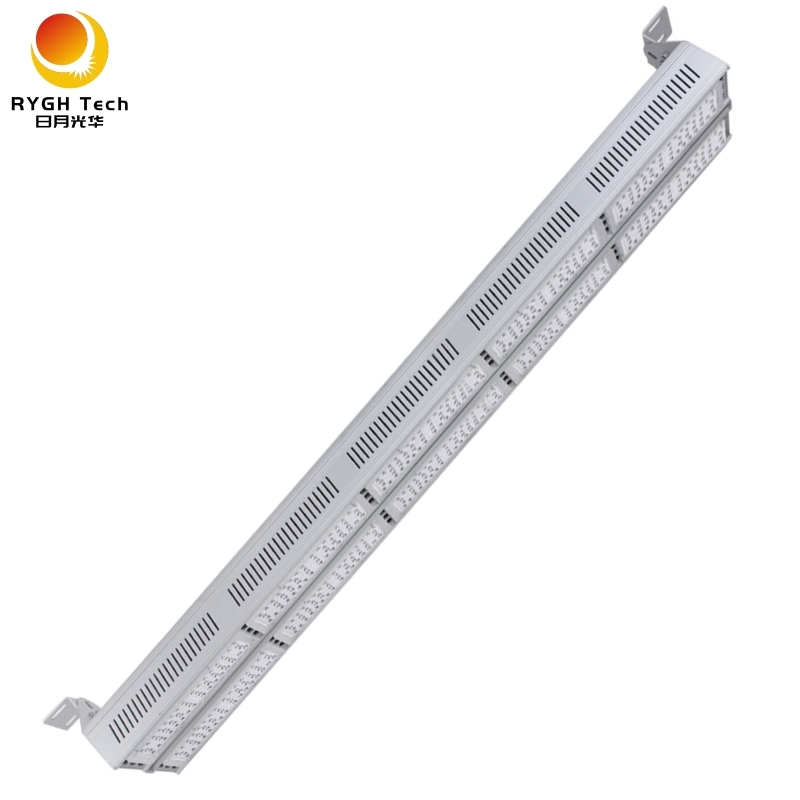

A LED Linear high bay light
A LED Linear High Bay Light features: 50W | 100W | 150W | 200W | 250W
300W | 400W | 500W
1, High efficiency, 110-130lm/w available
2, Beam angle 30/60/90/60*120/30*70/140*80 degree
3, aluminum modules, max 500W
4, Good heat dissipation, long lifespan
5, surface coating process
6, Protection index: IP65
A LED Linear High Bay Light Specifications
| Part No. | AD-LB-50W | AD-LB-100W | AD-LB-150W | AD-LB-200W |
| Power: | 50W | 100W | 150W | 200W |
| Size: | 353*115*144mm | 620*115*144mm | 887*115*144mm | 1154*115*144mm |
| Input Voltage: | AC 85-277V, 50/60Hz | |||
| Led: | 3030 56 pcs | 3030 112 pcs | 3030 168 pcs | 3030 224 pcs |
| Chip: | OSRAM / Philips / Bridgelux | |||
| Material: | Aluminium + LENZ | |||
| Surge Voltage | 3.75V | 3.75V | 3.75V | 3.75V |
| Driver: | MEANWELL ELG, HLG or China Driver | |||
| Color Temp: | 2800-3200K / 4000-4500K / 5000-5500K / 6000-6500K | |||
| CRI: | >80 | |||
| Total Lumen: | 6000-6500LM | 12000-13000LM | 18000-19500LM | 24000-26000LM |
| Beam Angle: | 140*80 degree | |||
| Power Factor: | >95 | > 0.95 | > 0.95 | > 0.95 |
| IP Grade: | IP65 | |||
| Lamp Lifespan: | 50000 hours | |||
| Certificate: | Comply with CE, RoHS | |||
| Ctn Size(mm) | 385*165*195MM | 650*165*195MM | 920*165*195MM | 1185*165*195MM |
| Pcs/ Ctn: | 1 pc | 1 pc | 1 pc | 1 pc |
| Weight/Ctn(kg): | 2.15kg | 3.95kg | 5.25kg | 6.8kg |
| Part No. | AD-LB-250W | AD-LB-300W | AD-LB-400W | AD-LB-500W |
| Power: | 250W | 300W | 400W | 500W |
| Size: | 1421*115*144mm | 947*230*173mm | 1214*230*173mm | 1481*230*173mm |
| Input Voltage: | AC 85-277V, 50/60Hz | |||
| Led: | 3030 280 pcs | 3030 336 pcs | 3030 448 pcs | 3030 560 pcs |
| Chip: | OSRAM / Philips / Bridgelux | |||
| Material: | Aluminium + LENZ | |||
| Surge Voltage | 3.75V | 3.75V | 3.75V | 3.75V |
| Driver: | MEANWELL ELG, HLG or China Driver | |||
| Color Temp: | 2800-3200K / 4000-4500K / 5000-5500K / 6000-6500K | |||
| CRI: | >80 | |||
| Total Lumen: | 30000-32500LM | 36000-39000LM | 48000-52000LM | 60000-65000LM |
| Beam Angle: | 140*80 degree | |||
| Power Factor: | >95 | > 0.95 | > 0.95 | > 0.95 |
| IP Grade: | IP65 | |||
| Lamp Lifespan: | 50000 hours | |||
| Certificate: | Comply with CE, RoHS | |||
| Ctn Size(mm) | 1450*165*195MM | 920*280*220MM | 1185*280*220MM | 1450*280*220MM |
| Pcs/ Ctn: | 1 pc | 1 pc | 1 pc | 1 pc |
| Weight/Ctn(kg): | 8.55kg | 11kg | 14.7kg | 17.9kg |
Environment Requirement
Working Temperature：-35~+50℃
Storage Temperature：-35~+50℃
Working Humidity：0%~85%
Storage Humidity：0%~90%
A LED Linear High Bay Light Application:
A LED Linear High Bay Light can be widely applied in Work shop, Factory building, warehouse, Mine, Tunnel, Road toll station, gas station, large-scale supermarket, exhibition hall, stadium and other places
Warning
- Please install the lamp according to the installation to avoid dropping and electric shock.
- Don’t exchange the lamp as will to avoid dropping ,electric shock and damage of the lamp.
- Working voltage is not to be exceeded AC100-305V 50/60Hz
Attention
- Don’t install the lamp to non-stable place.
- Installed by qualified electrician.
- Switch off the switch box and contact certified electrician if the lamp works abnormally
Warranty
5-year warranty since the date of purchase is offered for all led linear high bay Lights.
Warranty Terms
- Under the terms of this warranty, if the product has a failure occurring under normal usage within warranty period, RYGH will provide free maintenance service based on the proof-documents and invoice (copy) of failure product.
- RYGH will not provide paid maintenance service under conditions within warranty.
- Failure or damage due to force majeure.
- Failure or damage due to transport or unloading.
- Failure or damage due to incorrectly usage or fail to comply with the User’s Guide and Caution.
- Failure or damage due to demolition, repair, alteration without Manufacturer’s authorization.
- Please deliver the failure product by original packing for maintenance service, RYGH will not be responsible for any failure or damage in transportation if customer uses non-original packing or improper packing.
- RYGH reserves the right for final explanation of aforesaid terms.
Caution: RYGH will not be responsible for any other failure or damage by incorrect usage.
