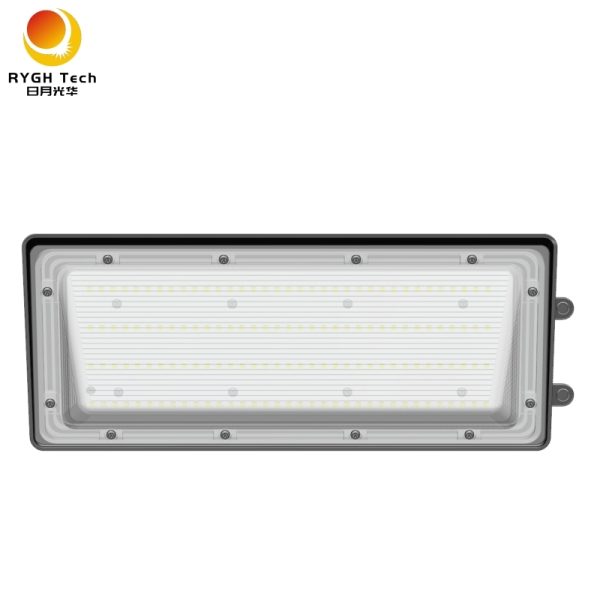

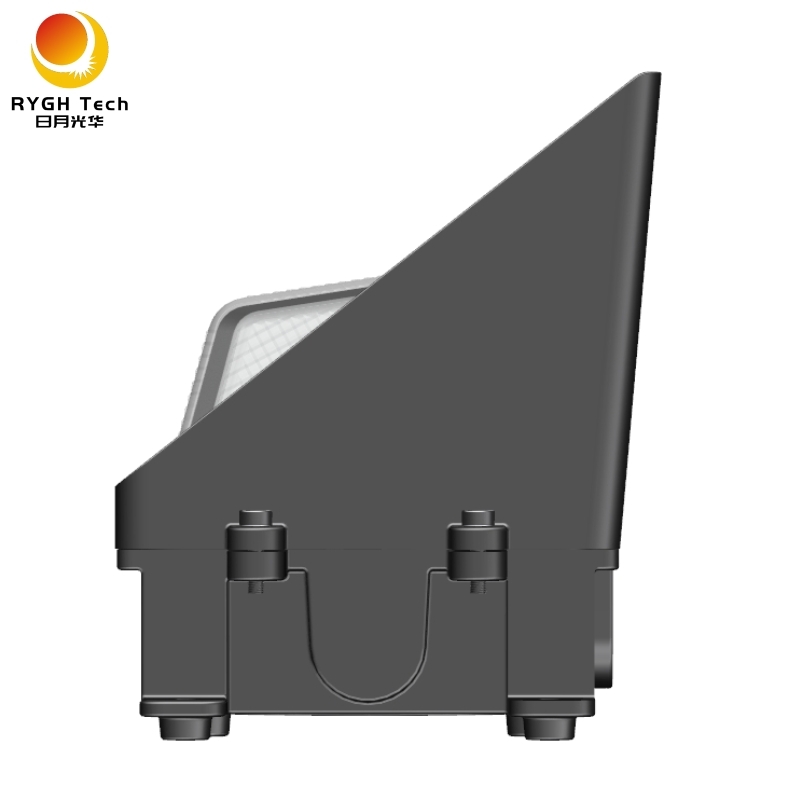

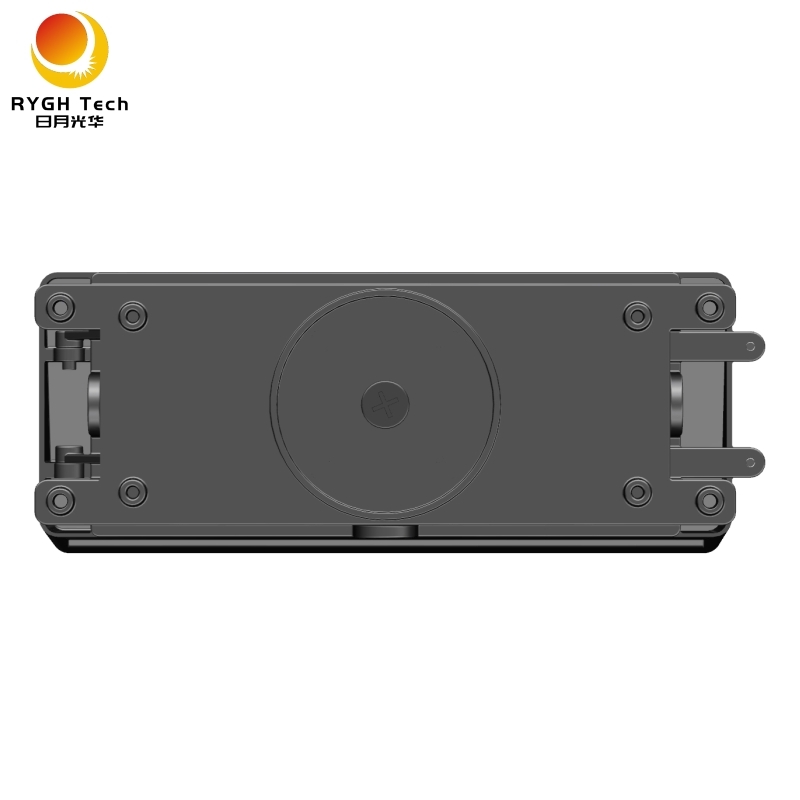

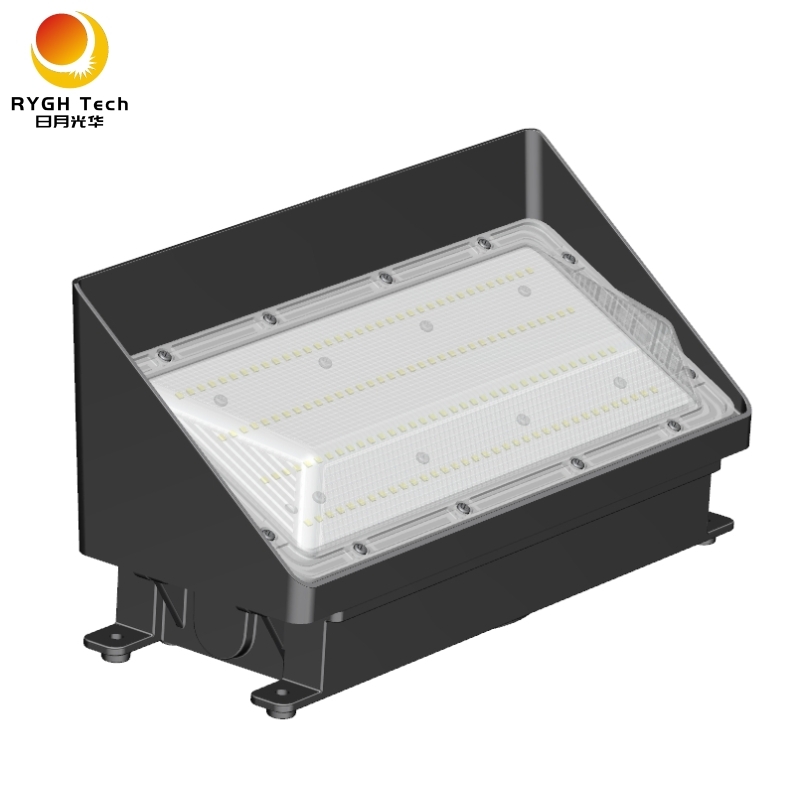

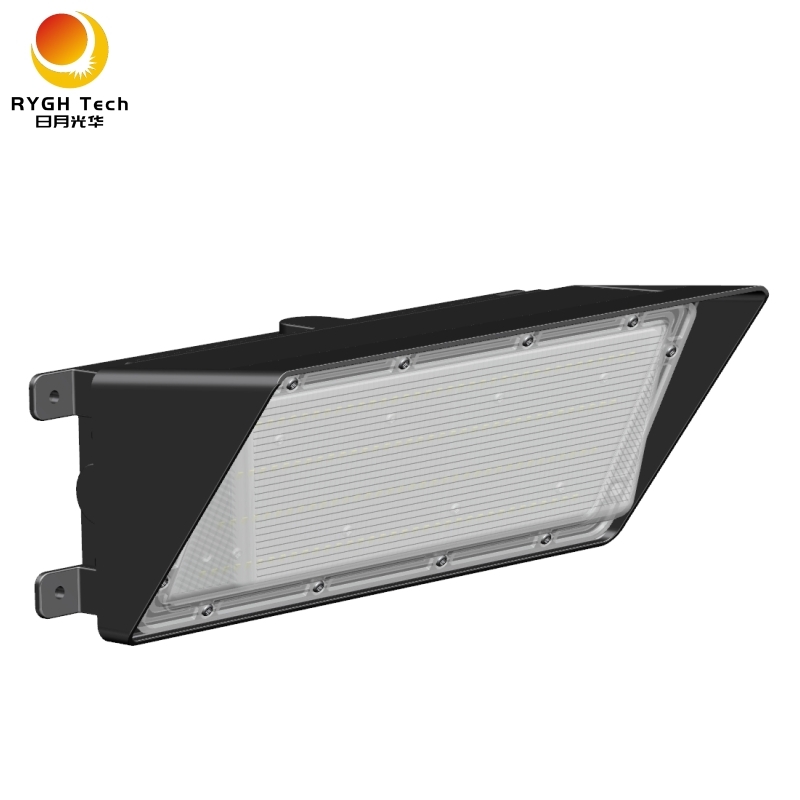

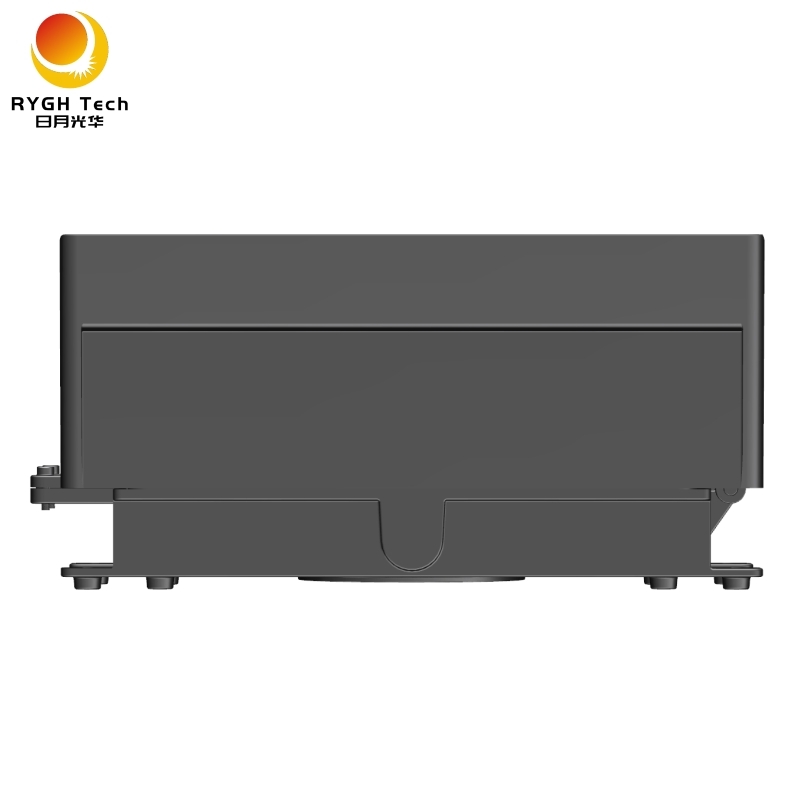

B LED Wall Pack Light

B LED Wall Pack Light Features: 40W | 50W | 60W | 80W | 100W | 110-180LM/W

1, Cost effective

2, Sturdy aluminum construction, durable PC lens, long lasting, optimal light Spread

3, Classic familiar Styling

4, IP65 Frame

5, Philips Lumileds LED Array

6, LED Driver, voltage AC100-277V, AC 347-480V

7, Easy to install and operate

8, 50 to 90 percent energy reductions

Model no.	RYGH-BDB40W	RYGH-BDB50W	RYGH-BDB60W	RYGH-BDB80W	RYGH-BDB100W
Name	LED Wall Pack Light
Rated power	40 Watt	50 Watt	60 Watt	80 Watt	100 Watt
Input voltage	AC 85-305V,AC 347-480V, 50/60Hz
LED Chip	3030 SMD 60 PCS	3030 SMD 80 PCS		3030 SMD 140 PCS
LED Driver	MEANWELL, Inventronics, Sosen
Material	Die cast AL+PC Lens
CRI	70/80
Power Factor	>0.95
CCT	WW, NW, CW
Light efficacy	110-180LM/W
IP rating	IP65
IK rating	IK08
Operation temperature	-35~+50℃
Beam angle	120°
Warranty	5 Years
Life span	50,000 hours
Dimension	L322W161H132mm
Packing quantity	1 piece/CTN
Net Weight	2.4KG
Gross Weight	3.4KG
Packing size	CTN：553942cm, Inner box：371720cm, 6 pcs/ctn
Certificate	CE, RoHs

Environment Requirement

Working Temperature：-35~+50℃

Storage Temperature：-35~+50℃

Working Humidity：0%~85%

Storage Humidity：0%~90%

B LED Wall Pack Light can be widely applied for outdoor wall packing.

Warning

Please install the lamp according to the installation to avoid dropping and electric shock.
Don’t exchange the lamp as will to avoid dropping ,electric shock and damage of the lamp.
Working voltage is not to be exceeded AC85-305V or AC 347-480V50/60Hz

Attention

Don’t install the lamp to non-stable place.
Installed by qualified electrician.
Switch off the switch box and contact certified electrician if the lamp works abnormally

Warranty

5-year warranty since the date of purchase is offered for all Led Wall Pack Light.

Warranty Terms

Under the terms of this warranty, if the product has a failure occurring under normal usage within warranty period, RYGH will provide free maintenance service based on the proof-documents and invoice (copy) of failure product.
RYGH will not provide paid maintenance service under conditions within warranty.
Failure or damage due to force majeure.
Failure or damage due to transport or unloading.
Failure or damage due to incorrectly usage or fail to comply with the User’s Guide and Caution.
Failure or damage due to demolition, repair, alteration without Manufacturer’s authorization.
Please deliver the failure product by original packing for maintenance service, RYGH will not be responsible for any failure or damage in transportation if customer uses non-original packing or improper packing.
RYGH reserves the right for final explanation of aforesaid terms.

Caution: RYGH will not be responsible for any other failure or damage by incorrect usage.
