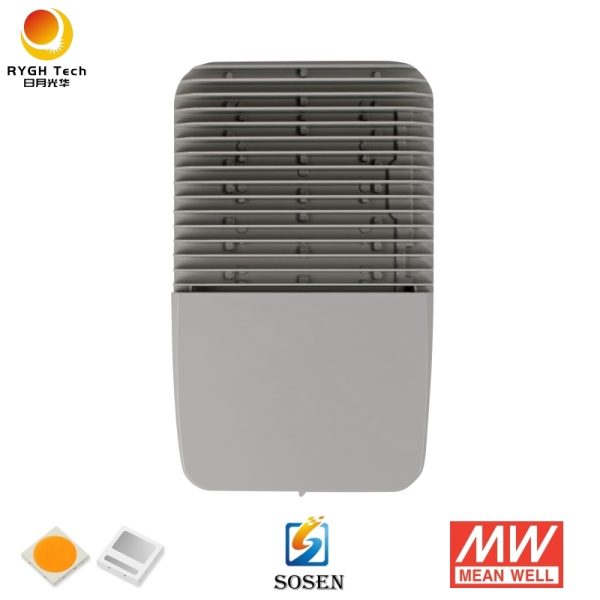

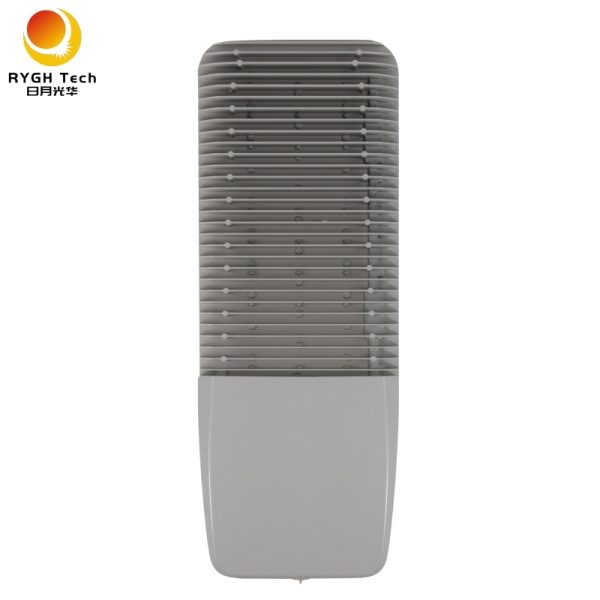

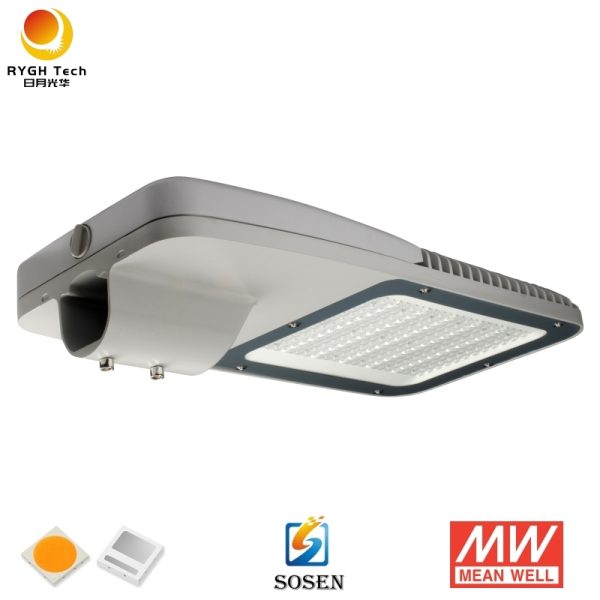

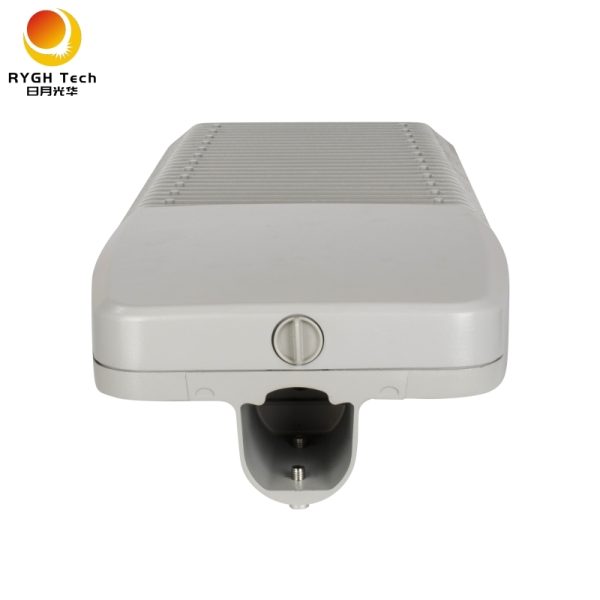

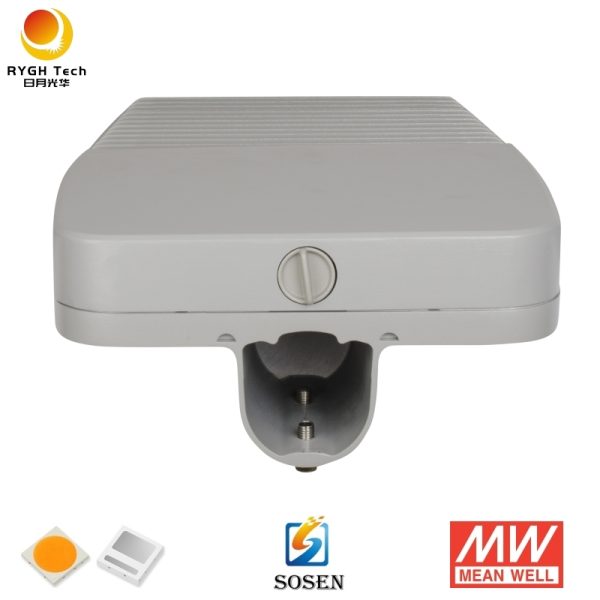

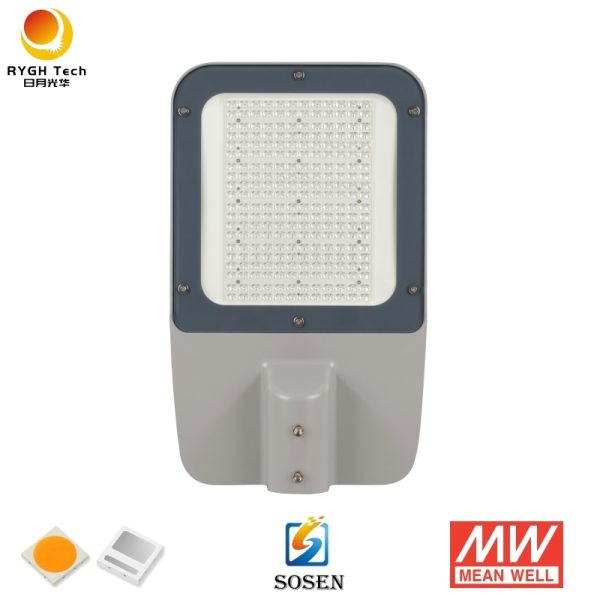

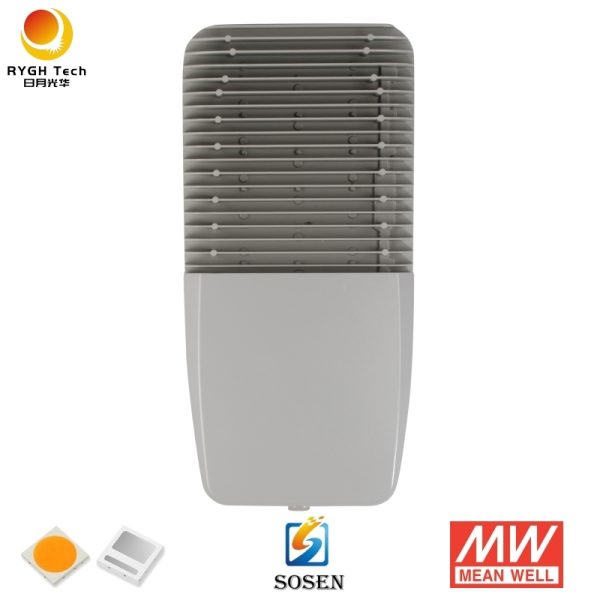

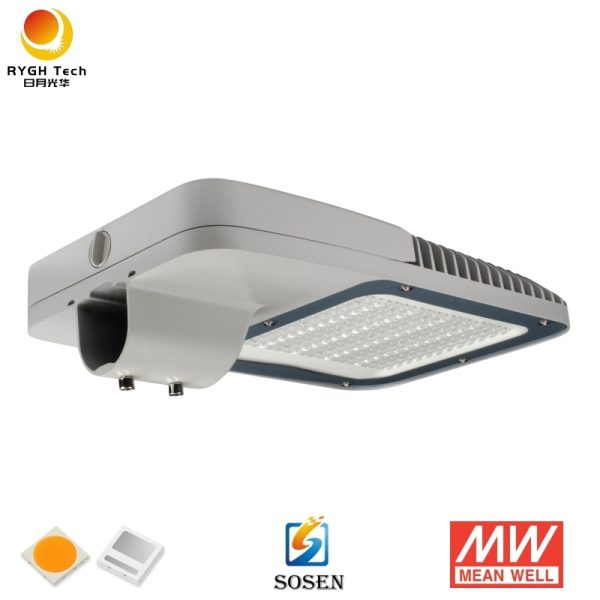

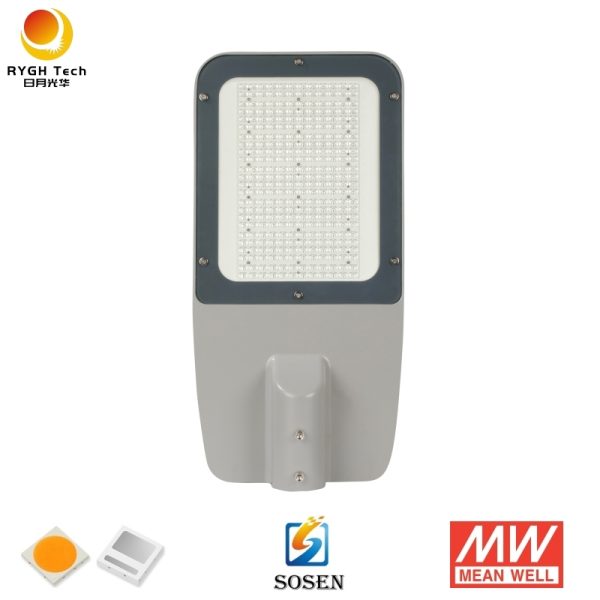

09/26/2022BRP LED Street Light
BPR Led Street Light Features: 60W | 80W
| 100W | 120W | 150W | 180W | 200W | 240W
| 300W | 320W
BRP led street light features:
1, Integrated die-casting AL, Excellent thermal management
2, High efficiency, 120lm/w-160lm/w
3, Dedicated lens for different road configurations
4, 0-10V dimming/time control/light sensor/IOT control optional
5, Tool-free maintenance
6, Lightweight housing design
7, Wind force 0.134 m²
8, Input voltage 85 – 305 Vac
9, Type of protection IP 66
10, Impact type of protection IK 08
BPR Led Street Light Specifications
Item No | RYGH-BRP-60W | RYGH-BRP-80W | RYGH-BRP-100W | RYGH-BRP-120W | RYGH-BRP-150W |
Lamp Size | 422*310*132mm, pipe 48-60mm | 422*310*132mm, pipe 48-60mm | 422*310*132mm, pipe 48-60mm | 422*310*132mm, pipe 48-60mm | 52.2*31.8*13.2cm, pipe 48-60mm |
Voltage | AC85V-277V 47-63Hz | AC85V-277V 47-63Hz | AC85V-277V 47-63Hz | AC85V-277V 47-63Hz | AC85V-277V 47-63Hz |
Power | 60W | 80W | 100W | 120W | 150W |
LED Type | 3030/5050 SMD | 3030/5050 SMD | 3030/5050 SMD | 3030/5050 SMD | 3030/5050 SMD |
LED Quantity | 3030 96 Piece | 3030 144 Piece | 3030 144 Piece | 3030 144 Piece | 3030 192 Piece |
Color Temperature | 2700-6500K | 2700-6500K | 2700-6500K | 2700-6500K | 2700-6500K |
Beam Angle | 150*70° | 150*70° | 150*70° | 150*70° | 150*70° |
Color Rendering Index (CRI) | Ra>70 | Ra>70 | Ra>70 | Ra>70 | Ra>70 |
Power Supply Efficiency | >92% | >92% | >92% | >92% | >92% |
LED Luminous Efficiency | 120-160lm/W | 120-160lm/W | 120-160lm/W | 120-160lm/W | 120-160lm/W |
Power Factor (PF) | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 |
Total Harmonic Distortion (THD) | ≤15% | ≤15% | ≤15% | ≤15% | ≤15% |
IP Rank | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 |
Life time | 50,000 hrs | 50,000 hrs | 50,000 hrs | 50,000 hrs | 50,000 hrs |
Packing size | 46.5*33*18CM | 46.5*33*18CM | 46.5*33*18CM | 46.5*33*18CM | 55.2*33*18cm |
Gross Weight | 6.5KG | 6.5KG | 6.5KG | 6.5KG | 8KG |
Certificate | CE, Rohs | CE, Rohs | CE, Rohs | CE, Rohs | CE, Rohs |
IK Rating | IK08 | IK08 | IK08 | IK08 | IK08 |
Warranty | 5 years | 5 years | 5 years | 5 years | 5 years |
Item No | RYGH-BRP-180W | RYGH-BRP-200W | RYGH-BRP-240W | RYGH-BRP-300W | RYGH-BRP-320W |
Lamp Size | 52.2*31.8*13.2cm, pipe 48-60mm | 52.2*31.8*13.2cm, pipe 48-60mm | 65*31.8*13.2cm, pipe 48-60mm | 85.5*31.8*13.2cm, pipe 48-60mm | 85.5*31.8*13.2cm, pipe 48-60mm |
Voltage | AC85V-277V 47-63Hz | AC85V-277V 47-63Hz | AC85V-277V 47-63Hz | AC85V-277V 47-63Hz | AC85V-277V 47-63Hz |
Power | 180W | 200W | 240W | 300W | 320W |
LED Type | 3030/5050 SMD | 3030/5050 SMD | 3030/5050 SMD | 3030/5050 SMD | 3030/5050 SMD |
LED Quantity | 3030 240 Piece | 3030 240 Piece | 288 Piece | 288 Piece | 336 Piece |
Color Temperature | 2700-6500K | 2700-6500K | 2700-6500K | 2700-6500K | 2700-6500K |
Beam Angle | 150*70° | 150*70° | 150*70° | 150*70° | 150*70° |
Color Rendering Index (CRI) | Ra>70 | Ra>70 | Ra>70 | Ra>70 | Ra>70 |
Power Supply Efficiency | >92% | >92% | >92% | >92% | >92% |
LED Luminous Efficiency | 120-160lm/W | 120-160lm/W | 120-160lm/W | 120-160lm/W | 120-160lm/W |
Power Factor (PF) | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 |
Total Harmonic Distortion (THD) | ≤15% | ≤15% | ≤15% | ≤15% | ≤15% |
IP Rank | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 |
Life time | 50,000 hrs | 50,000 hrs | 50,000 hrs | 50,000 hrs | 50,000 hrs |
Packing size | 55.2*33*18cm | 55.2*33*18cm | 68*35*18cm | 91*36*21cm/1pc | 91*36*21cm/1pc |
Gross Weight | 8KG | 8KG | 10KG | 14KG | 14KG |
Certificate | CE, Rohs | CE, Rohs | CE, Rohs | CE, Rohs | CE, Rohs |
IK Rating | IK08 | IK08 | IK08 | IK08 | IK08 |
Warranty | 5 years | 5 years | 5 years | 5 years | 5 years |
Environment Requirement
Working Temperature:-35~+50℃
Storage Temperature:-35~+50℃
Working Humidity:0%~85%
Storage Humidity:0%~90%
BPR Led Street Light Application:
BPR Led Street Light are widely used for street, road, highway, viaduct, overpass, sidewalk, outdoor lighting places, such as squares,schools, residential areas and parks.
Warning
- Please install the lamp according to the installation to avoid dropping and electric shock.
- Don’t exchange the lamp as will to avoid dropping ,electric shock and damage of the lamp.
- Working voltage is not to be exceeded AC100-305V 50/60Hz
Attention
- Don’t install the lamp to non-stable place.
- Installed by qualified electrician.
- Switch off the switch box and contact certified electrician if the lamp works abnormally
Warranty
5-year warranty since the date of purchase is offered for all street Light.
Warranty Terms
- Under the terms of this warranty, if the product has a failure occurring under normal usage within warranty period, RYGH will provide free maintenance service based on the proof-documents and invoice (copy) of failure product.
- RYGH will not provide paid maintenance service under conditions within warranty.
- Failure or damage due to force majeure.
- Failure or damage due to transport or unloading.
- Failure or damage due to incorrectly usage or fail to comply with the User’s Guide and Caution.
- Failure or damage due to demolition, repair, alteration without Manufacturer’s authorization.
- Please deliver the failure product by original packing for maintenance service, RYGH will not be responsible for any failure or damage in transportation if customer uses non-original packing or improper packing.
- RYGH reserves the right for final explanation of aforesaid terms.
Caution: RYGH will not be responsible for any other failure or damage by incorrect usage.
Other models of RYGH LED Street Light: 371 LED Street Light, 6G LED Street Light, 7G LED Street Light, 8G LED Street Light, 1G Shoebox Led Street Light, BY Led Street Light, G led street light, K LED Street Light, L LED Street Light, LD05A LED Street Light, LD7G Shoebox Led Street Light, OB2 LED Street Light
Other Category of RYGH LED lighting: LED Grow Light, LED Stadium Light, Solar LED Street Light, LED Vapor Tight Light, LED Flood Light, LED Tunnel Light, LED High Bay Light, LED Garden Light, LED Bollard, LED Spotlight, LED Wall Pack Light, LED Canopy Light
You must be logged in to post a review.
Related products
-
G led street light
G Series Led Street Light Features: 100W | 150W | 200W | 300W
110-160lm/w1, Slim and elegant appearance
2, Shoebox type
3, Multi beam angles: Type I, Type II, Type III, Type V
4, SPD 10KV
5, Photocell optional
6, 0-10V dimming optional
7, High transparency PC lens
-

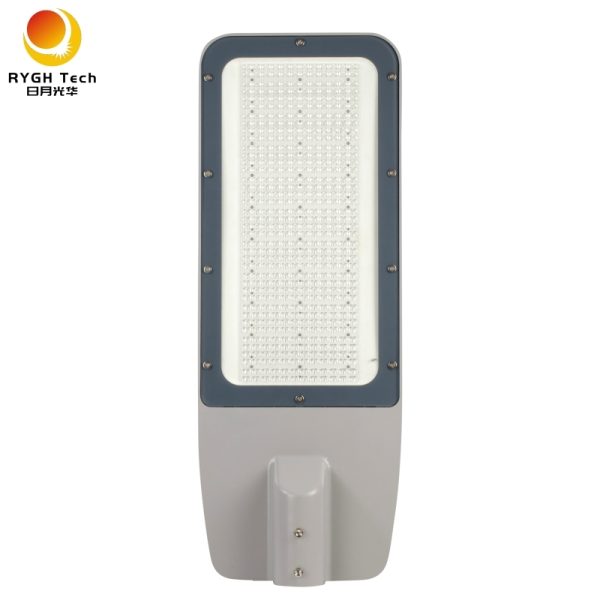

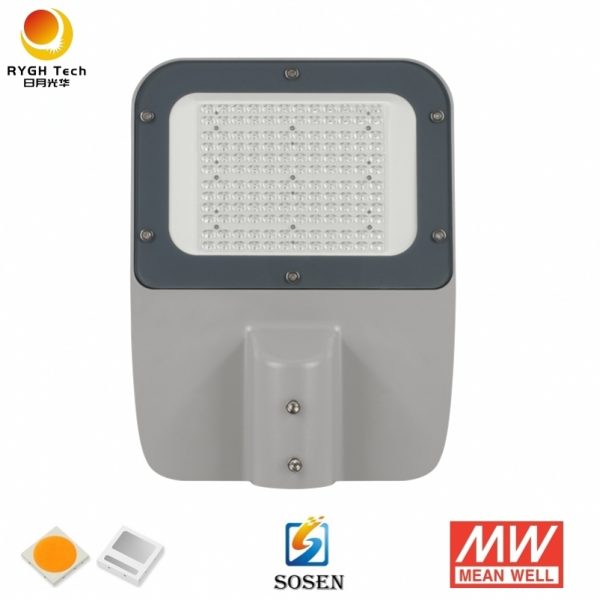

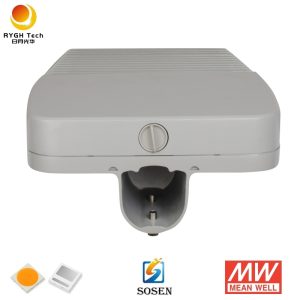

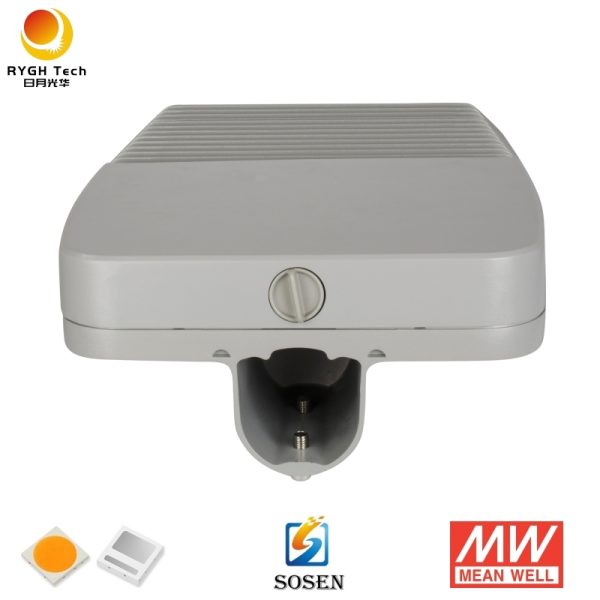

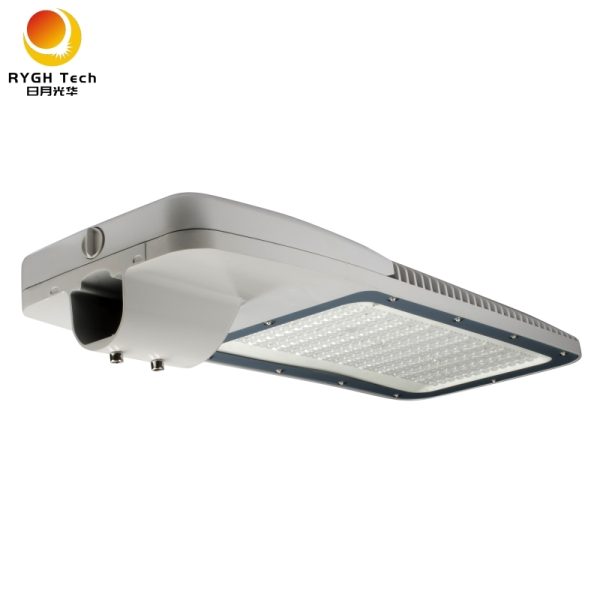

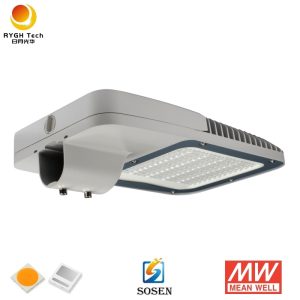

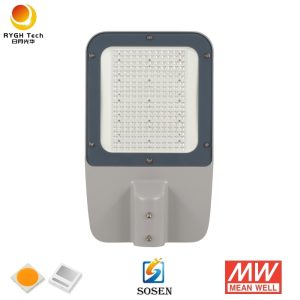

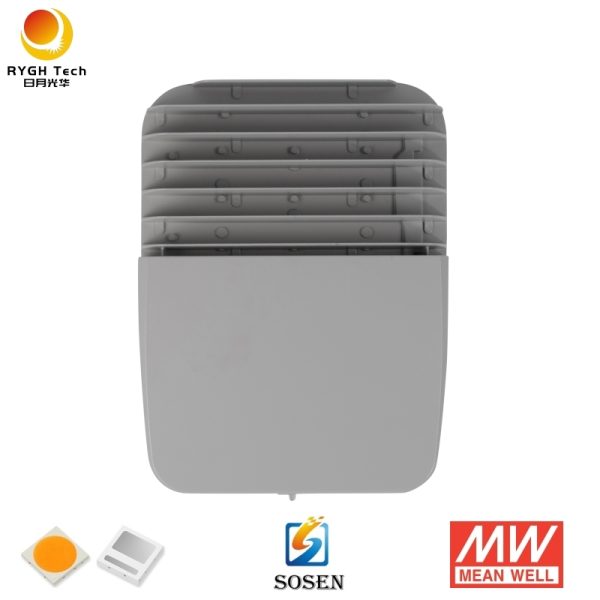

CP LED Street Light
