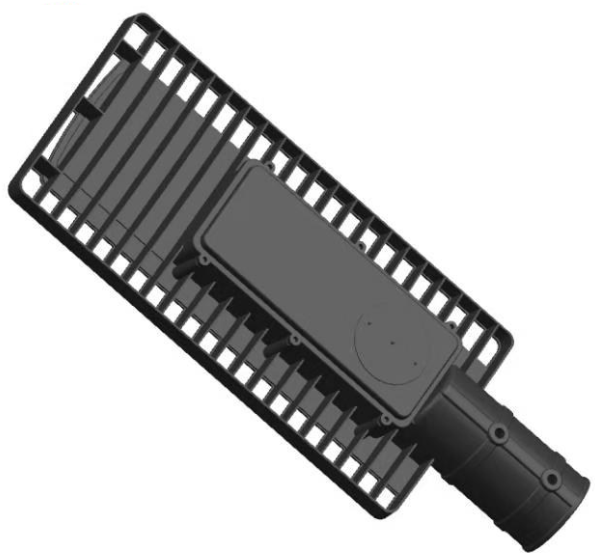

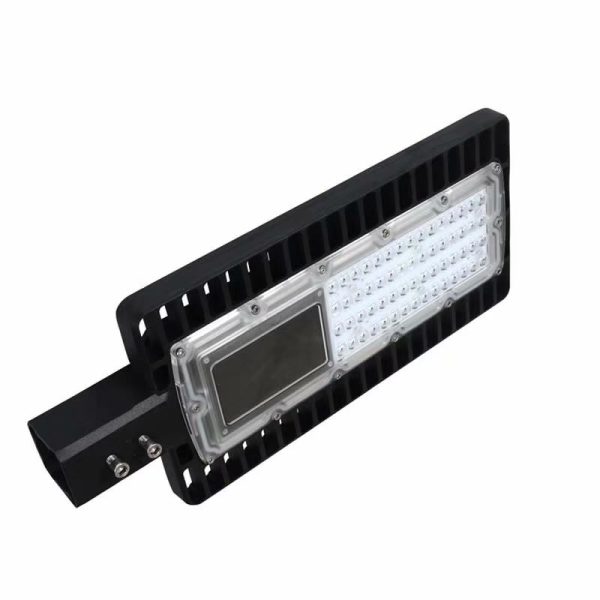

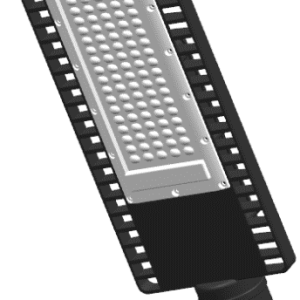

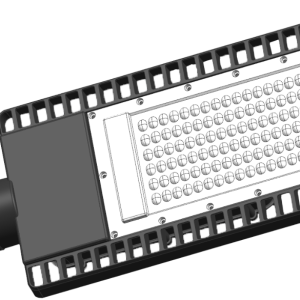

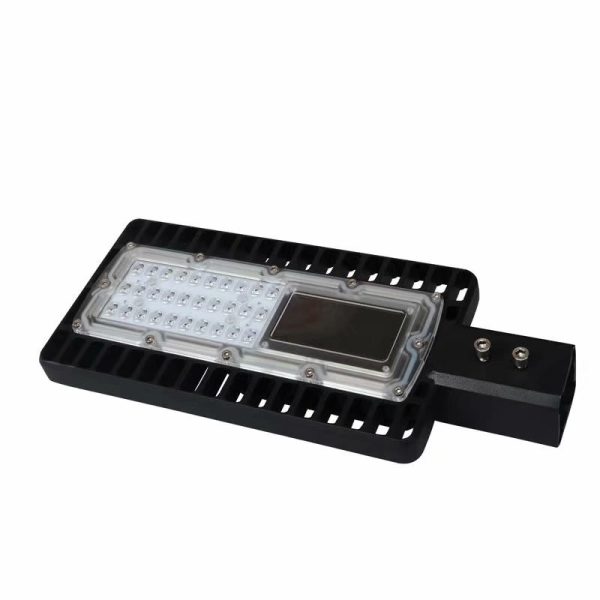

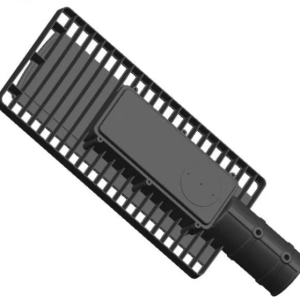

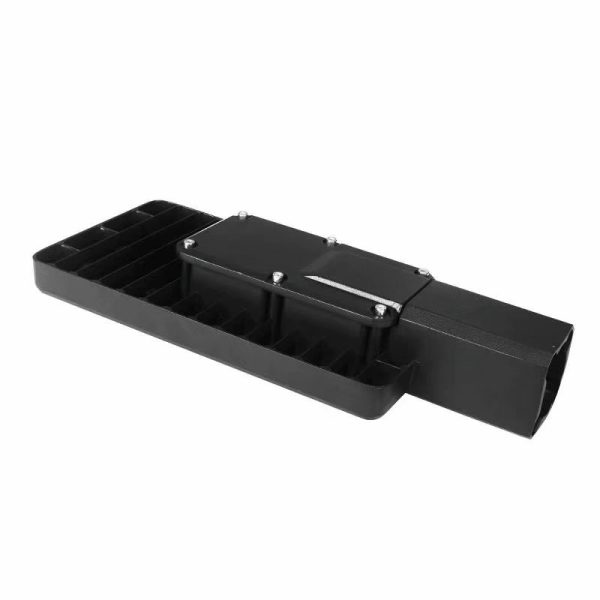

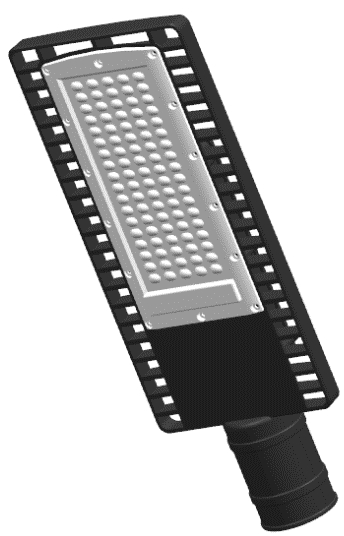

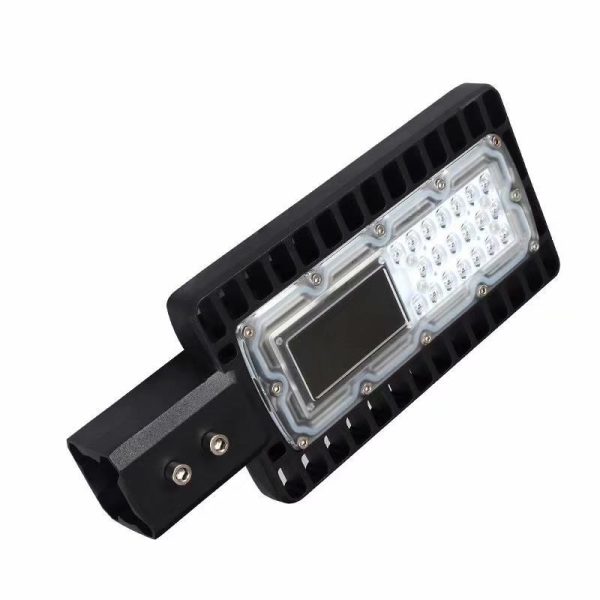

CP LED Street Light

CP Led Street Light Features: 20W | 30W | 50W
| 80W | 100W | 150W

1, Integrated die-casting AL, Excellent thermal management

2, High efficiency, 100lm/w-130lm/w

3, Dedicated lens for different road configurations

4, Lightweight housing design

5, Input voltage 85 – 265 Vac

6, Type of protection IP 65

7, Impact type of protection IK 08

Description
Reviews 0

CP Led Street Light Specifications

Item No	RYGHLD-20WCP	RYGHLD-30WCP	RYGHLD-50WCP	RYGHLD-80WCP	RYGHLD-100WCP	RYGHLD-150WCP
Lamp Size	31512876mm pipe 40mm	35114276mm pipe 40mm	40516679mm pipe 50mm	48421183mm pipe 50mm	48421183mm pipe 50mm	58024283mm pipe 50mm
Voltage	AC85V-277V 47-63Hz	AC85V-277V 47-63Hz	AC85V-277V 47-63Hz	AC85V-277V 47-63Hz	AC85V-277V 47-63Hz	AC85V-277V 47-63Hz
Power	20W	30W	50W	80W	100W	150W
LED Type	3030	3030	3030	3030	3030	3030
LED Quantity	20 Pieces	30 Pieces	60 Pieces	100 Pieces	120 Pieces	3030 180 Pieces
Color Temperature	2700-6500K	2700-6500K	2700-6500K	2700-6500K	2700-6500K	2700-6500K
Beam Angle	80°*140°	80°*140°	80°*140°	80°*140°	80°*140°	80°*140°
Color Rendering Index (CRI)	Ra>70	Ra>70	Ra>70	Ra>70	Ra>70	Ra>70
Power Supply Efﬁciency	>92%	>92%	>92%	>92%	>92%	>92%
LED Luminous Efﬁciency	110-130lm/W	110-130lm/W	110-130lm/W	110-130lm/W	110-130lm/W	110-130lm/W
Power Factor (PF)	>0.95	>0.95	>0.95	>0.95	>0.95	>0.95
Total Harmonic Distortion (THD)	≤15%	≤15%	≤15%	≤15%	≤15%	≤15%
IP Rank	IP 65	IP 65	IP 65	IP 65	IP 65	IP 65
Life time	30,000 hrs	30,000 hrs	30,000 hrs	30,000 hrs	30,000 hrs	30,000 hrs
Packing size	Box:13.57.832.5CM CTN: 564134CM	Box: 157.836CM CTN:474137.5CM	Box: 2156.58.5CM CTN:4522.558CM	52.52611.5CM	52.52611.5CM	6329.511.5CM
Pcs/ctn	20	15	10	1	1	1
Certiﬁcate	CE, Rohs	CE, Rohs	CE, Rohs	CE, Rohs	CE, Rohs	CE, Rohs
IK Rating	IK08	IK08	IK08	IK08	IK08	IK08
Warranty	3 years	3 years	3 years	3 years	3 years	3 years

Environment Requirement

Working Temperature：-35~+50℃

Storage Temperature：-35~+50℃

Working Humidity：0%~85%

Storage Humidity：0%~90%

CP Led Street Light Application:

CP Led Street Light are widely used for street, road, highway, viaduct, overpass, sidewalk, outdoor lighting places, such as squares,schools, residential areas and parks.

Warning

Please install the lamp according to the installation to avoid dropping and electric shock.
Don’t exchange the lamp as will to avoid dropping ,electric shock and damage of the lamp.
Working voltage is not to be exceeded AC100-305V 50/60Hz

Attention

Don’t install the lamp to non-stable place.
Installed by qualified electrician.
Switch off the switch box and contact certified electrician if the lamp works abnormally

Warranty

3-year warranty since the date of purchase is offered for CP street Light.

Warranty Terms

Under the terms of this warranty, if the product has a failure occurring under normal usage within warranty period, RYGH will provide free maintenance service based on the proof-documents and invoice (copy) of failure product.
RYGH will not provide paid maintenance service under conditions within warranty.
Failure or damage due to force majeure.
Failure or damage due to transport or unloading.
Failure or damage due to incorrectly usage or fail to comply with the User’s Guide and Caution.
Failure or damage due to demolition, repair, alteration without Manufacturer’s authorization.
Please deliver the failure product by original packing for maintenance service, RYGH will not be responsible for any failure or damage in transportation if customer uses non-original packing or improper packing.
RYGH reserves the right for final explanation of aforesaid terms.

Caution: RYGH will not be responsible for any other failure or damage by incorrect usage.
