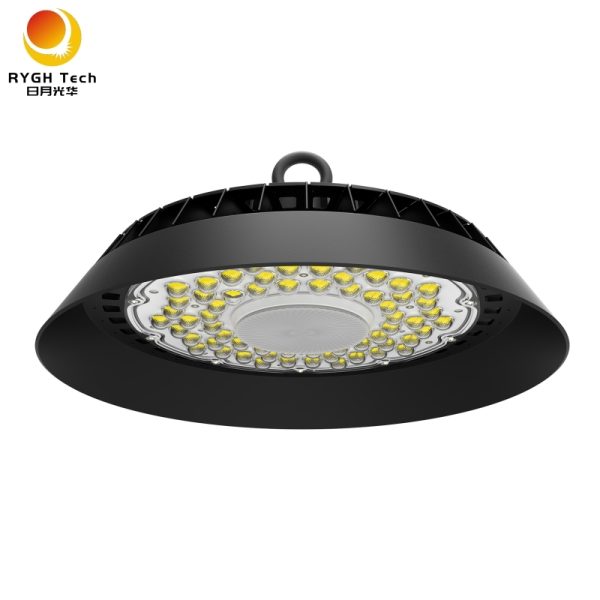

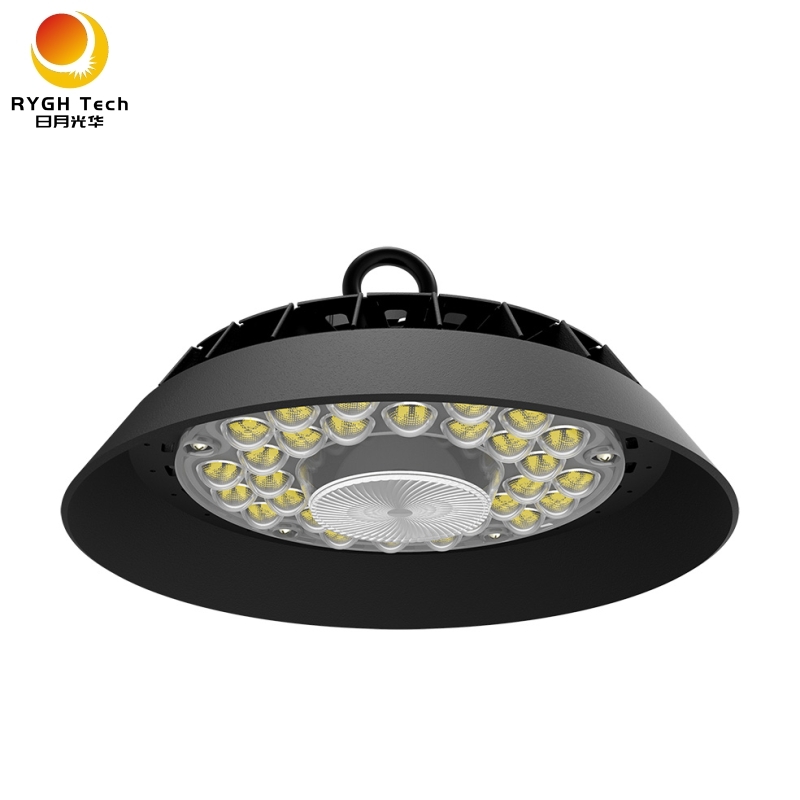

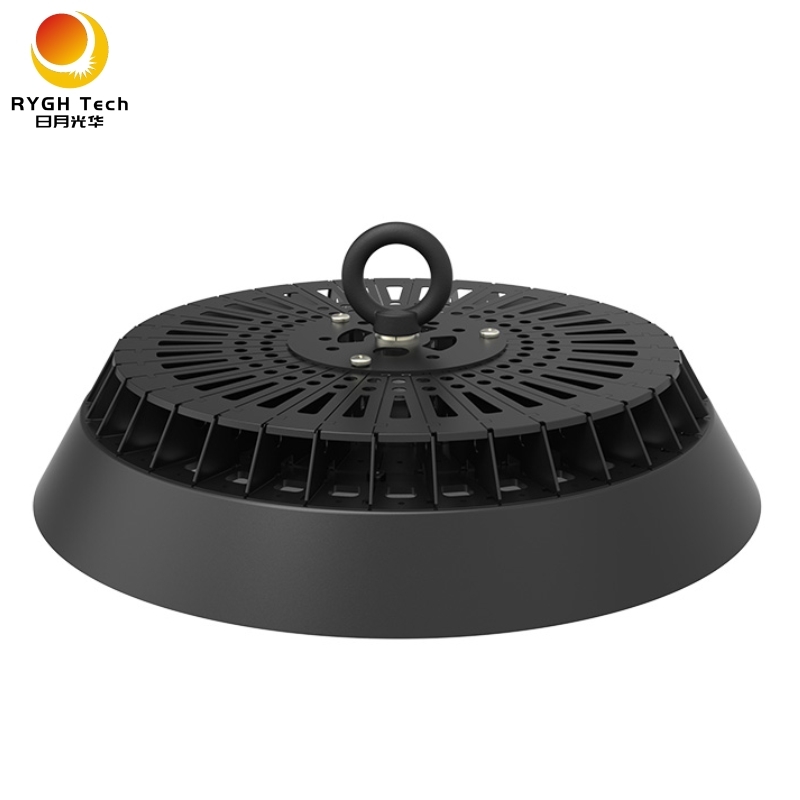

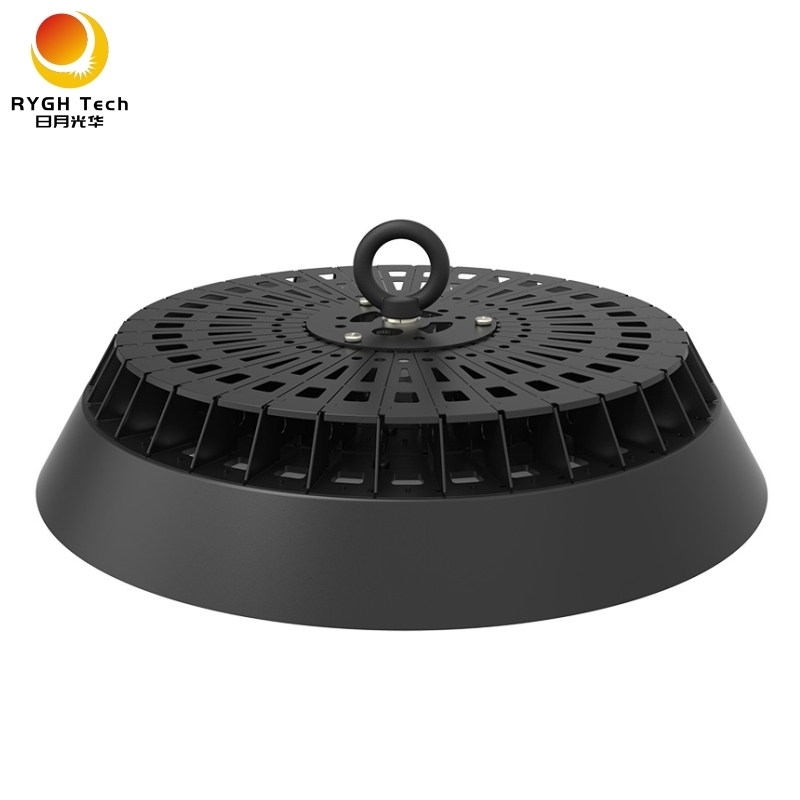

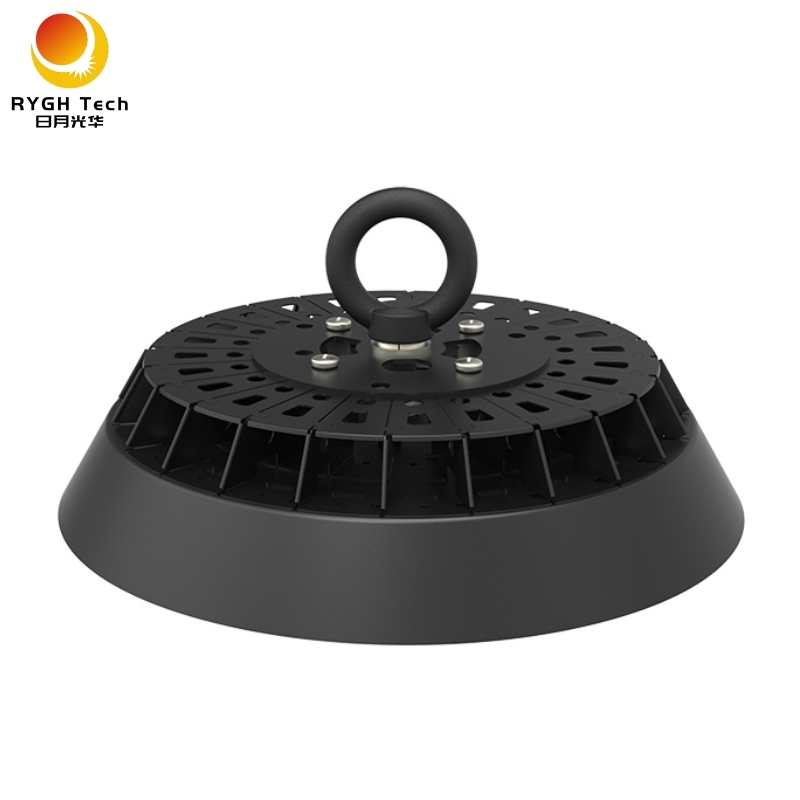

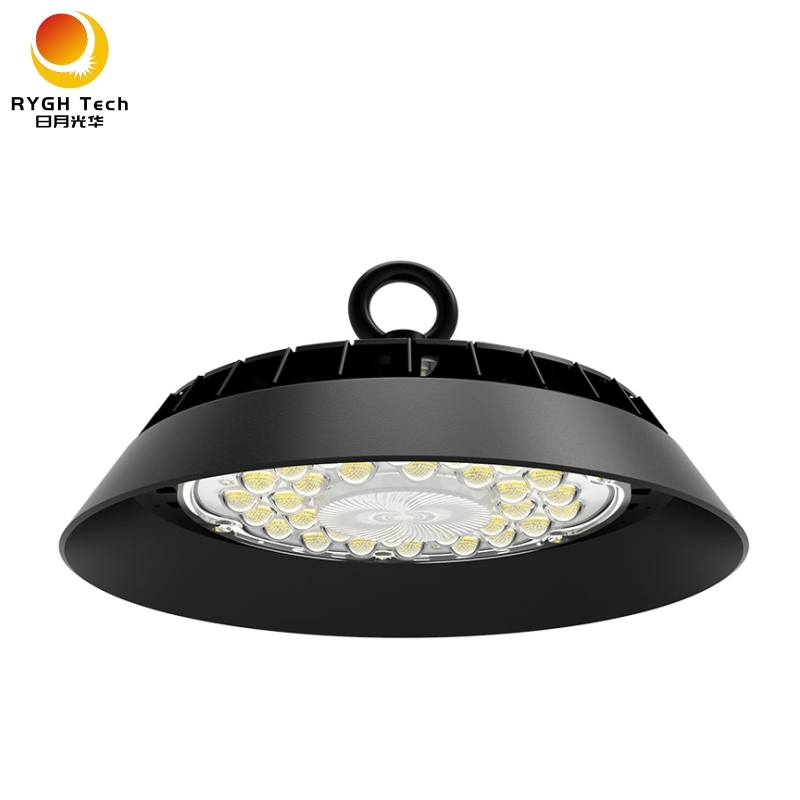

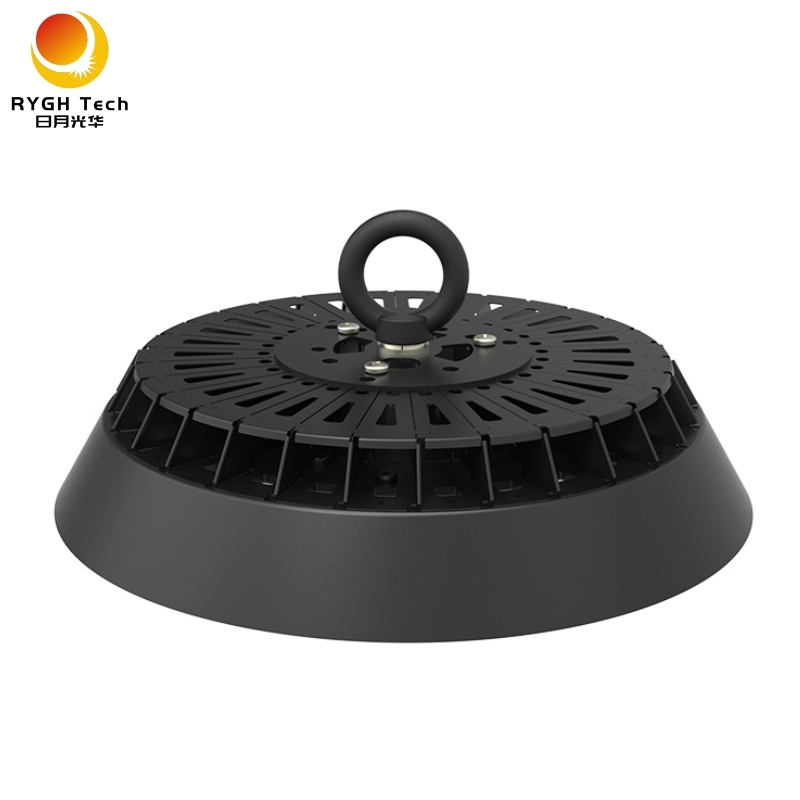

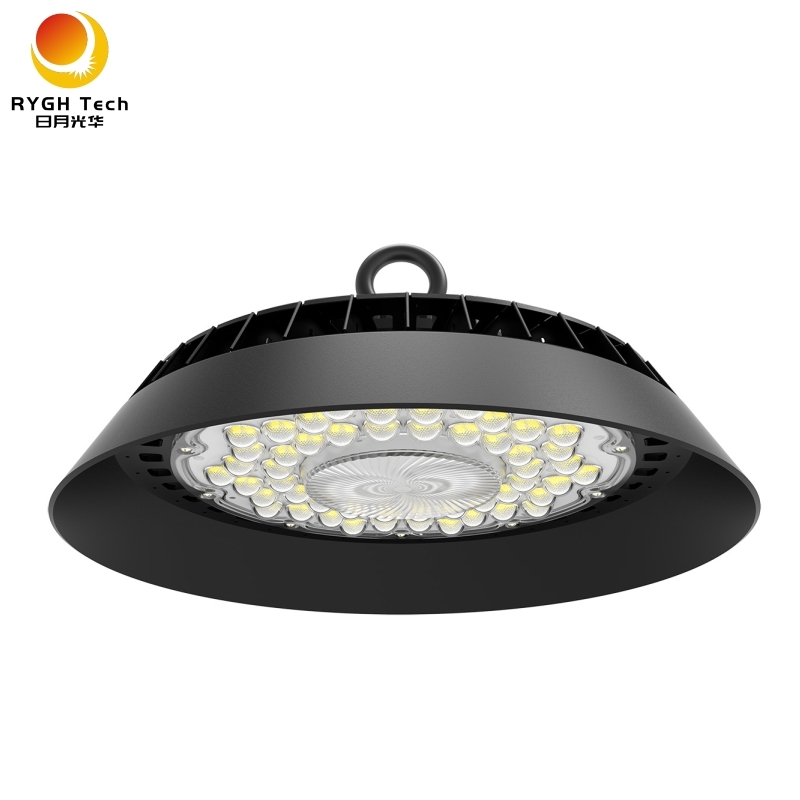

MR DOB LED High bay light

RYGH MR DOB LED High Bay Light Specifications



Model no.	RYGH-MR50W/DOB	RYGH-MR100W/DOB	RYGH-MR150W/DOB	RYGH-MR200W/DOB
Way of Install	Hanging	Hanging	Hanging	Hanging
Rated power	60 Watt	100 Watt	150 Watt	200 Watt
Input voltage	AC 180-305V, 50/60Hz	AC 180-305V, 50/60Hz	AC 180-305V, 50/60Hz	AC 180-305V, 50/60Hz
LED Chip	2835 SMD	2835 SMD	2835 SMD	2835 SMD
LED Driver	Taiwan Linear IC	Taiwan Linear IC	Taiwan Linear IC	Taiwan Linear IC
Material	AL Fin+PC	AL Fin+PC	AL Fin+PC	AL Fin+PC
CRI	70/80	70/80	70/80	70/80
Power Factor	>0.98	>0.98	>0.98	>0.98
CCT	WW, NW, CW	WW, NW, CW	WW, NW, CW	WW, NW, CW
Light efficacy	90-100LM/W	90-100LM/W	90-100LM/W	90-100LM/W
IP rating	IP20	IP20	IP20	IP20
IK rating	IK08	IK08	IK08	IK08
Operation temperature	-20~+40℃	-20~+40℃	-20~+40℃	-20~+40℃
Beam angle	60/90/120°	60/90/120°	60/90/120°	60/90/120°
Warranty	3/5 Years	3/5 Years	3/5 Years	3/5 Years
Life span	50,000 hours	50,000 hours	50,000 hours	50,000 hours
Dimension	Φ230*H53mm	Φ270*H58mm	Φ330*H68mm	Φ380*H77mm
Packing quantity	2 pieces/CTN	2 pieces/CTN	2 pieces/CTN	2 pieces/CTN
Net Weight	0.6KG	0.8KG	1.0KG	1.4KG
Gross Weight	1.5KG	3.0KG	5.2KG	9.5KG
Packing size	L260*W260*H155mm	L330*W330*H180mm	L370*W370*H190mm	L420*W420*H220mm
Certificate	CE, RoHs	CE, RoHs	CE, RoHs	CE, RoHs

RYGH MR DOB LED High Bay Light Features:

1, Our engineer has 15 years experience in led lighting field

2, 6 years focus on AC linear led lighting

3, 3nd Generation Linear IC from Top Taiwan Team-Vendor of AURORA Lighting

4, Driverless led lighting already worked 4-5 years all over the world, failure rate <0.5%, you can sleep well at night because very few complaints

5, Working voltage max 300V, other company max 265V

6, With Over voltage protection, over temperature protection, short circuit protection, over load protection

7, Pass Safety Certification, EMC/EMI

8, 4KVA Surge Protection on board, 6KVA and 10KVA SPD available

9, 3-5 years warranty,

10, Can be work in harsh environment from minus 30 degrees to 50 degrees

11, High voltage, low working current, no capacitor, no shocking current when turning on, very few interference on power grid, low temperature on power lines

12, Easy for maintenance, easy to change a DOB if failed

13, 99.9% solid components, life time 100, 000 hours, much longer life time than LED

14,much higher cost performance than MEANWELL driver, lumileds and OSRAM Chip warranty 5 years

15, No spark when switching, , which can be used as explosion proof lighting

16, We know and protect our product like our child, and vitnessed the change and improvement of our product in last 6 years

17, We insist on updating our DOB Technology

18, Best SKD solution, you do not need engineer but only need to solder the cable as well as a screw driver

19, AL1070 aluminum fin heat dissipation material

20, Fin internal riveting interconnect technology, easy to maintain and package；

21, Surface electrophoretic paint protection；

22, Beam angle:60°/90°/120°

23, CE certification

24, L70B50>30000Hrs

Environment Requirement

Working Temperature：-20~+40℃

Storage Temperature：-25~+70℃

Working Humidity：20%~90%

Storage Humidity：20%~90%

RYGH MR DOB LED High Bay Light Application:

RYGH MR DOB LED High Bay Light can be widely applied in Warehouse, Factory, Workshop, Plant, Supermarket, Gas Station, Highway Toll Station, Food Factories, Livestock Farms etc.

Warning

1. Please install the lamp according to the installation to avoid dropping and electric shock.
2. Don’t exchange the lamp as will to avoid dropping ,electric shock and damage of the lamp.
3. Working voltage is not to be exceeded AC180-305V 50/60Hz

Attention

1. Don’t install the lamp to non-stable place.
2. Installed by qualified electrician.
3. Switch off the switch box and contact certified electrician if the lamp works abnormally

Warranty

3/5-year warranty since the date of purchase is offered for all bay Lights.

Warranty Terms

1. Under the terms of this warranty, if the product has a failure occurring under normal usage within warranty period, RYGH will provide free maintenance service based on the proof-documents and invoice (copy) of failure product.
2. RYGH will not provide paid maintenance service under conditions within warranty.
3. Failure or damage due to force majeure.
4. Failure or damage due to transport or unloading.
5. Failure or damage due to incorrectly usage or fail to comply with the User’s Guide and Caution.
6. Failure or damage due to demolition, repair, alteration without Manufacturer’s authorization.
7. Please deliver the failure product by original packing for maintenance service, RYGH will not be responsible for any failure or damage in transportation if customer uses non-original packing or improper packing.
8. RYGH reserves the right for final explanation of aforesaid terms.

Caution: RYGH will not be responsible for any other failure or damage by incorrect usage.
