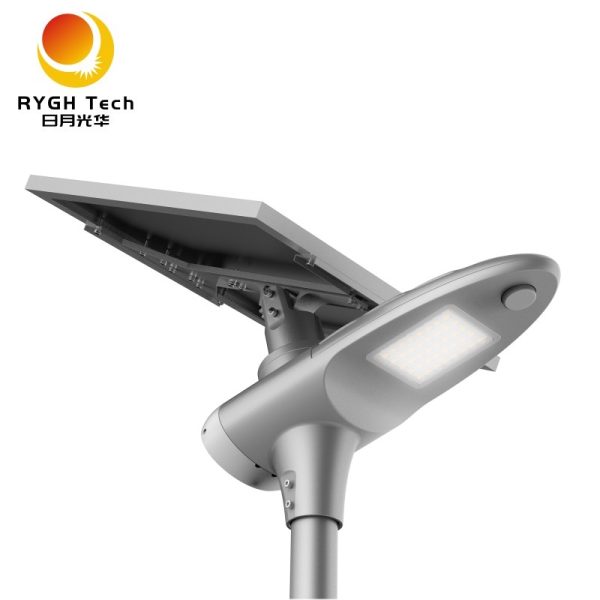

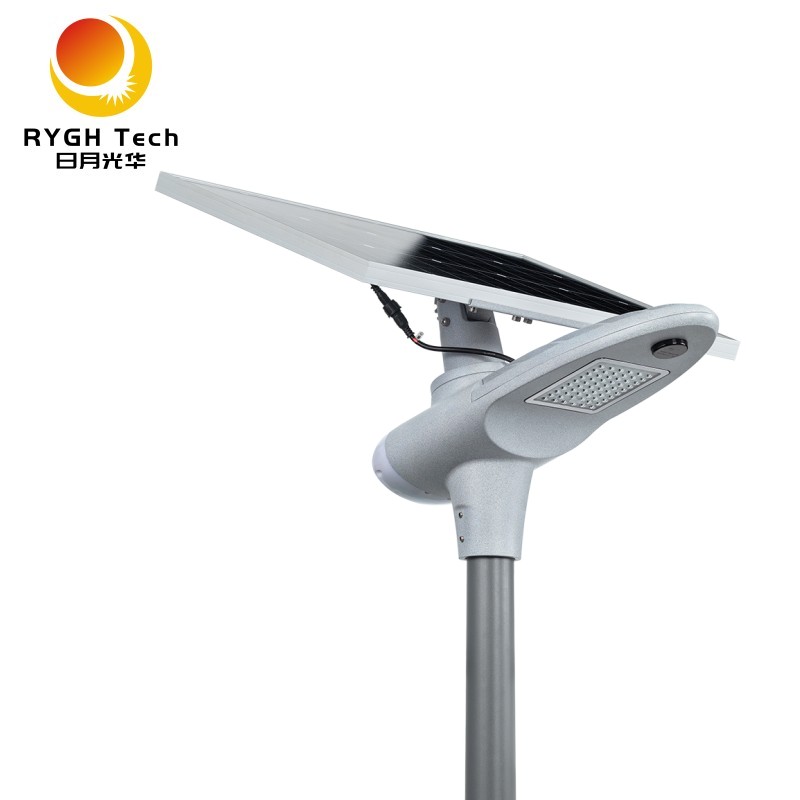

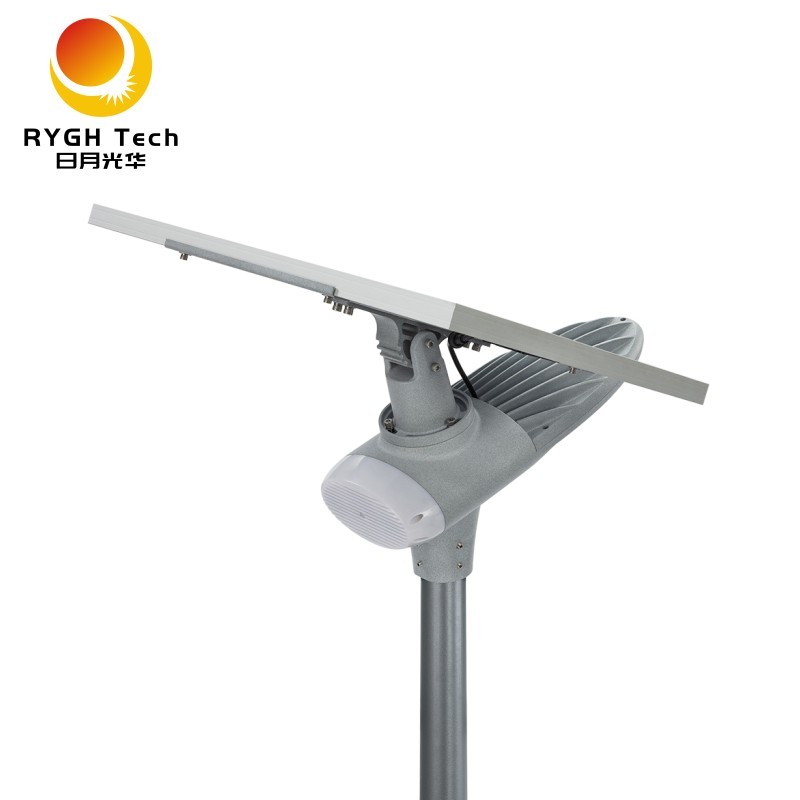

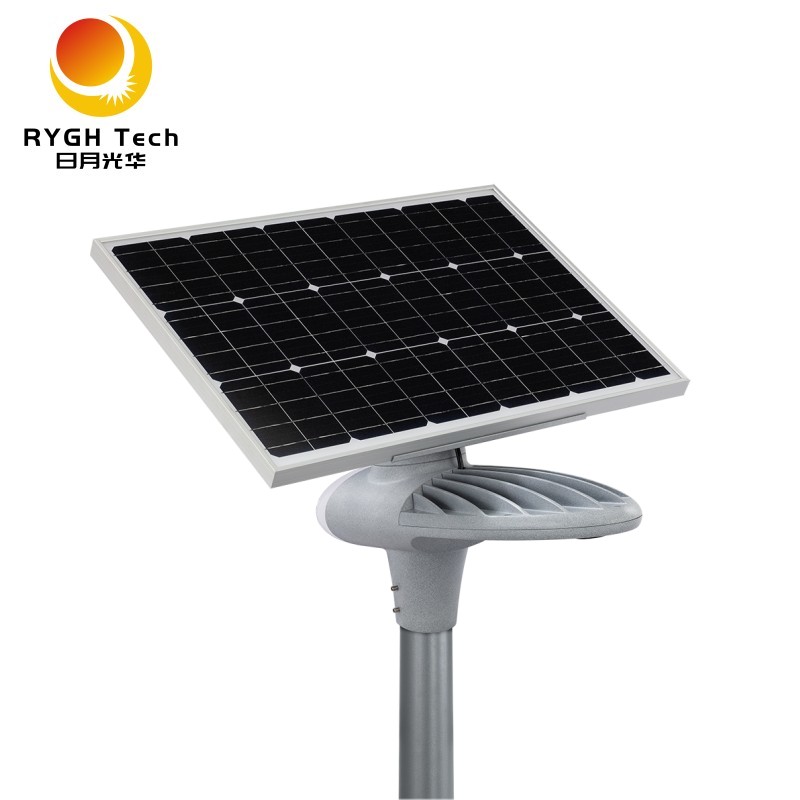

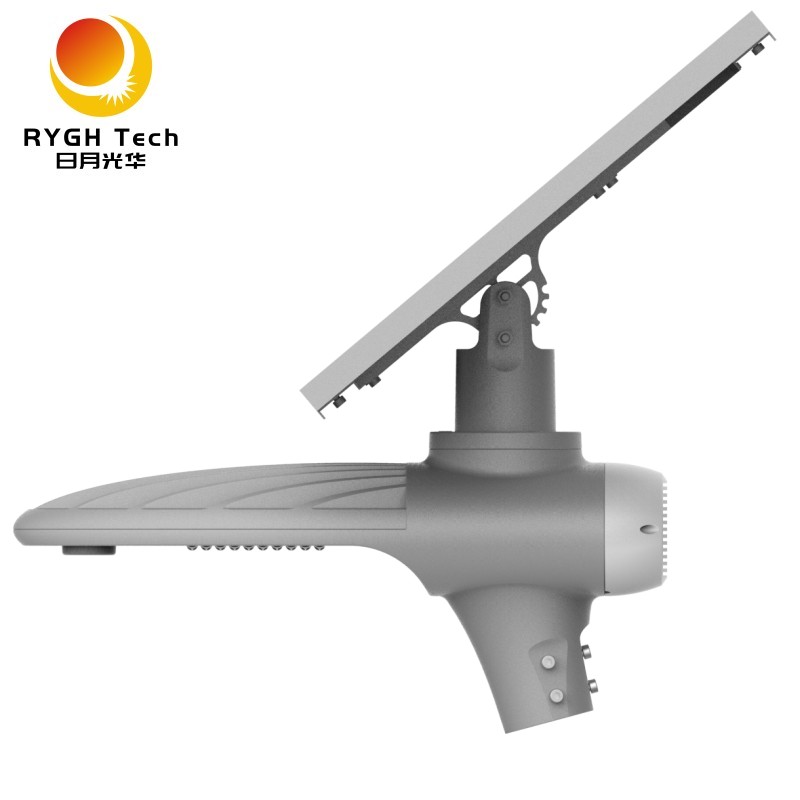

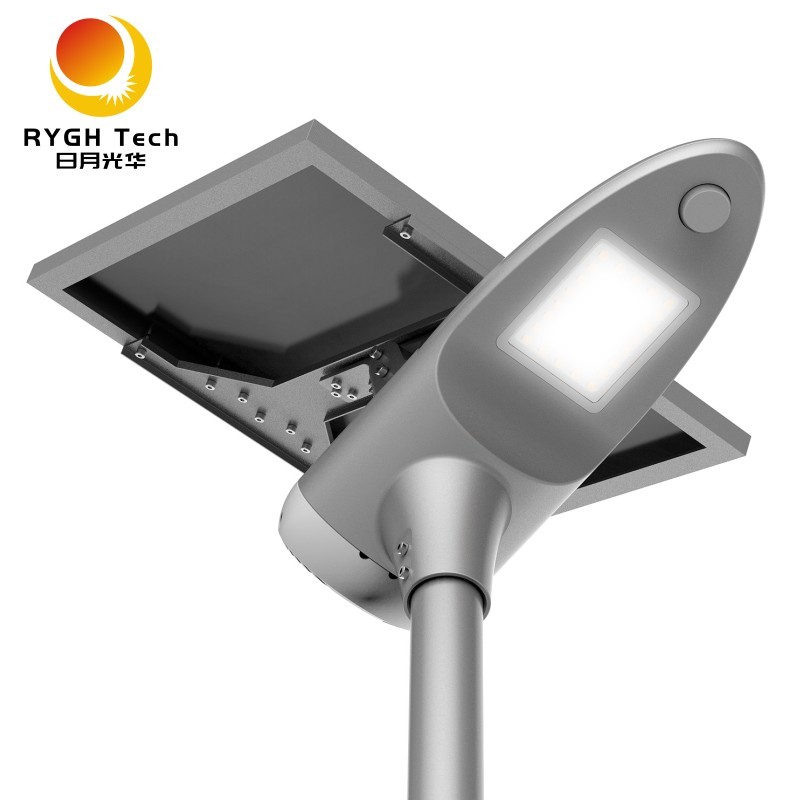

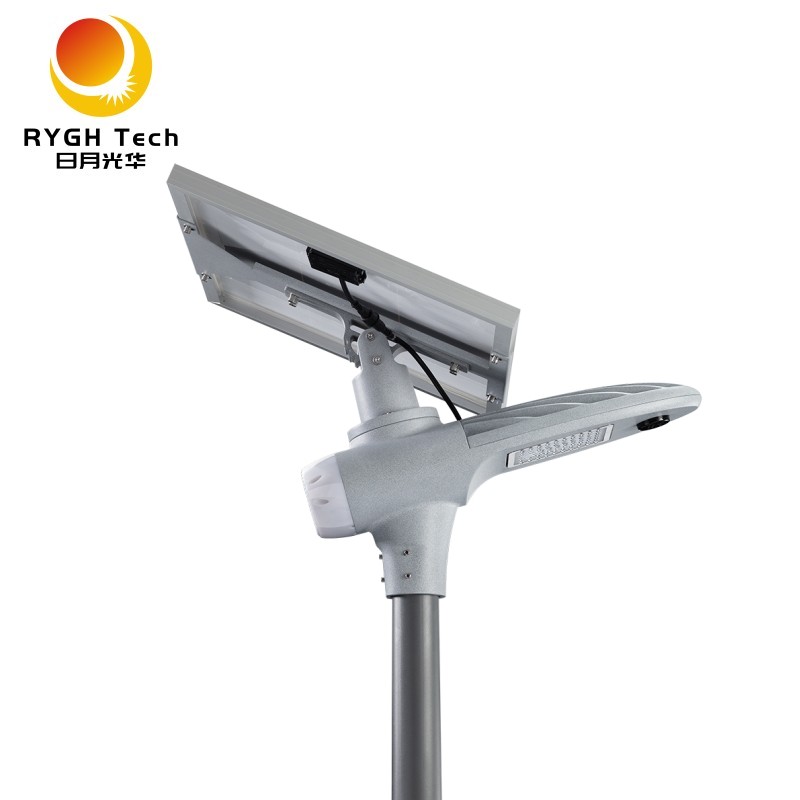

N Series Solar led street light

N Series Solar Led Street Light Features: 4000lm | 5000lm | 6000lm
8000lm | 10000lm | 12000lm

1.New Lifepo4 battery, mono solar panel 18V, original Bridgelux 5050 chips.

2.Colorful flashlight on lamp as decoration lamp, can turn on / off this function at will.

3.Solar panel separated, installation directions and the capacity of solar panel can change at will.

4.Stable microwave sensor, longer detect distance

5.140°wide lighting angle, bring same lighting results with shorter pole

6.Easier to maintenance than other model, change battery just need 1 min.

7.Constant current discharge stable lighting + Night sensor + Microwave motion sensor + Time Controller（6,8,10,12hrs for choose)+ Remoter.

8.Best Materials- Aluminum alloy and outdoor PC + Thick leaf heat sink + complete-plate-made support= Strong + Best Heat dissipation.

Description
Reviews 0

N Series Solar Led Street Light Description：

Second-generation integrated solar street lamp use imported high-efficiency mono-crystalline silicon solar panel, smart MPPT controller, deep cycle lithium battery, high-efficiency led chip, all in one box Integrated design, Easy to install and use, have Microwave induction and RGB flashlight design, multi-function lighting.

N Series Solar Led Street Light Technical Parameters：

Model No.	RYGH-4000LM	RYGH-5000LM	RYGH-6000LM	RYGH-8000LM	RYGH-10000LM	RYGH-12000LM
Product size	*598230261mm*	*598230261mm*	*598230261mm*	*598230261mm*	*598230261mm*	*598230261mm*
LED Quantity	40 pcs	40 pcs	40 pcs	60 pcs	60 pcs	60 pcs
Chip	Bridgelux 3030	Bridgelux 3030	Bridgelux 3030	Bridgelux 5050	Bridgelux 5050	Bridgelux 5050
Mono Solar Panel	18V50W	18V65W	18V 65W	18V100W	18V130W	18V160W
LifePO4 Battery	24AH 11.1V	28AH 11.1V	12.8V 30AH	42AH 11.1V	50AH 11.1V	63AH 11.1V
Color Temperature	2700K-6500K
Brightness	4000LM	5000LM	6000LM	8000LM	10000LM	12000LM
Working Time	Lighting 12 hours/day，support 10 rainy and cloudy days（with motion sensor）
Charging Time	4-5hours（bright sunshine）
IP Rating	IP67
Mounting Height	4-6m	5-7m	6-8m	7-9m	8-12m	9-12m
Space between 2 lamps	10-20m	15-25m	20-30m	20-30m	25-35m	30-40m
Lamp pole diameter	60-65mm	60-65mm	60-65mm	60-65mm	60-65mm	60-65mm
Warranty	3 years
Lamp Package Size	690340300MM	690340300MM	690340300MM	690340300MM	690340300MM	690340300MM
Solar Panel Package Size	75058080MM	82058080MM	109058080MM	129058080MM	154058080MM	183058080MM
Gross Weight	12KG	12.3KG	12.5KG	13KG	14KG	15KG
Solar Panel Gross Weight	6.3KG	7.2KG	9KG	11KG	13.2KG	15.8KG

Inductive head	LED Indicator status	Function
	Red（blinking）	Charging
	Red （bright）	full charge
	Blue（off）	out of battery
	Green （bright）	normal work

Environment Requirement

Working Temperature：-25~+65℃

Storage Temperature：-25~+65℃

Working Humidity：0%~85%

Storage Humidity：0%~90%

N Series Solar Led Street Light Application:

N Series Solar Led Street Light are widely used in branch roads, streets, and factory roads, parks, villages, mountains and remote areas, lighting projects, courtyards, schools,plaza and other places that require outdoor lighting,Helping domestic traditional lighting upgrade to LED green new energy lighting.

Warning

1.When installing solar panels can adjust the optimal light acceptance angle according to the situation in the area. Installing the components, try to handle them gently. Do not collide or knock them to avoid damage.

2.Choose an unobstructed place to install the solar panel,dust must be cleaned regularly。

3.All the screws used to install the lamp must be fastened and on the lock nut, should be no loosening.

4.Because the lighting time and power are set according to the factory specifications, if lighting time needs to be adjusted, must be notified before place and order.

5.When repairing or replacing light source, lithium battery, controller, model, power, must be the same as the original configuration,we don’t suggest replace the light source with different power models,lithium battery box , controller or casual non-professionals to replace and adjust lighting time parameters.

6.Replacing internal components, wiring must be strictly in accordance with the corresponding wiring diagram.the positive and negative poles are clearly separated and reversed.

Warranty

3-year warranty since the date of purchase is offered for all solar led street Light.

Warranty Terms

Under the terms of this warranty, if the product has a failure occurring under normal usage within warranty period, RYGH will provide free maintenance service based on the proof-documents and invoice (copy) of failure product.
RYGH will not provide paid maintenance service under conditions within warranty.
Failure or damage due to force majeure.
Failure or damage due to transport.
Failure or damage due to incorrectly usage or fail to comply with the User’s Guide and Caution.
Failure or damage due to demolition, repair, alteration without Manufacturer’s authorization.
Please deliver the failure product by original packing for maintenance service, RYGH will not be responsible for any failure or damage in transportation if customer uses non-original packing or improper packing.
RYGH reserves the right for final explanation of aforesaid terms.

Caution: RYGH will not be responsible for any other failure or damage by incorrect usage.
