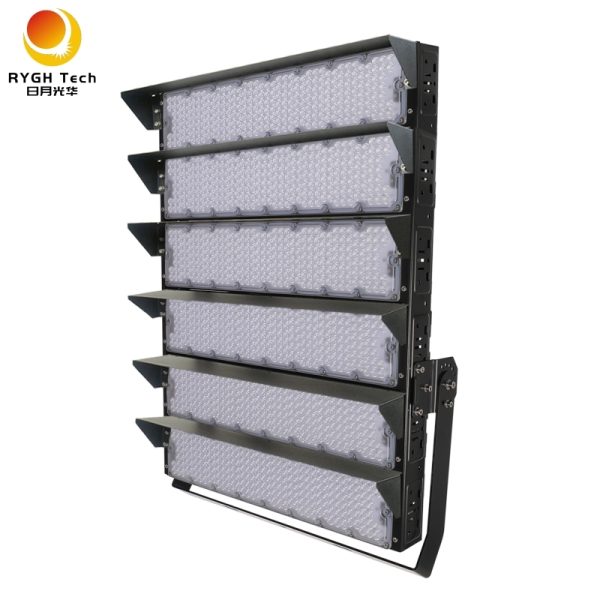

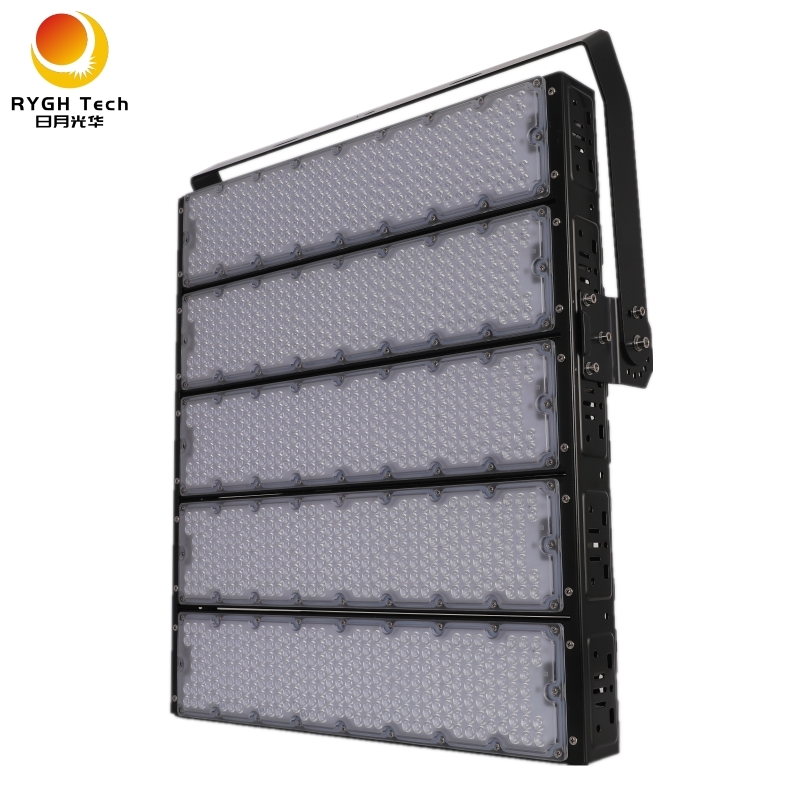

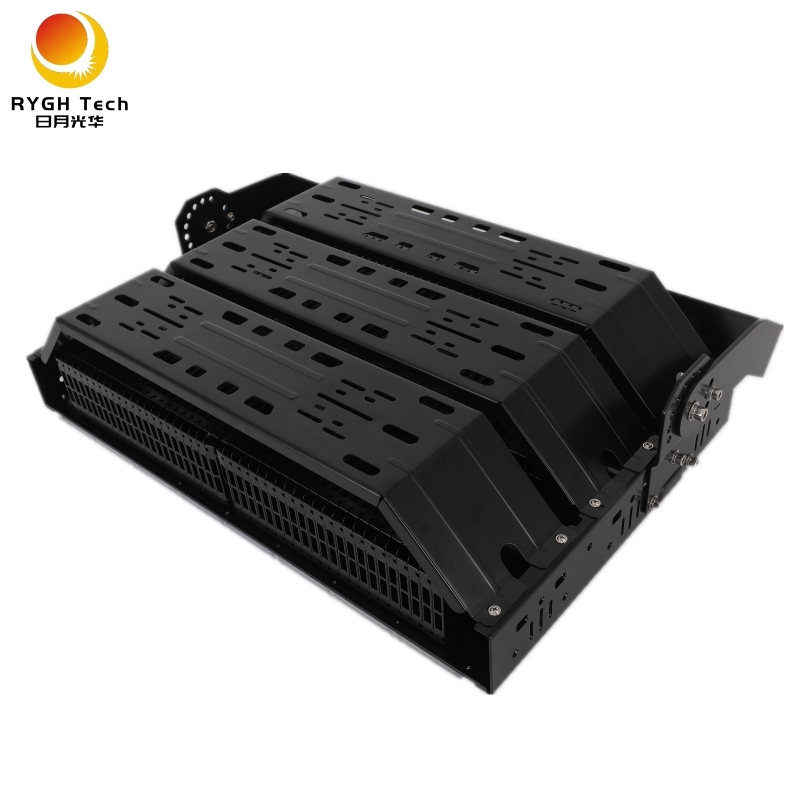

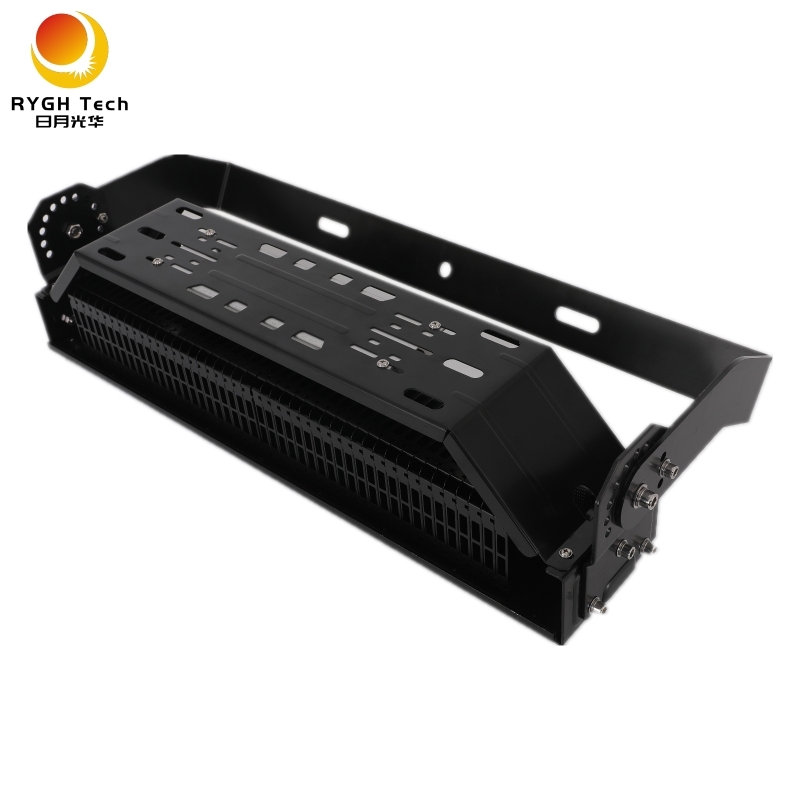

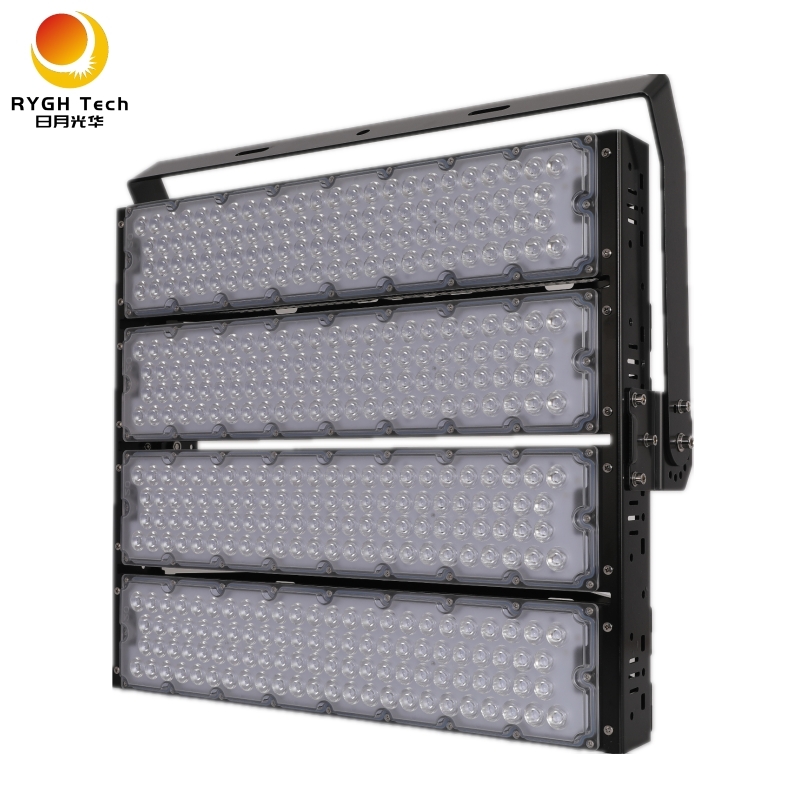

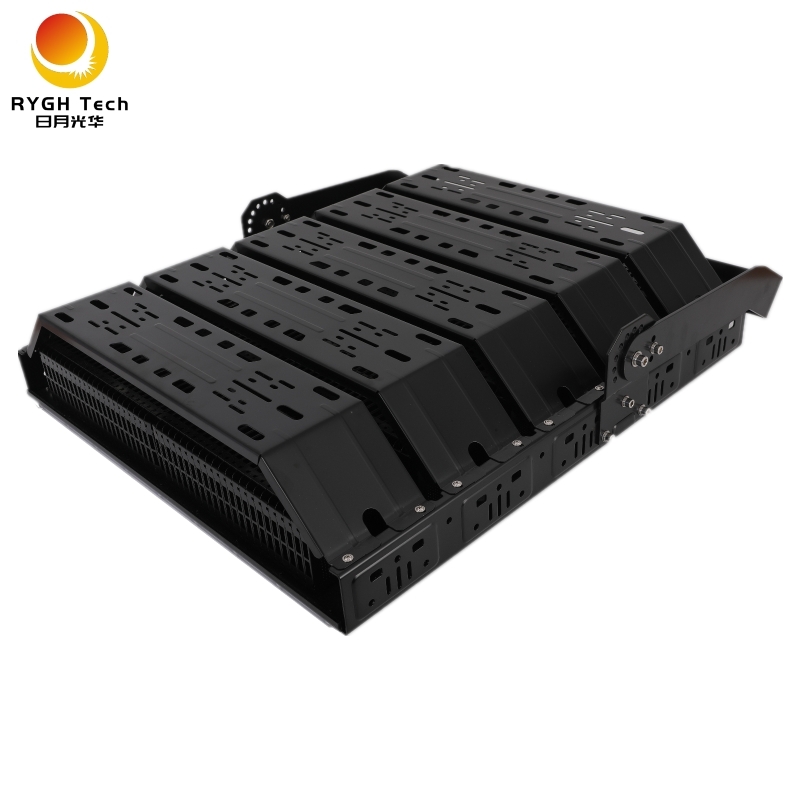

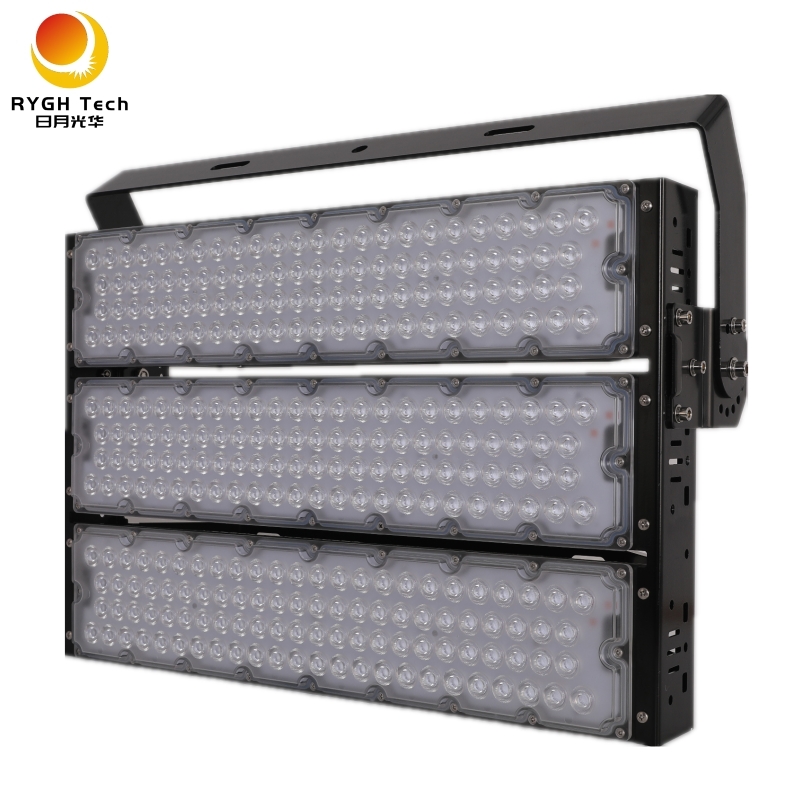

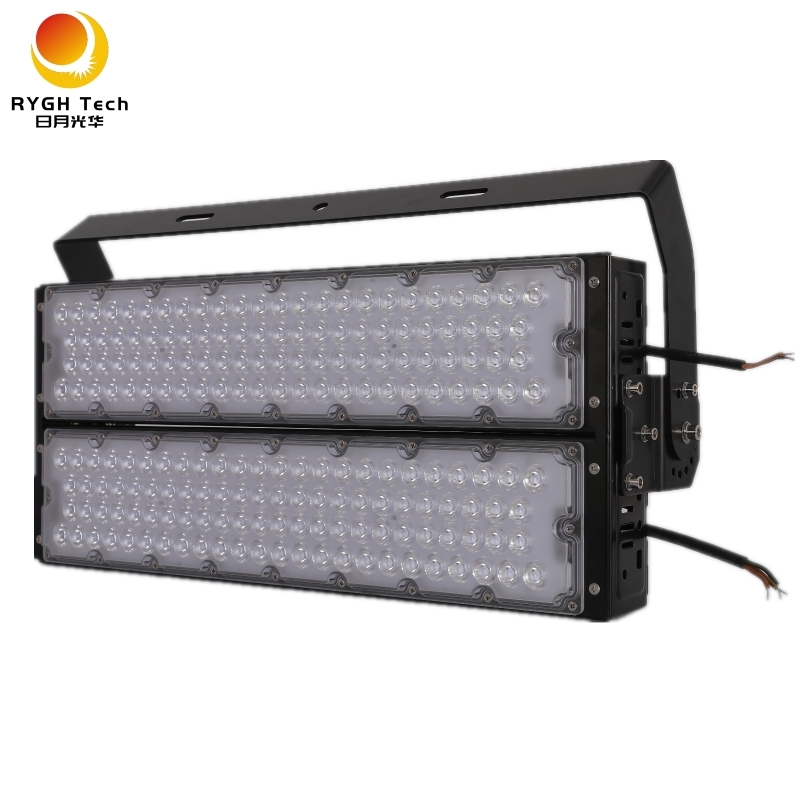

QCA Series LED Stadium Light

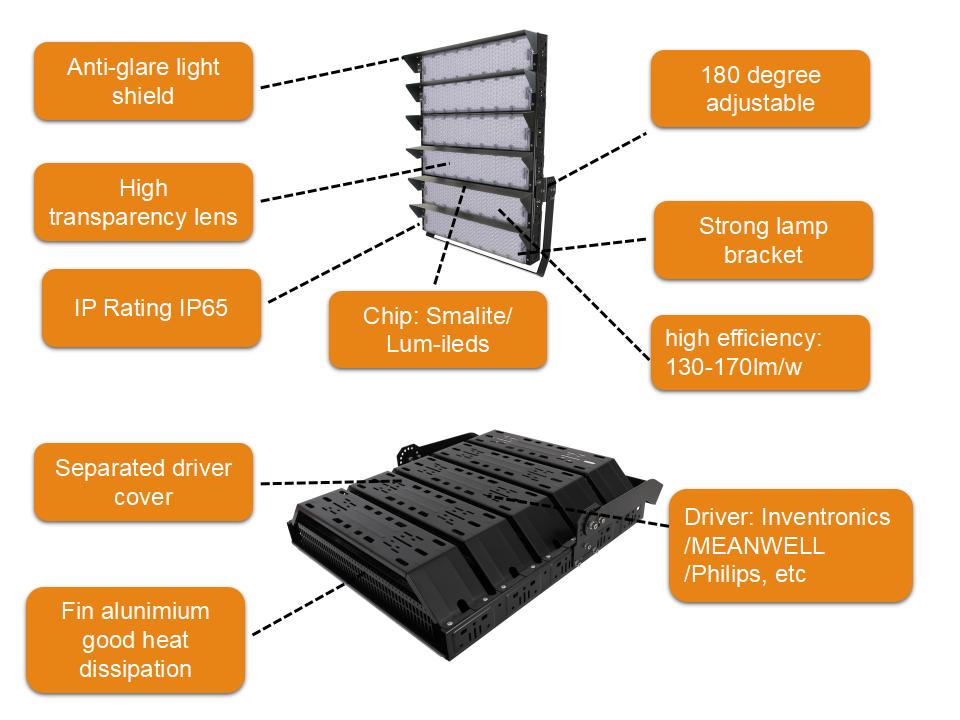

QCA Series LED Stadium Light Features:

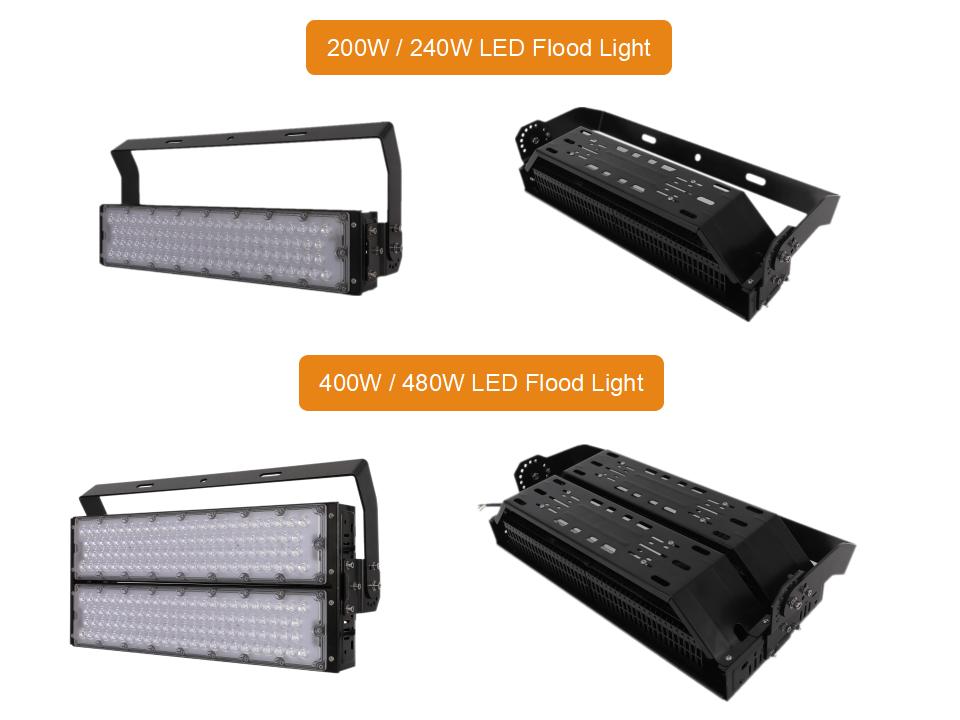

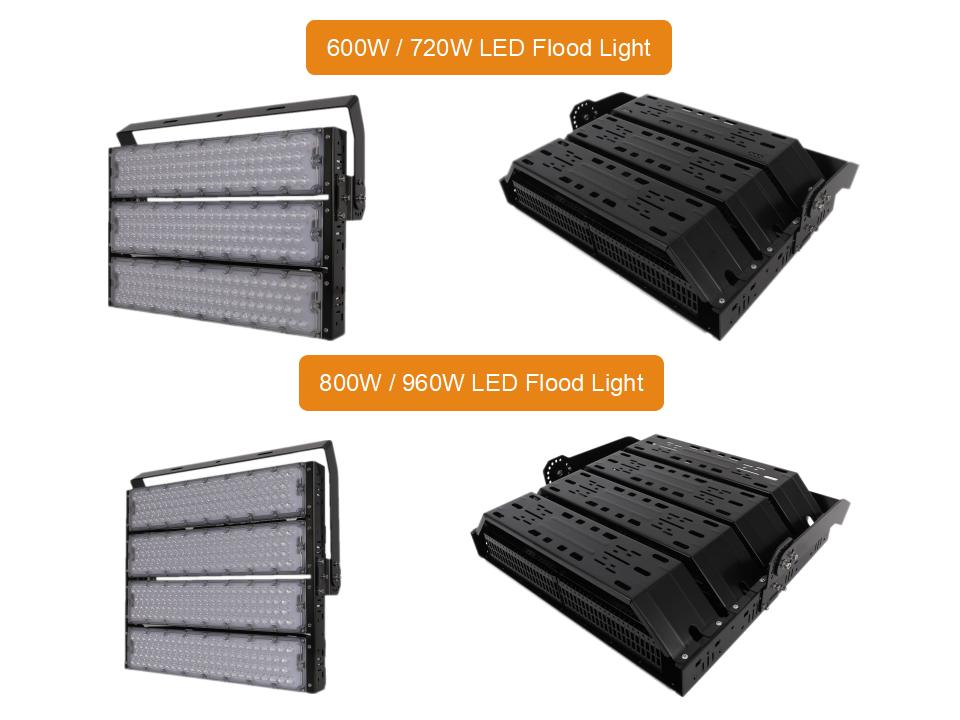

Power: 200W | 240W | 400W | 480W | 600W | 720W
800W | 960W | 1000W | 1200W | 1440W

Beam angle: 3030: 20°, 40°| 5050: 30°, 60°

1, LEDs froms Philips/Smalite/Tiandian SMD with high thermal conductivity, good heat-radiation, small light decay, pure light, no ghosting, stable performance and quality advantages.

2, Unique thermal management design low LED junction temperature effectively, ensure the lifespan of the light source and power.

3, Inventronics/MEANWELL/Sosen drivers

4, High efficiency up to 160lm/w

5, Input voltage: AC 85-305V, 50/60Hz / AC 347-480V, 50/60Hz optional

Description
Reviews 0

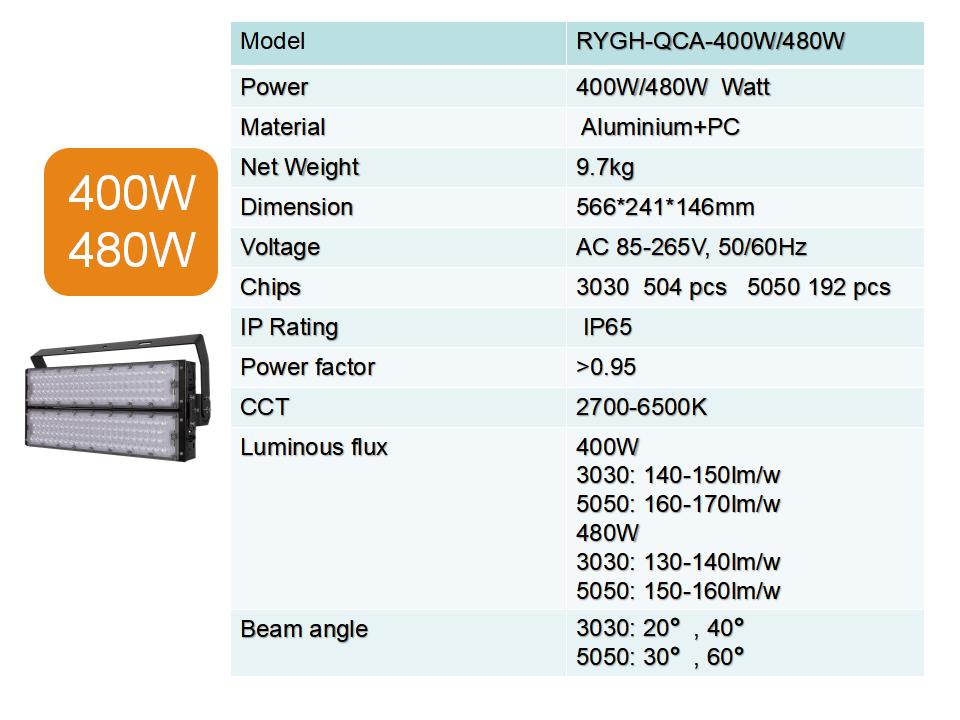

QCA Series LED Stadium Light Specifications

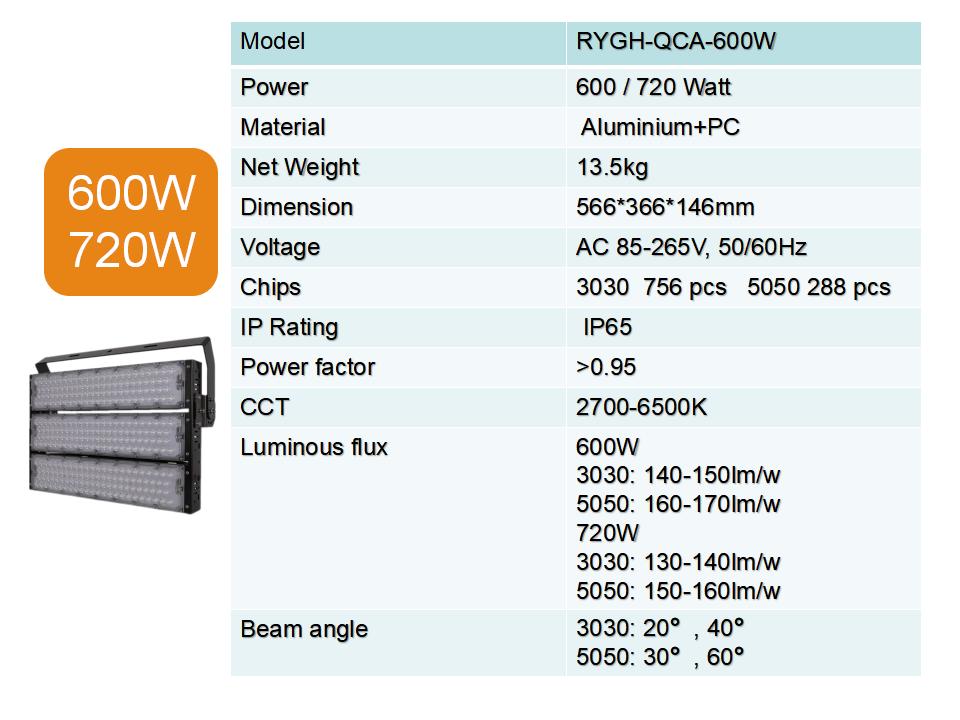

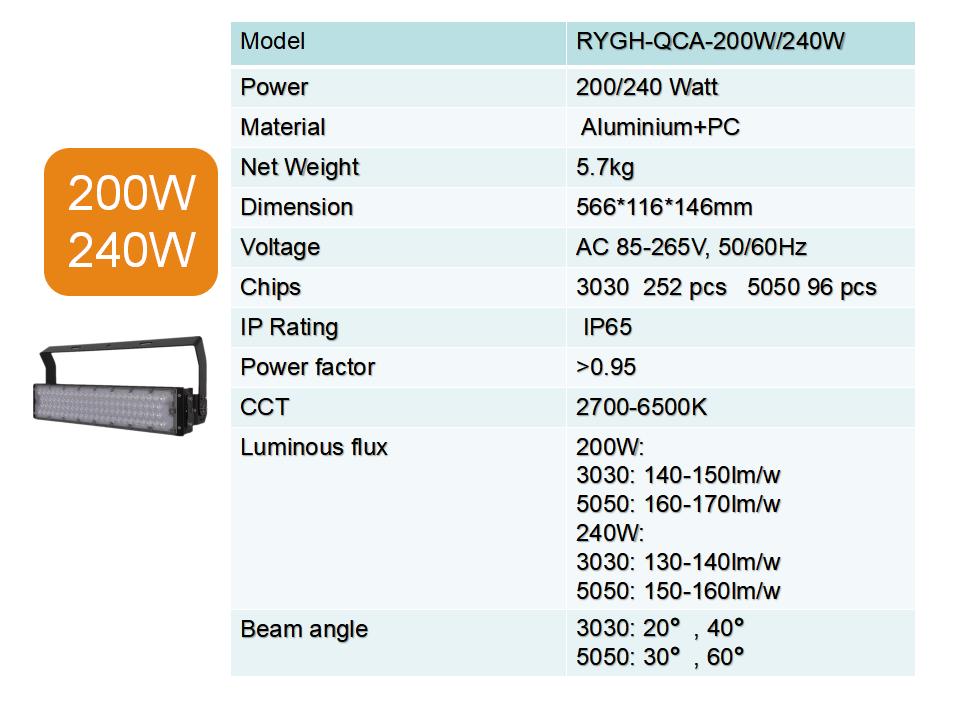

Model no.	RYGH-QCA-200W	RYGH-QCA-240W	RYGH-QCA-400W	RYGH-QCA-480W	RYGH-QCA-600W	RYGH-QCA-720W
Rated power	200 Watt	240 Watt	400 Watt	480 Watt	600 Watt	720 Watt
Input voltage	AC 85-305V, 50/60Hz / AC 347-480V, 50/60Hz

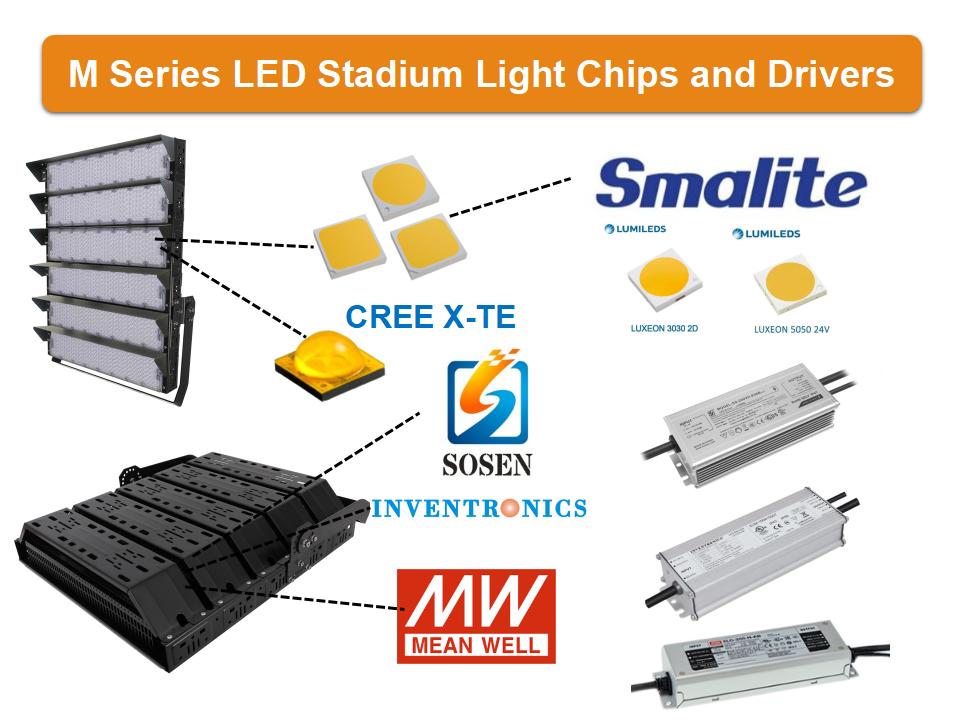

LED Chip	Philips/Tiandian/Smalite
LED Driver	INVENTRONICS/MEANWELL/Philips/Sosen/Happsky
Material	AL+PC
CRI	70 or 80
Power Factor	>0.95
CCT	WW, NW, CW
Light efficiency	3030: 140-150lm/w 5050: 160-170lm/w	3030: 130-140lm/w 5050: 150-160lm/w	3030: 140-150lm/w 5050: 160-170lm/w	3030: 130-140lm/w 5050: 150-160lm/w	3030: 140-150lm/w 5050: 160-170lm/w	3030: 130-140lm/w 5050: 150-160lm/w
IP rating	IP65
IK rating	IK08
Operation temperature	-40~+65℃
Beam angle	3030: 20°, 40° 5050: 30°, 60°
Warranty	5 Years
Life span	50,000 hours

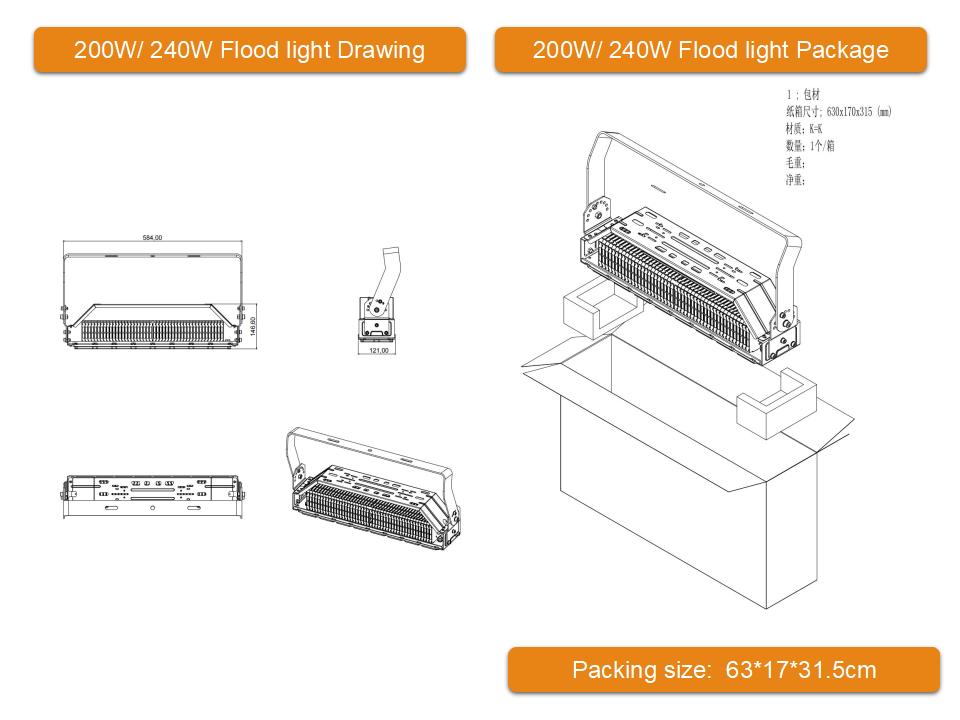

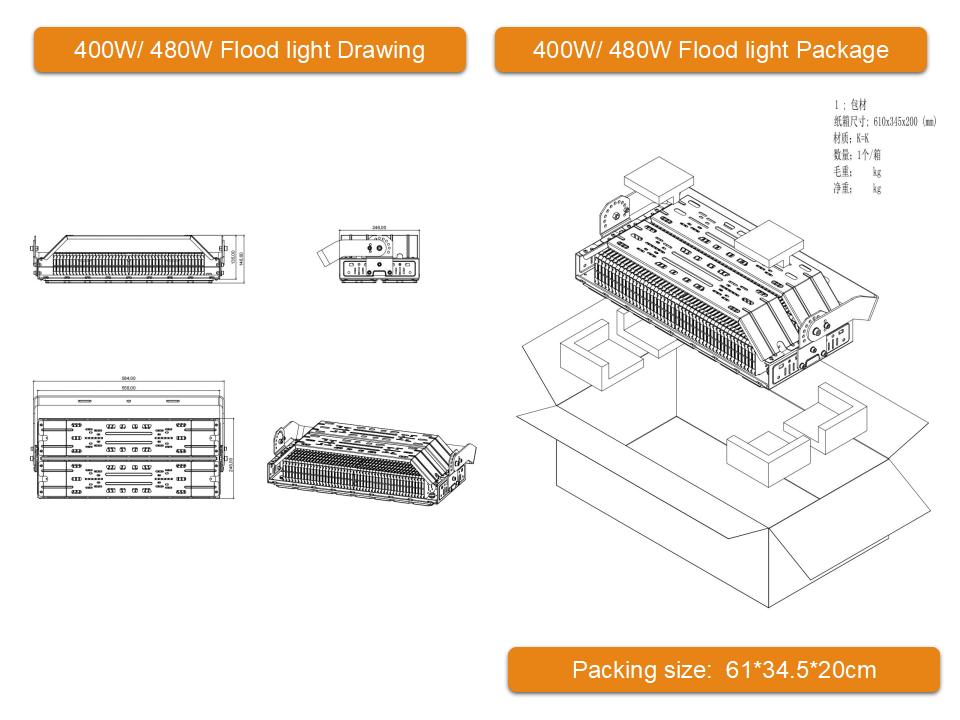

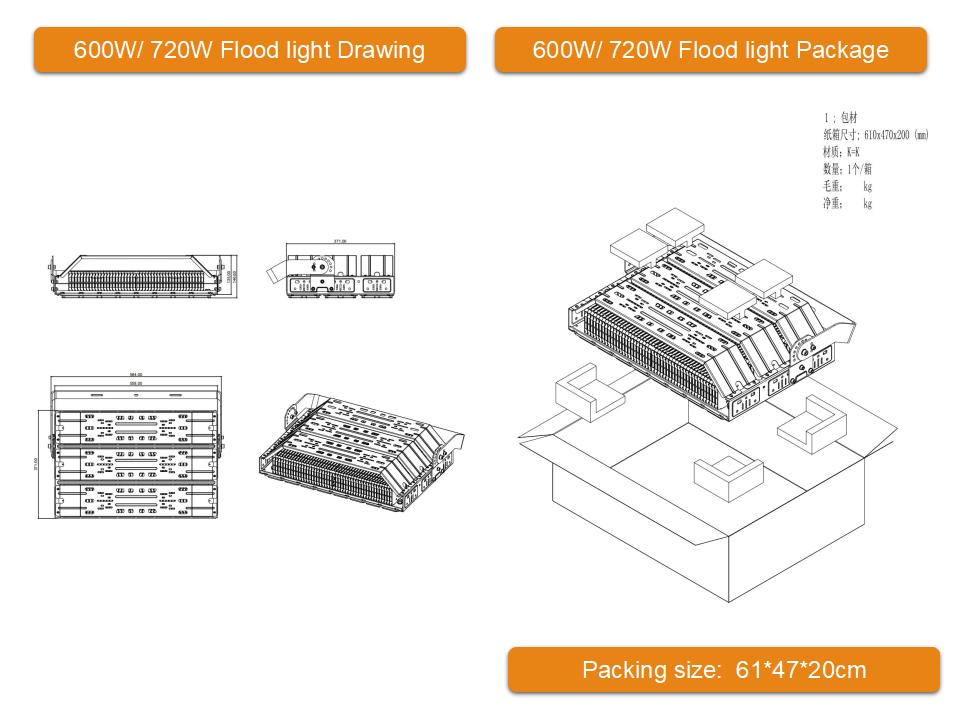

Dimension	566116146mm	566116146mm	566241146mm	566241146mm	566366146mm	566366146mm
Certificate	CE, RoHs
Packing size	631731.5cm	631731.5cm	6134.520cm	6134.520cm	614720cm	614720cm
Pieces/ctn	1	1	1	1	1	1
Net Weight	5.7kg	5.7kg	9.7kg	9.7kg	13.5kg	13.5kg
Gross Weight	6.6kg	6.6kg	10.6kg	10.6kg	14.8kg	14.8kg

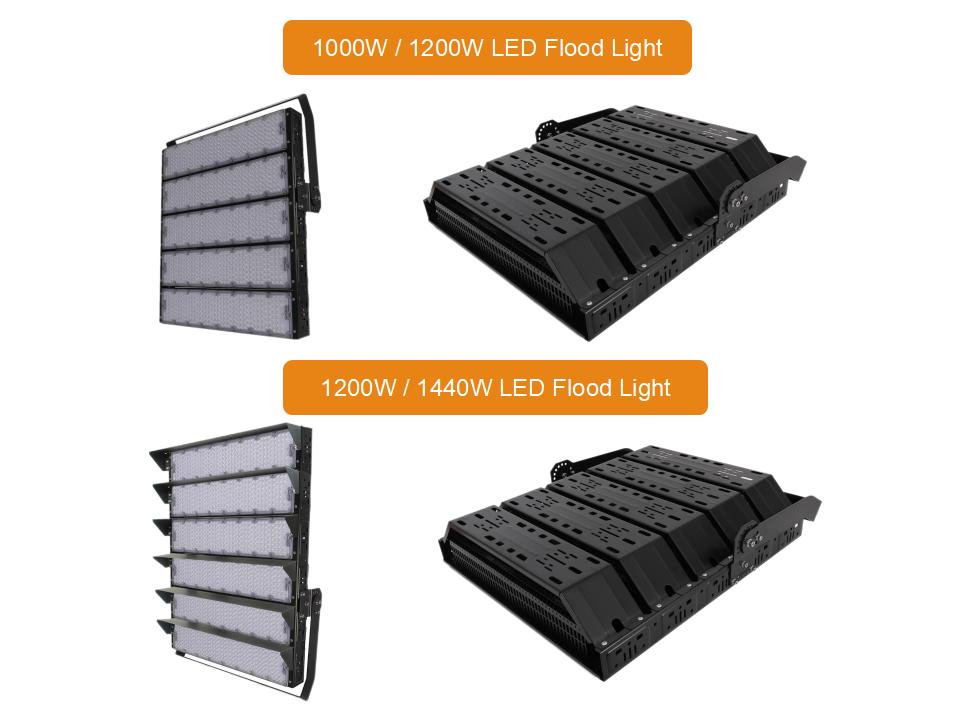

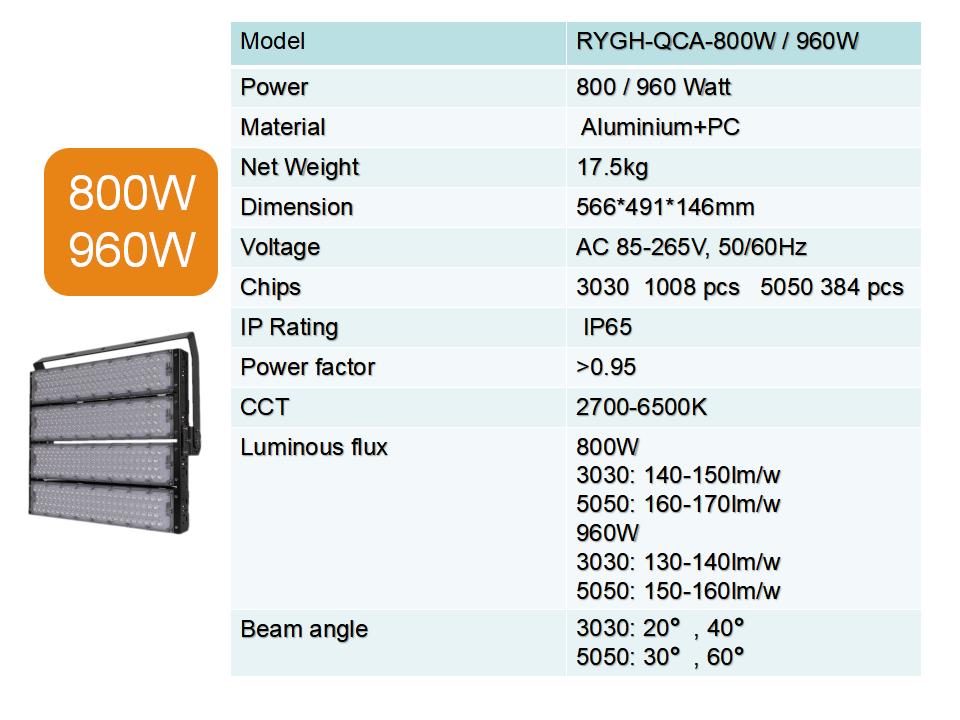

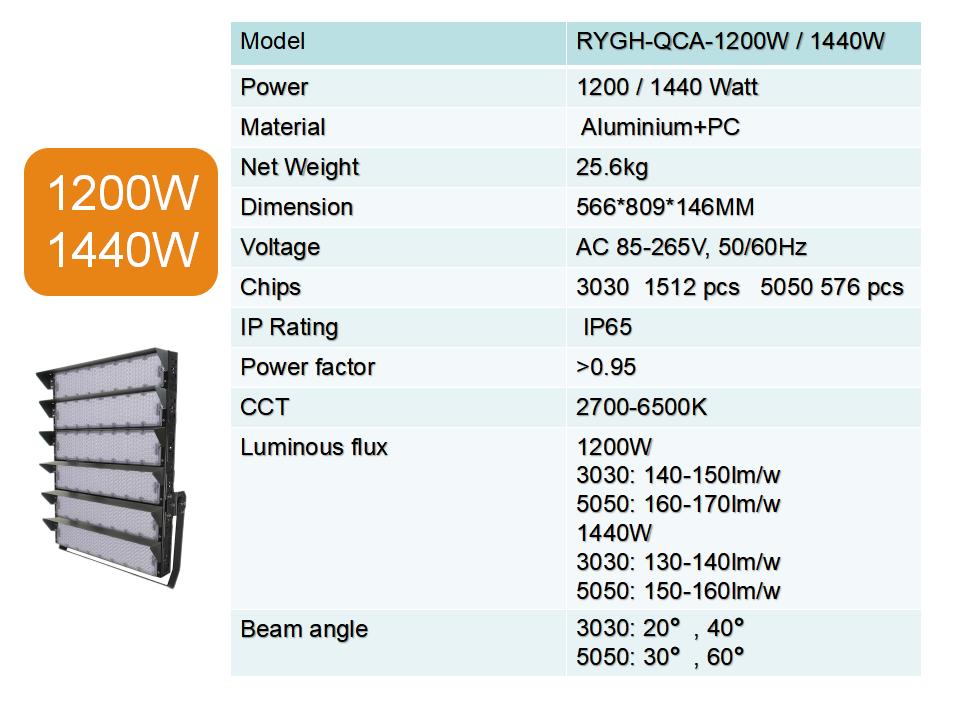

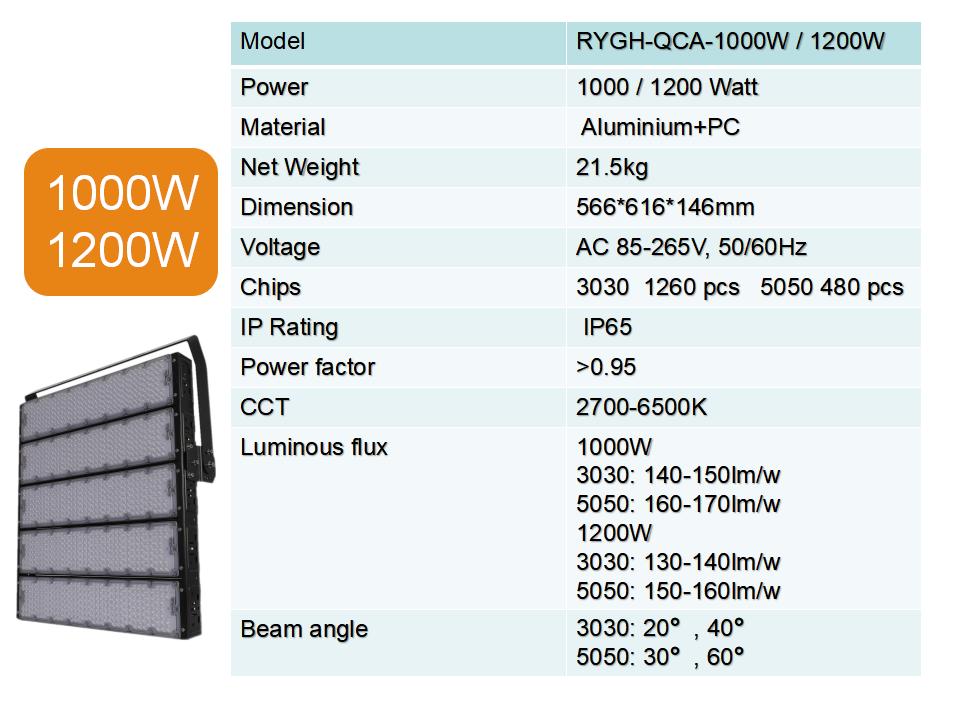

Model no.	RYGH-QCA-800W	RYGH-QCA-960W	RYGH-QCA-1000W	RYGH-QCA-1200W	RYGH-QCA-1200W2	RYGH-QCA-1440W
Rated power	800 Watt	960 Watt	1000 Watt	1200 Watt	1200 Watt	1440 Watt
Input voltage	AC 85-305V, 50/60Hz / AC 347-480V, 50/60Hz
LED Chip	Philips/Tiandian/Smalite
LED Driver	INVENTRONICS/MEANWELL/Philips/Sosen/Happsky
Material	AL+PC
CRI	70 or 80
Power Factor	>0.95
CCT	WW, NW, CW
Light efficiency	3030: 140-150lm/w 5050: 160-170lm/w	3030: 130-140lm/w 5050: 150-160lm/w	3030: 140-150lm/w 5050: 160-170lm/w	3030: 130-140lm/w 5050: 150-160lm/w	3030: 140-150lm/w 5050: 160-170lm/w	3030: 130-140lm/w 5050: 150-160lm/w
IP rating	IP65
IK rating	IK08
Operation temperature	-40~+65℃
Beam angle	3030: 20°, 40° 5050: 30°, 60°
Warranty	5 Years
Life span	50,000 hours

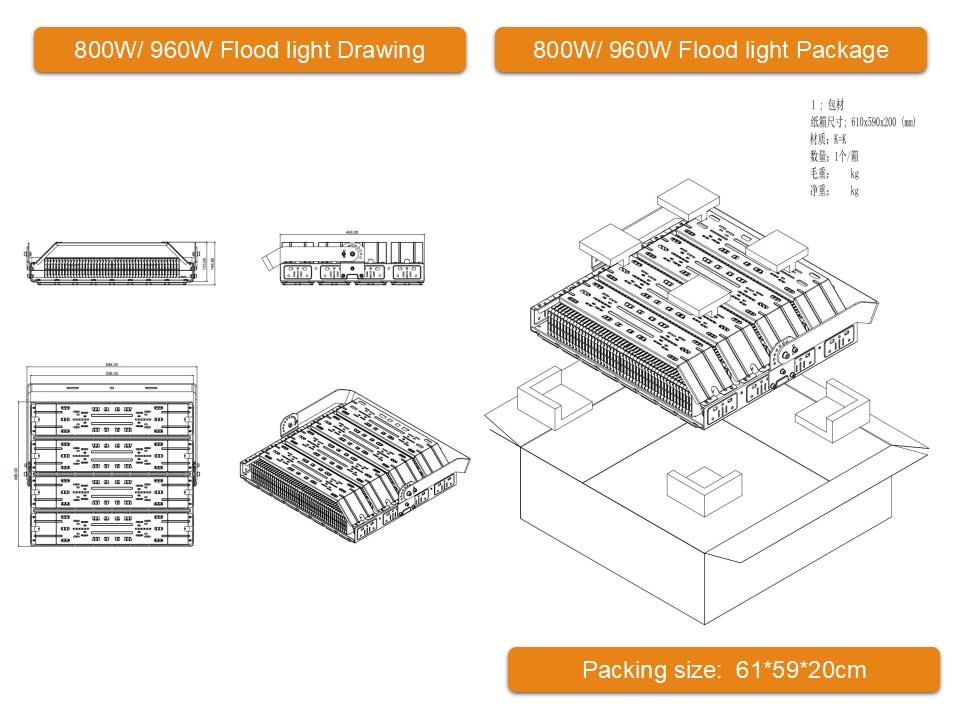

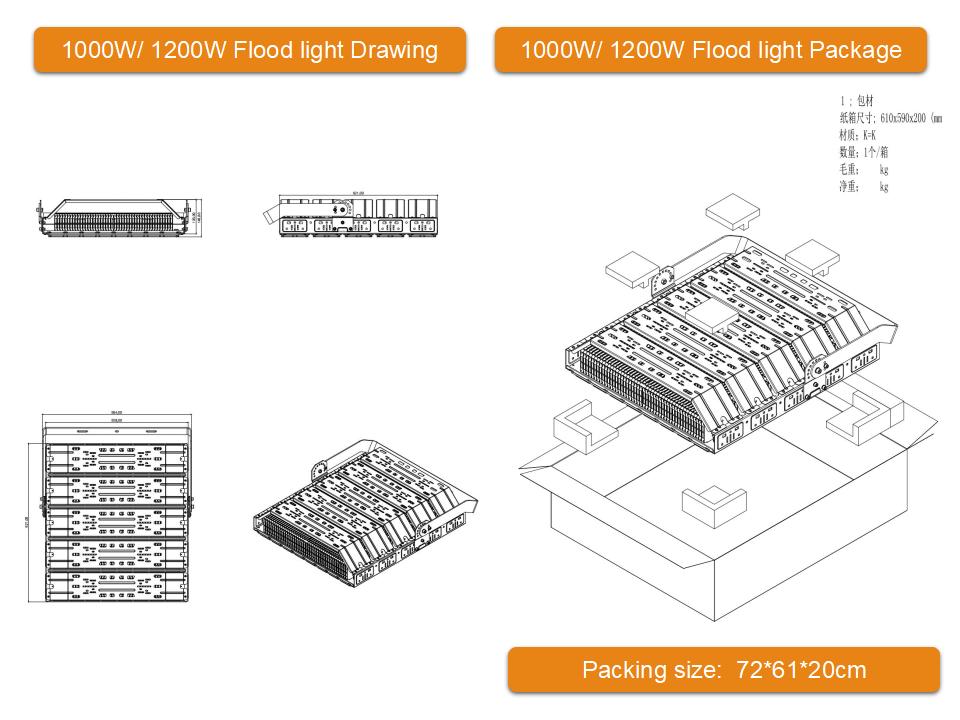

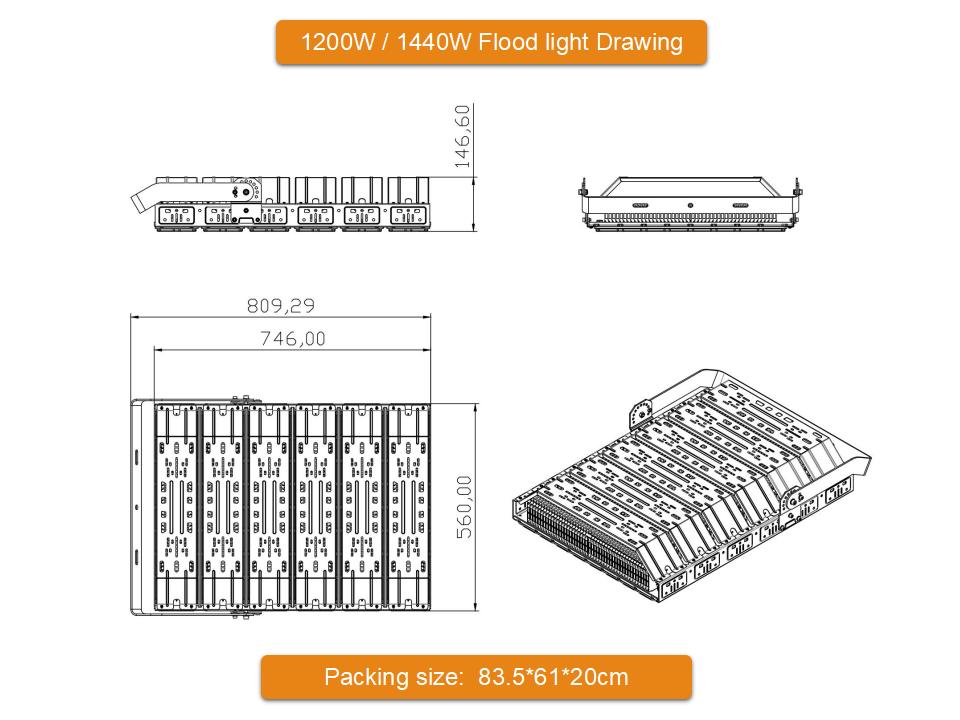

Dimension	566491146mm	566491146mm	566616146mm	566616146mm	566809146mm	566809146mm
Certificate	CE, RoHs
Packing size	615920cm	615920cm	726120cm	726120cm	83.56120cm	83.56120cm
Pieces/ctn	1	1	1	1	1	1
Net Weight	17.5kg	17.5kg	21.5kg	21.5kg	25.6kg	25.6kg
Gross Weight	19.1kg	19.1kg	23.3kg	23.3kg	28.6kg	28.6kg

Environment Requirement

Working Temperature：-40~+65℃

Storage Temperature：-40~+65℃

Working Humidity：0%~85%

Storage Humidity：0%~90%

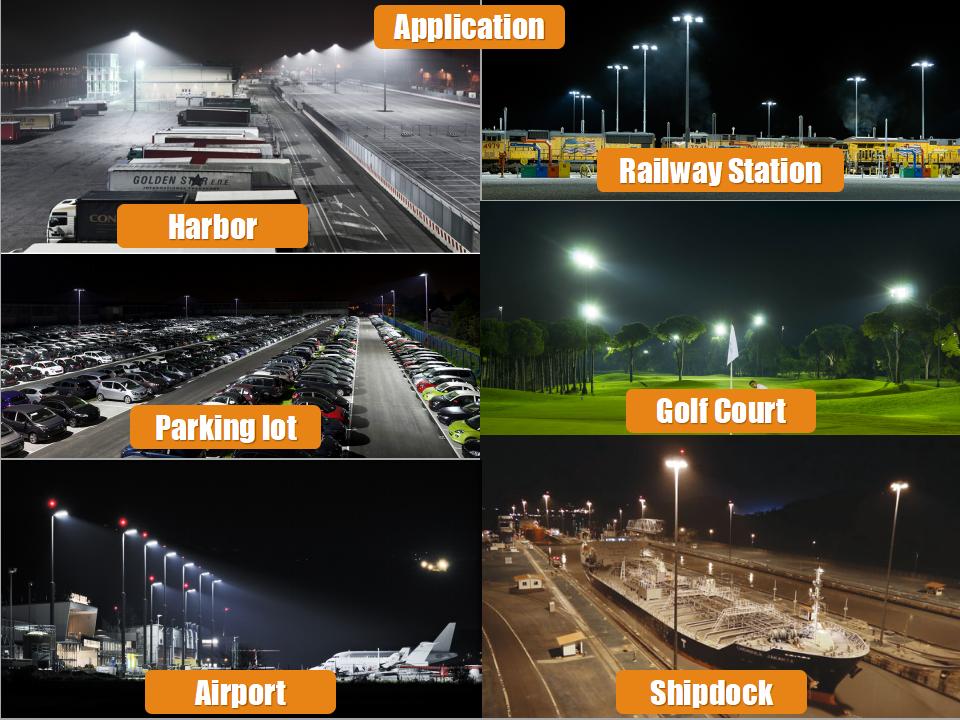

QCA Series LED Stadium Light Application:

QCA Series LED Stadium Light can be widely applied in Port, Wharf, Tower Crane, Golf Course, Football Field, Stadium etc.

Warning

Please install the lamp according to the installation to avoid dropping and electric shock.
Don’t exchange the lamp as will to avoid dropping ,electric shock and damage of the lamp.
Working voltage is not to be exceeded AC 85-305V, 50/60Hz / AC 347-480V, 50/60Hz

Attention

Don’t install the lamp to non-stable place.
Installed by qualified electrician.
Switch off the switch box and contact certified electrician if the lamp works abnormally

Warranty

5-year warranty since the date of purchase is offered for all LED flood Lights.

Warranty Terms

Under the terms of this warranty, if the product has a failure occurring under normal usage within warranty period, RYGH will provide free maintenance service based on the proof-documents and invoice (copy) of failure product.
RYGH will not provide paid maintenance service under conditions within warranty.
Failure or damage due to force majeure.
Failure or damage due to transport or unloading.
Failure or damage due to incorrectly usage or fail to comply with the User’s Guide and Caution.
Failure or damage due to demolition, repair, alteration without Manufacturer’s authorization.
Please deliver the failure product by original packing for maintenance service, RYGH will not be responsible for any failure or damage in transportation if customer uses non-original packing or improper packing.
RYGH reserves the right for final explanation of aforesaid terms.

Caution: RYGH will not be responsible for any other failure or damage by incorrect usage.
