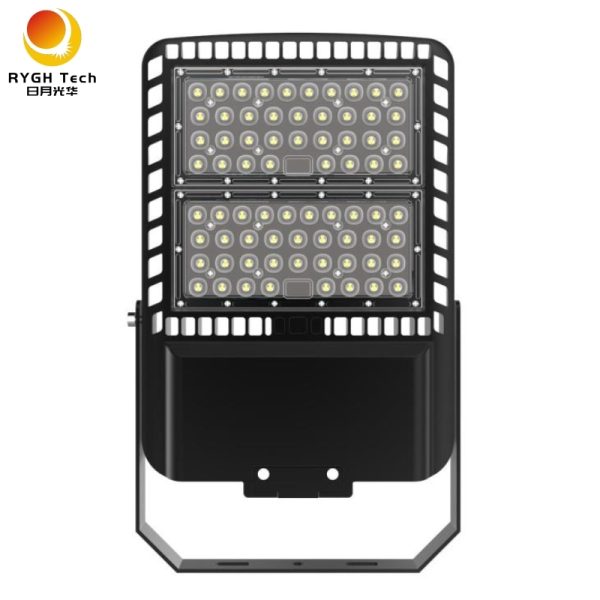

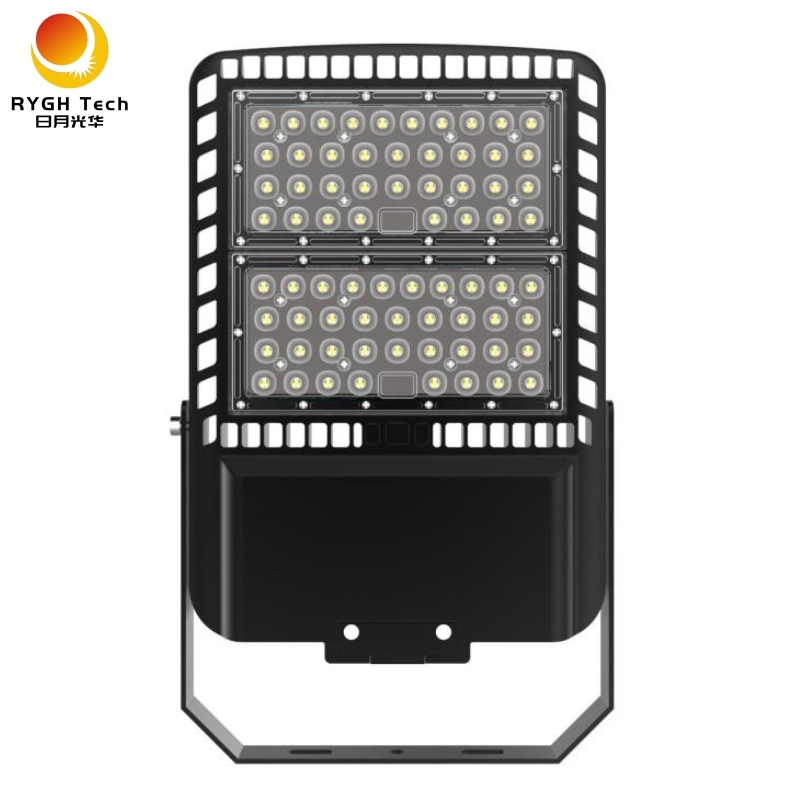

300watt commercial garage parking lot lighting

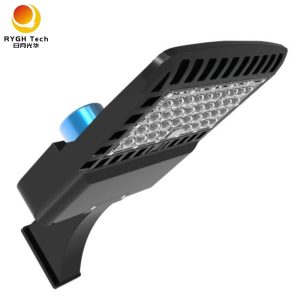

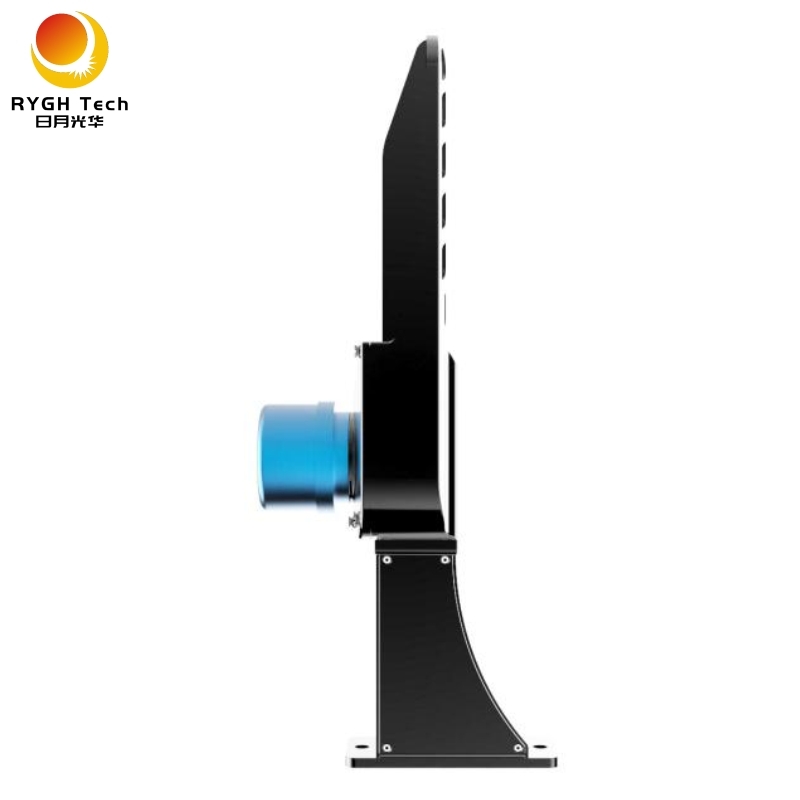

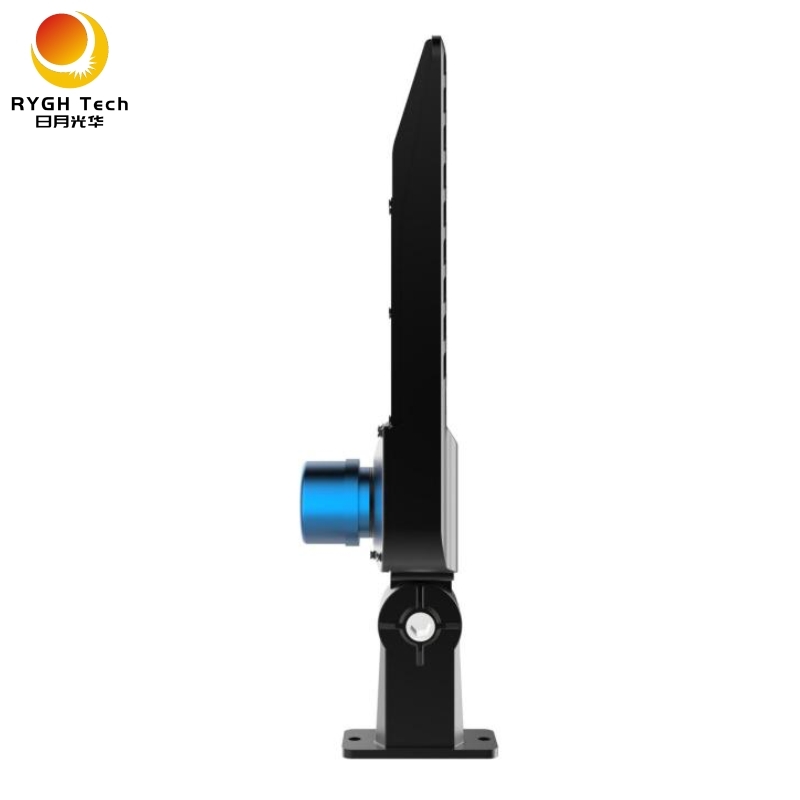

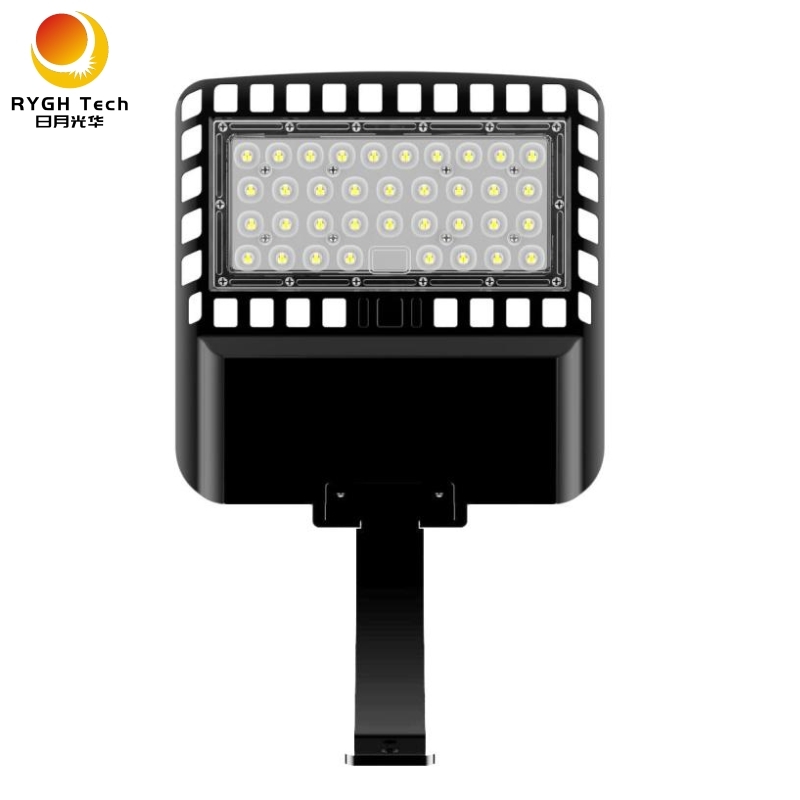

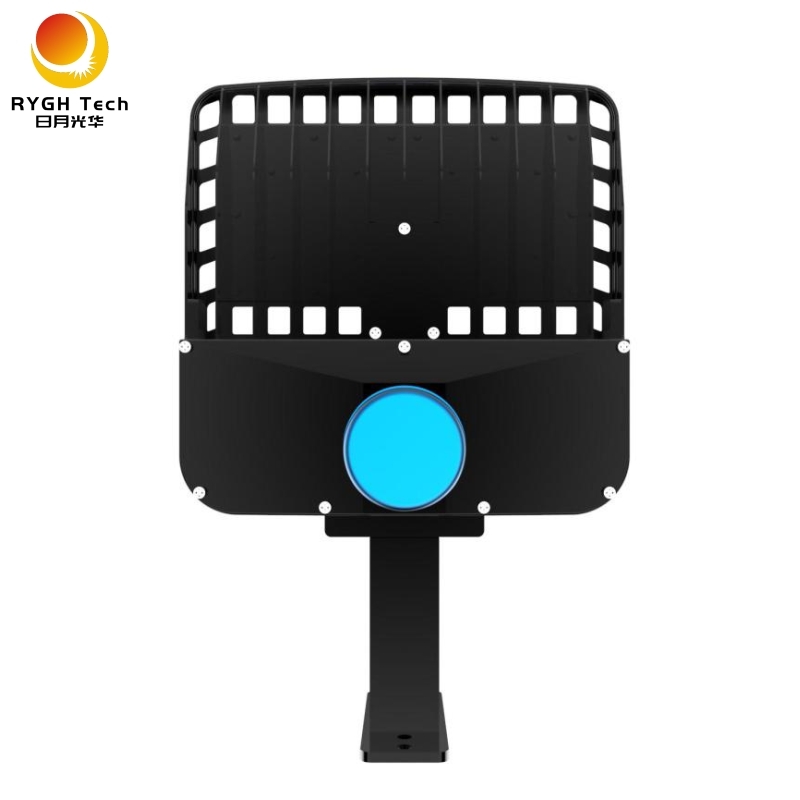

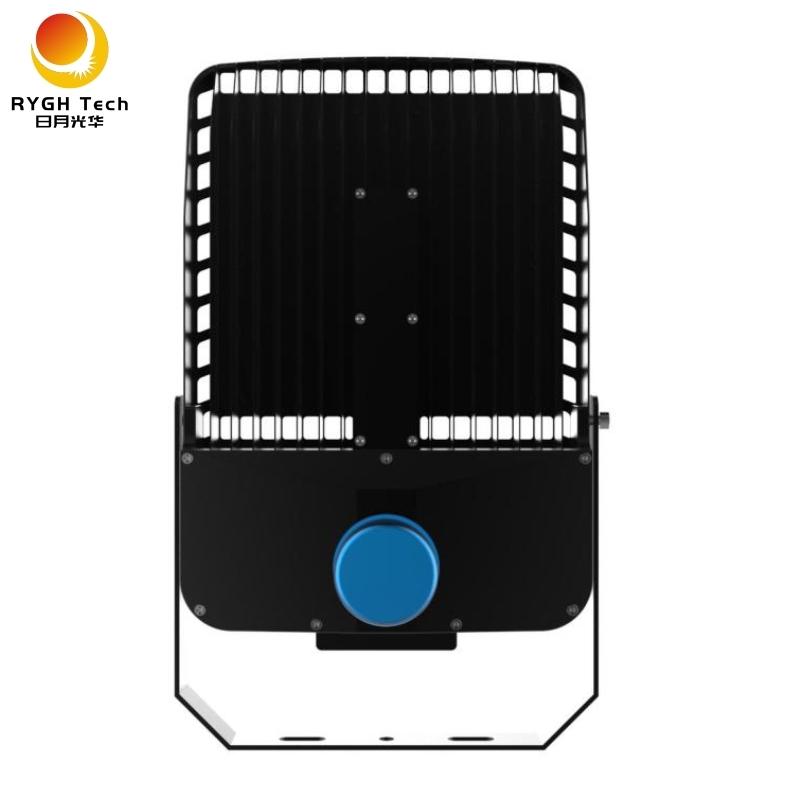

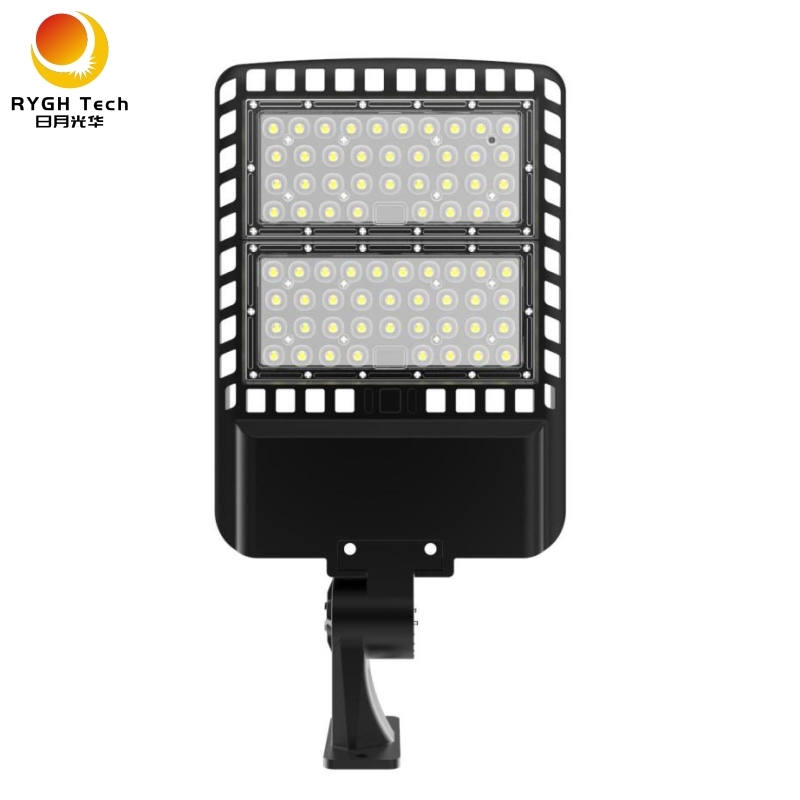

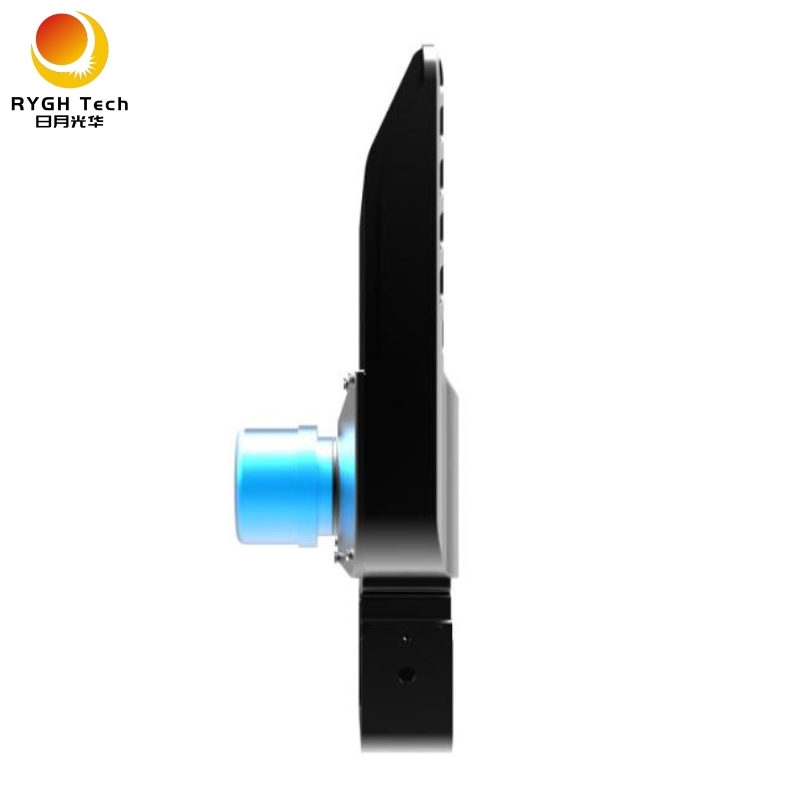

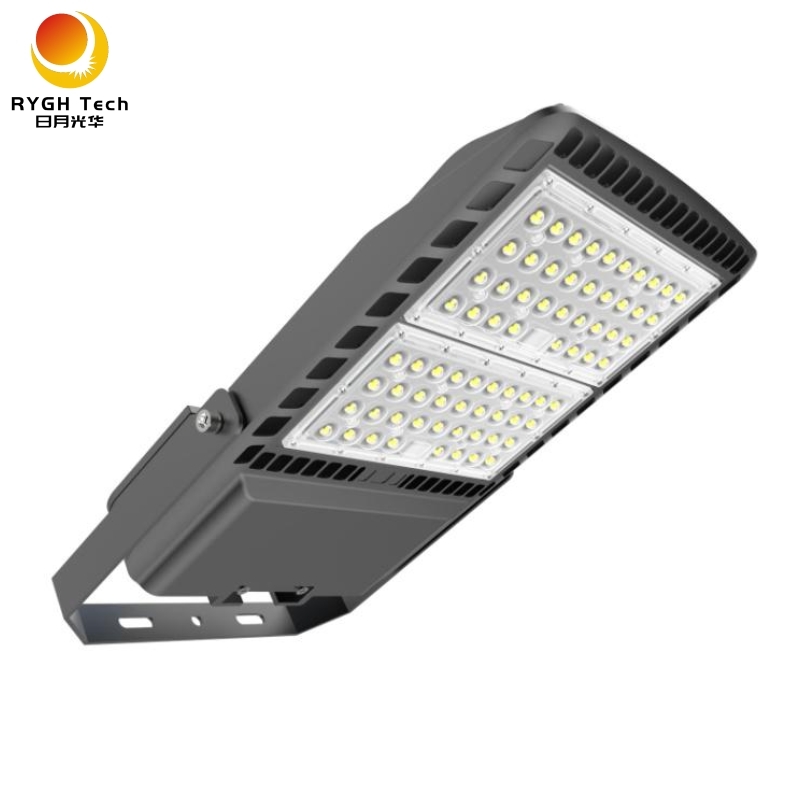

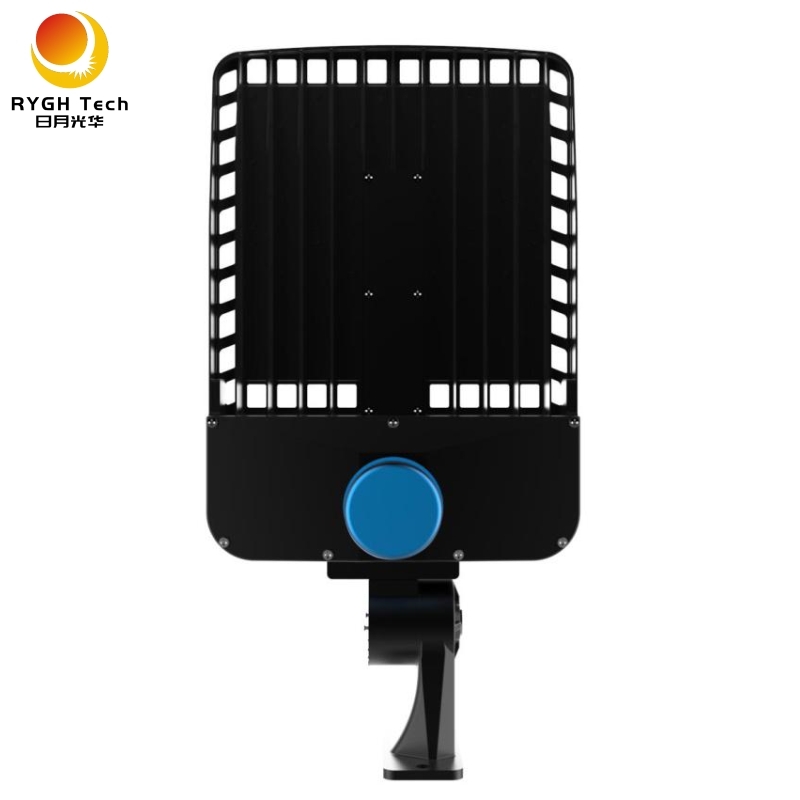

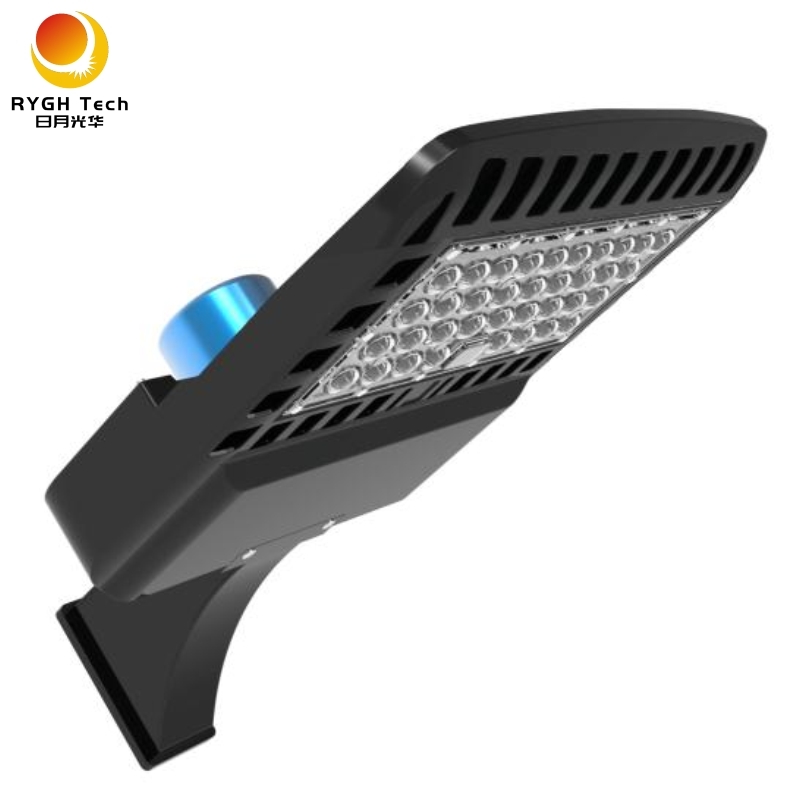

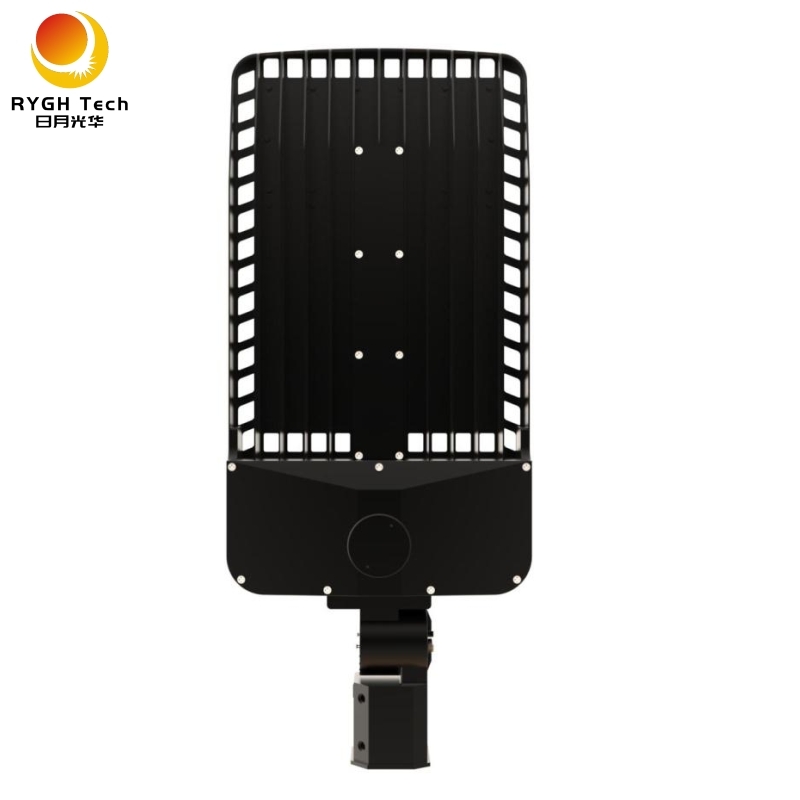

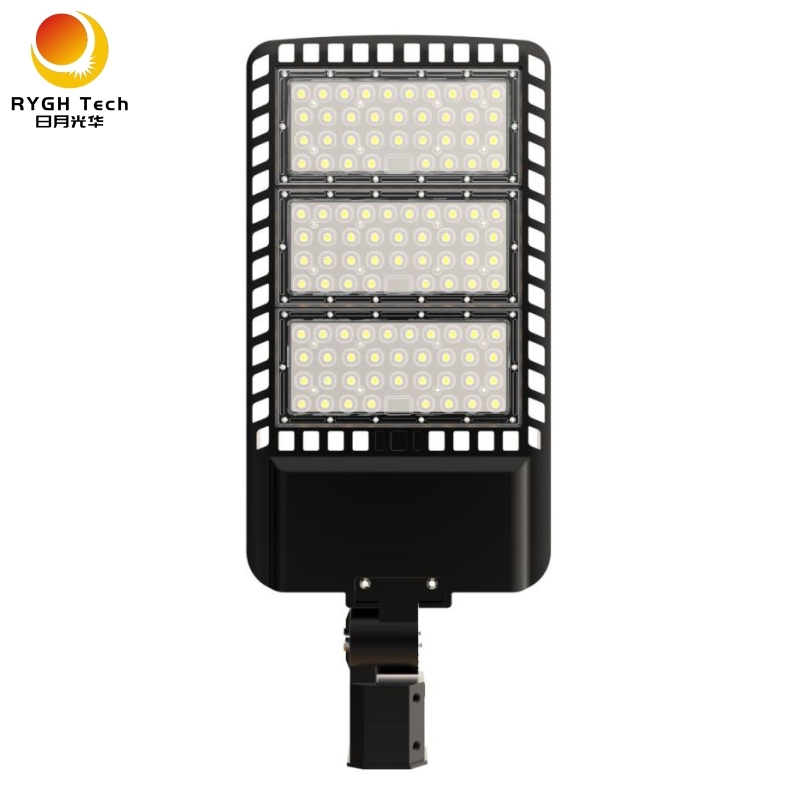

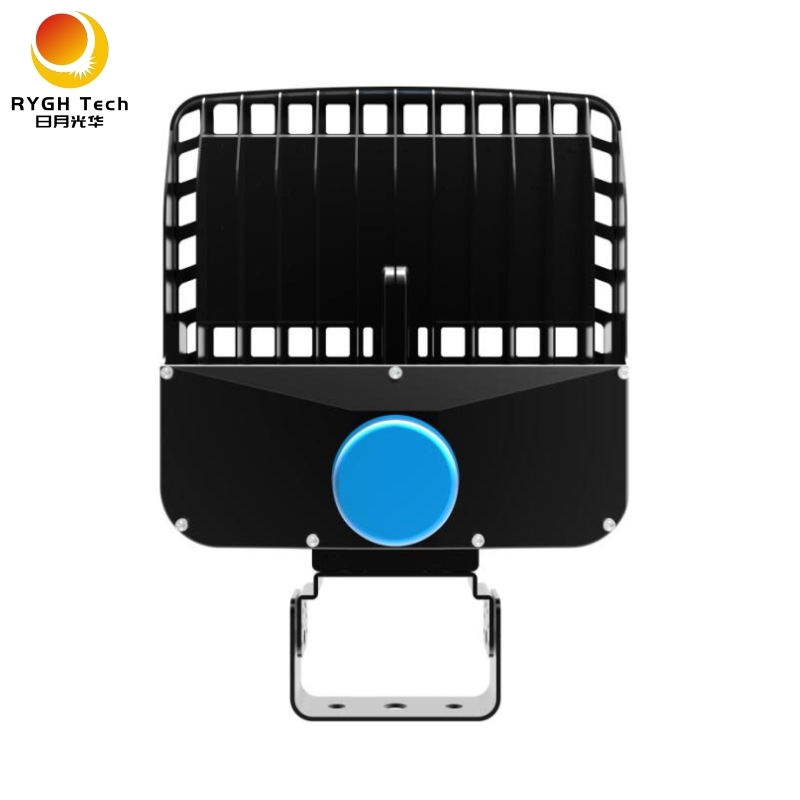

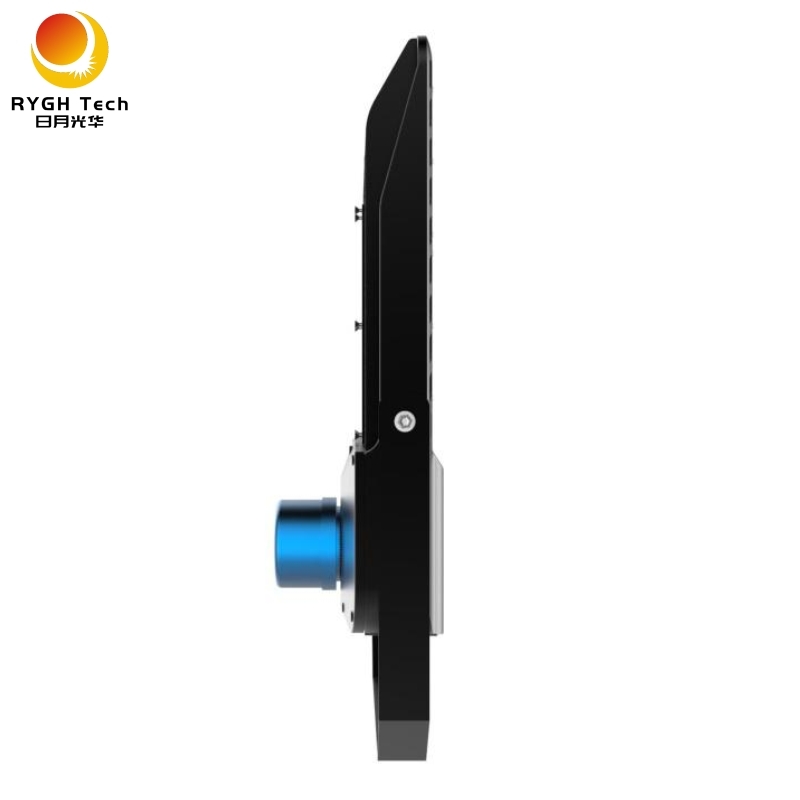

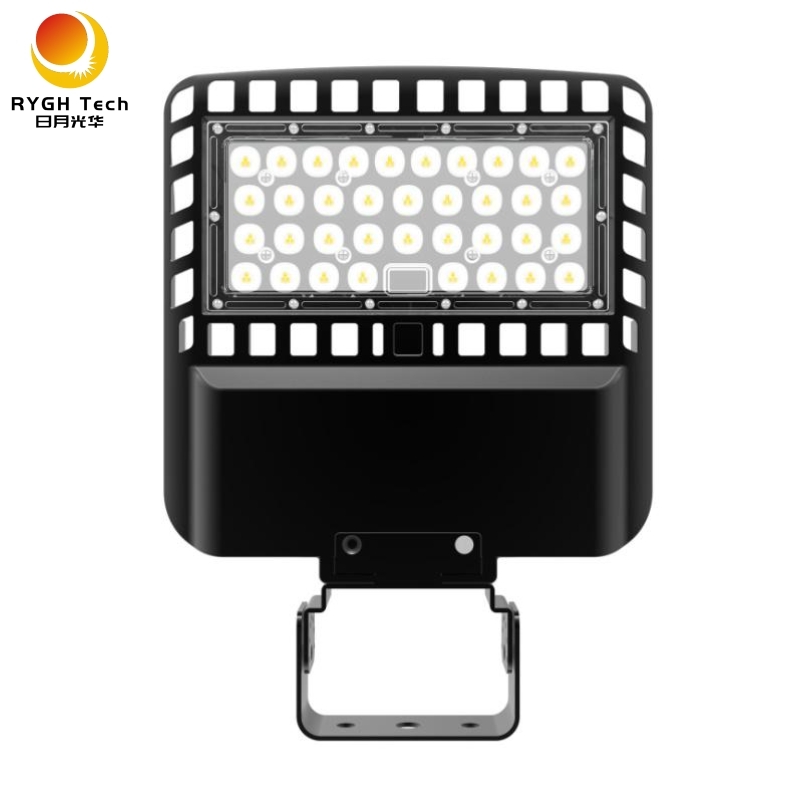

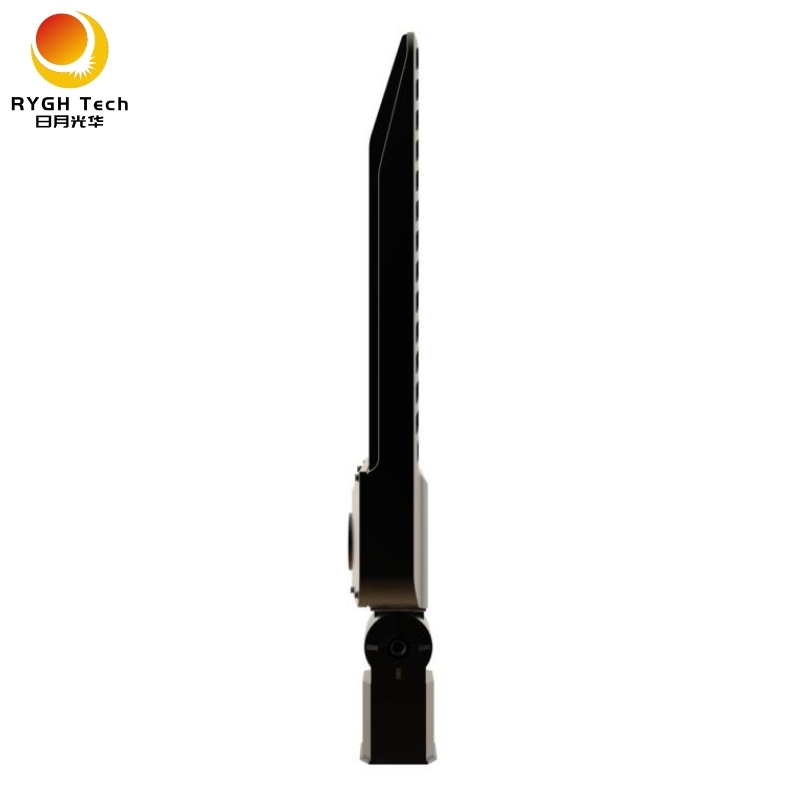

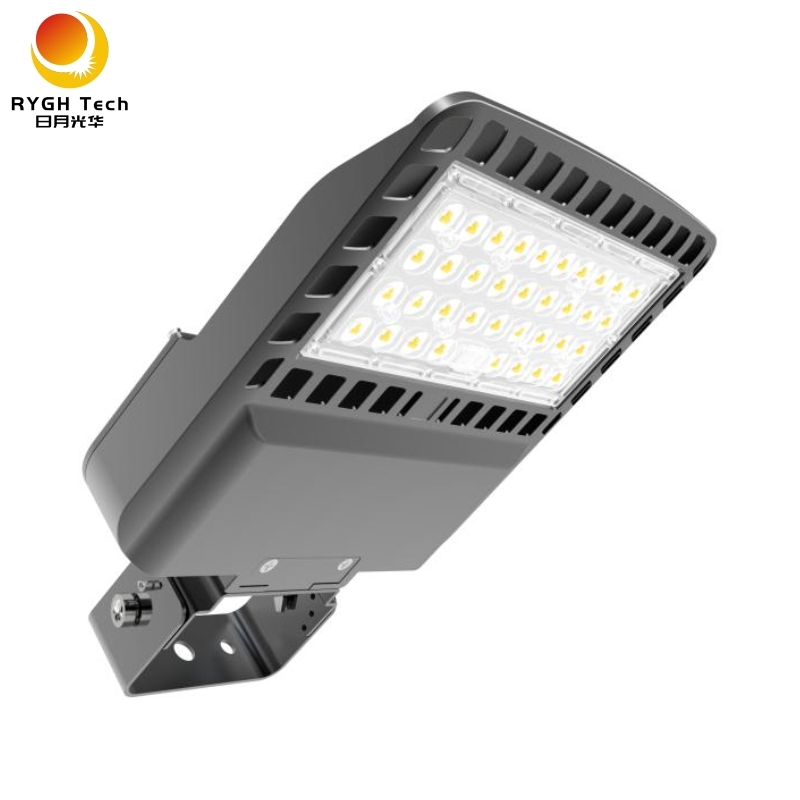

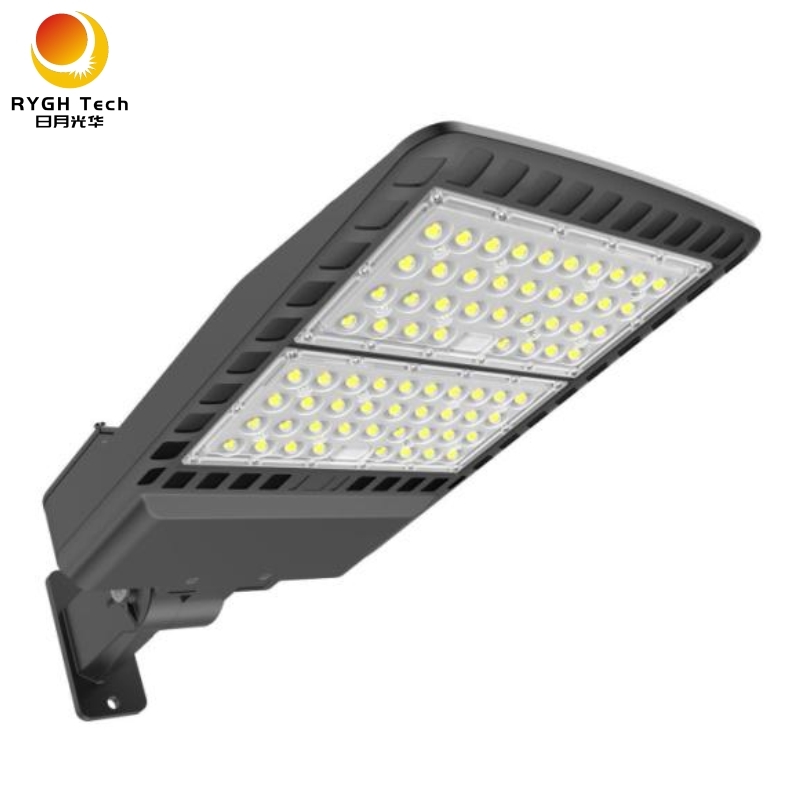

SB Shoebox Led Street Light

SB Series Shoebox Led Street Light Features:
60W | 75W | 100W | 120W | 150W | 200W
| 240W | 300W

Parking lot shoebox led street light features:

1, Integrated die-casting AL

2, High efficiency, 120lm/w-160lm/w

3, Professional glare-free lens, TYPE3/TYPE4/TYPE5 available

4, 0-10V dimming/time control/light sensor/IOT control available

5, Bat wing light shape

6, Various applications: street light,shoe box light, projector,etc.

7, 4 adaptor available: adaptor A, adaptor B-1, adaptor C, adaptor D

Description
Reviews 0

SB Series Shoebox Led Street Light Specifications

Item No	RYGH-PLLD-60W	RYGH-PLLD-75W	RYGH-PLLD-100W	RYGH-PLLD-120W	RYGH-PLLD-120W2
Lamp Size	A: 49431084mm, pole diameter: 65mm	A: 49431084mm, pole diameter: 65mm	A: 49431084mm, pole diameter: 65mm	A: 49431084mm, pole diameter: 65mm	A: 49431084mm, pole diameter: 65mm
Voltage	AC85V-277V 47-63Hz	AC85V-277V 47-63Hz	AC85V-277V 47-63Hz	AC85V-277V 47-63Hz	AC85V-277V 47-63Hz
Power	60W	75W	100W	120W	120W
LED Type	3030 SMD	3030 SMD	3030 SMD	3030 SMD	3030 SMD
LED Quantity	72 Piece	96 Piece	144 Piece	144 Piece	168 Piece
Color Temperature	2700-6500K	2700-6500K	2700-6500K	2700-6500K	2700-6500K
Beam Angle	T3, T4, T5	T3, T4, T5	T3, T4, T5	T3, T4, T5	T3, T4, T5
Color Rendering Index (CRI)	Ra>70	Ra>70	Ra>70	Ra>70	Ra>70
Power Supply Efﬁciency	>92%	>92%	>92%	>92%	>92%
LED Luminous Efﬁciency	120-130lm/W	120-130lm/W	130-140lm/W	120-130lm/W	130-140lm/W
Power Factor (PF)	>0.95	>0.95	>0.95	>0.95	>0.95
Total Harmonic Distortion (THD)	≤15%	≤15%	≤15%	≤15%	≤15%
IP Rank	IP 65	IP 65	IP 65	IP 65	IP 65
Adaptor	A, B-1, C, D	A, B-1, C, D	A, B-1, C, D	A, B-1, C, D	A, B-1, C, D
Life time	50,000 hrs	50,000 hrs	50,000 hrs	50,000 hrs	50,000 hrs
Packing size	515360160MM	515360160MM	515360160MM	515360160MM	515360160MM
Gross Weight	5.4KG	5.4KG	5.4KG	5.4KG	5.4KG
Certiﬁcate	CE, Rohs	CE, Rohs	CE, Rohs	CE, Rohs	CE, Rohs
IK Rating	IK08	IK08	IK08	IK08	IK08
Warranty	5 years	5 years	5 years	5 years	5 years

Item No	RYGH-PLLD-150W	RYGH-PLLD-150W2	RYGH-PLLD-150W3	RYGH-PLLD-200W1	RYGH-PLLD-200W2
Lamp Size	A: 49431084mm, pole diameter: 65mm	A: 62131085mm, pole diameter: 65mm	A: 62131085mm, pole diameter: 65mm	A: 62131085mm, pole diameter: 65mm	A: 62131085mm, pole diameter: 65mm
Voltage	AC85V-277V 47-63Hz	AC85V-277V 47-63Hz	AC85V-277V 47-63Hz	AC85V-277V 47-63Hz	AC85V-277V 47-63Hz
Power	150W	150W	150W	200W	200W
LED Type	3030 SMD	3030 SMD	3030 SMD	3030 SMD	3030 SMD
LED Quantity	168 Piece	192 Piece	288 Piece	288 Piece	336 Piece
Color Temperature	2700-6500K	2700-6500K	2700-6500K	2700-6500K	2700-6500K
Beam Angle	T3, T4, T5	T3, T4, T5	T3, T4, T5	T3, T4, T5	T3, T4, T5
Color Rendering Index (CRI)	Ra>70	Ra>70	Ra>70	Ra>70	Ra>70
Power Supply Efﬁciency	>92%	>92%	>92%	>92%	>92%
LED Luminous Efﬁciency	120lm/W	120-130lm/W	150-160lm/W	130-140lm/W	150-160lm/W
Power Factor (PF)	>0.95	>0.95	>0.95	>0.95	>0.95
Total Harmonic Distortion (THD)	≤15%	≤15%	≤15%	≤15%	≤15%
IP Rank	IP 65	IP 65	IP 65	IP 65	IP 65
Adaptor	A, B-1, C, D	A, B-1, C, D	A, B-1, C, D	A, B-1, C, D	A, B-1, C, D
Life time	50,000 hrs	50,000 hrs	50,000 hrs	50,000 hrs	50,000 hrs
Packing size	515360160MM	672376168MM	672376168MM	672376168MM	672376168MM
Gross Weight	5.4KG	6KG	6KG	6KG	6KG
Certiﬁcate	CE, Rohs	CE, Rohs	CE, Rohs	CE, Rohs	CE, Rohs
IK Rating	IK08	IK08	IK08	IK08	IK08
Warranty	5 years	5 years	5 years	5 years	5 years

Item No	RYGH-PLLD-240W	RYGH-PLLD-240W2	RYGH-PLLD-300W	RYGH-PLLD-300W2	RYGH-PLLD-300W3
Lamp Size	A: 86932084mm, pole diameter: 65mm	A: 86932084mm, pole diameter: 65mm	A: 86932084mm, pole diameter: 65mm	A: 86932084mm, pole diameter: 65mm	A: 86932084mm, pole diameter: 65mm
Voltage	AC85V-277V 47-63Hz	AC85V-277V 47-63Hz	AC85V-277V 47-63Hz	AC85V-277V 47-63Hz	AC85V-277V 47-63Hz
Power	240W	240W	300W	300W	300W
LED Type	3030 SMD	3030 SMD	3030 SMD	3030 SMD	3030 SMD
LED Quantity	288 Piece	336 Piece	336 Piece	378 Piece	504 Piece
Color Temperature	2700-6500K	2700-6500K	2700-6500K	2700-6500K	2700-6500K
Beam Angle	T3, T4, T5	T3, T4, T5	T3, T4, T5	T3, T4, T5	T3, T4, T5
Color Rendering Index (CRI)	Ra>70	Ra>70	Ra>70	Ra>70	Ra>70
Power Supply Efﬁciency	>92%	>92%	>92%	>92%	>92%
LED Luminous Efﬁciency	120-130lm/W	130-140lm/W	110-120lm/W	120-130lm/W	150-160lm/W
Power Factor (PF)	>0.95	>0.95	>0.95	>0.95	>0.95
Total Harmonic Distortion (THD)	≤15%	≤15%	≤15%	≤15%	≤15%
IP Rank	IP 65	IP 65	IP 65	IP 65	IP 65
Adaptor	A, B-1, C, D	A, B-1, C, D	A, B-1, C, D	A, B-1, C, D	A, B-1, C, D
Life time	50,000 hrs	50,000 hrs	50,000 hrs	50,000 hrs	50,000 hrs
Packing size	800376168MM	800376168MM	800376168MM	800376168MM	800376168MM
Gross Weight	9KG	9KG	9KG	9KG	9KG
Certiﬁcate	CE, Rohs	CE, Rohs	CE, Rohs	CE, Rohs	CE, Rohs
IK Rating	IK08	IK08	IK08	IK08	IK08
Warranty	5 years	5 years	5 years	5 years	5 years

Environment Requirement

Working Temperature：-35~+50℃

Storage Temperature：-35~+50℃

Working Humidity：0%~85%

Storage Humidity：0%~90%

SB Series Shoebox Led Street Light Application:

SB Series Shoebox Led Street Light are widely used for street, road, highway, viaduct, overpass, sidewalk, outdoor lighting places, such as squares,schools, residential areas and parks.

Warning

Please install the lamp according to the installation to avoid dropping and electric shock.
Don’t exchange the lamp as will to avoid dropping ,electric shock and damage of the lamp.
Working voltage is not to be exceeded AC100-305V 50/60Hz

Attention

Don’t install the lamp to non-stable place.
Installed by qualified electrician.
Switch off the switch box and contact certified electrician if the lamp works abnormally

Warranty

5-year warranty since the date of purchase is offered for all street Light.

Warranty Terms

Under the terms of this warranty, if the product has a failure occurring under normal usage within warranty period, RYGH will provide free maintenance service based on the proof-documents and invoice (copy) of failure product.
RYGH will not provide paid maintenance service under conditions within warranty.
Failure or damage due to force majeure.
Failure or damage due to transport or unloading.
Failure or damage due to incorrectly usage or fail to comply with the User’s Guide and Caution.
Failure or damage due to demolition, repair, alteration without Manufacturer’s authorization.
Please deliver the failure product by original packing for maintenance service, RYGH will not be responsible for any failure or damage in transportation if customer uses non-original packing or improper packing.
RYGH reserves the right for final explanation of aforesaid terms.

Caution: RYGH will not be responsible for any other failure or damage by incorrect usage.
