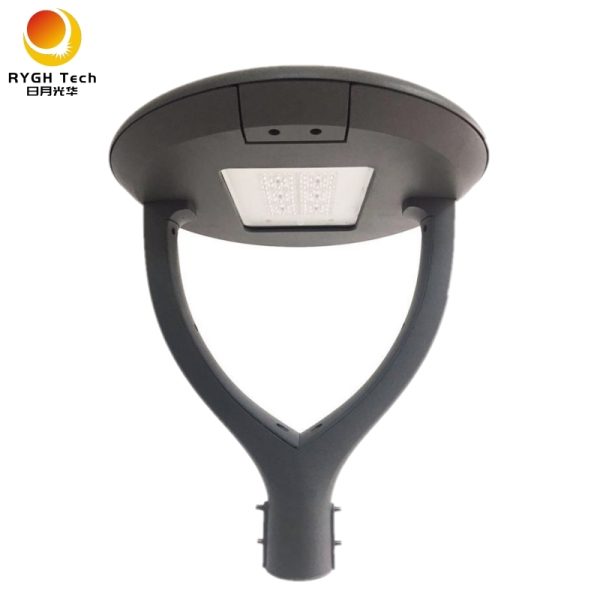

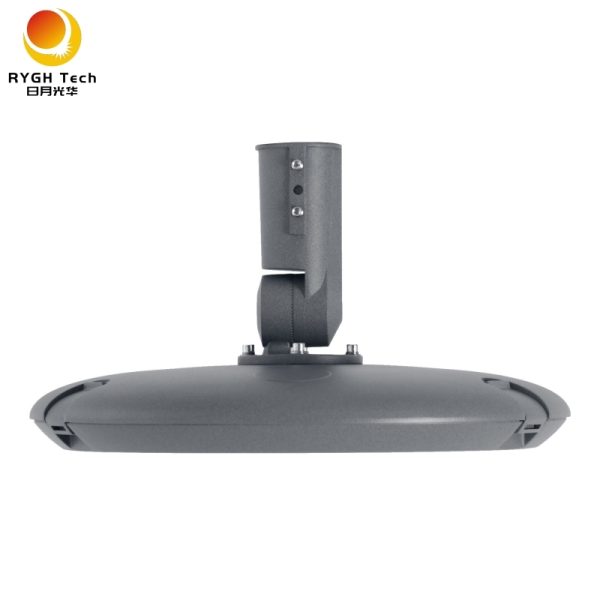

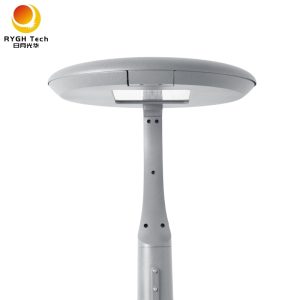

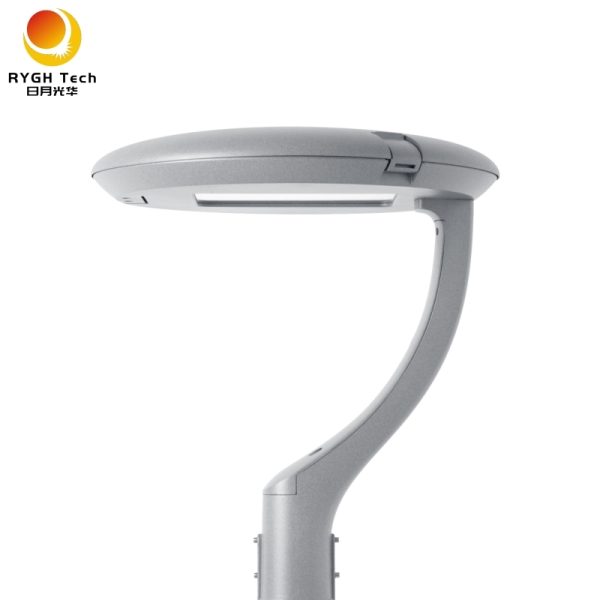

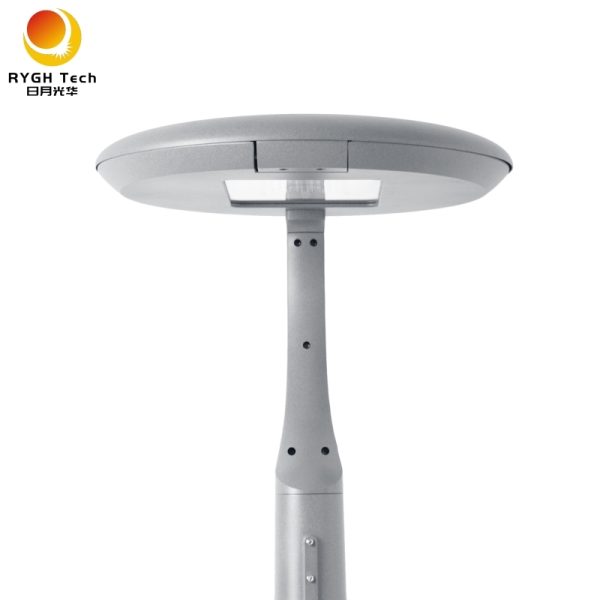

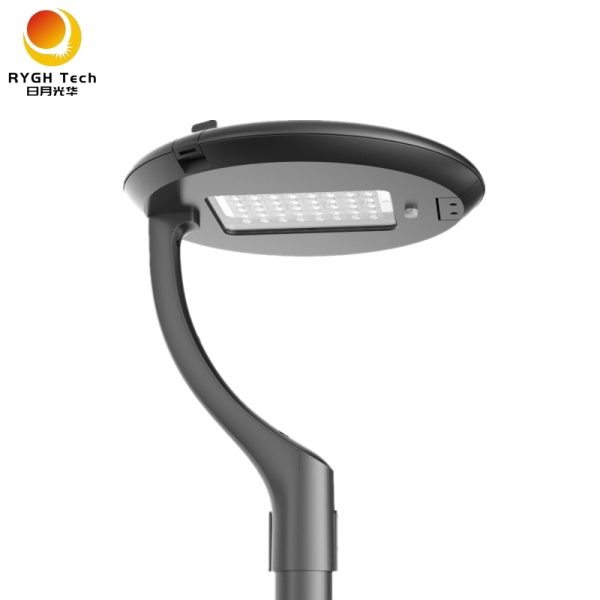

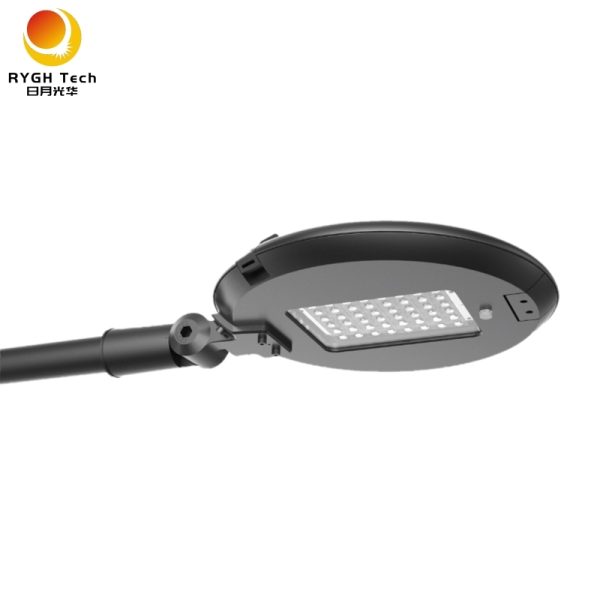

Star LED Garden Light

1, Available from 20W-150W

2, Excellent heat radiation, optical and electrical ability

3, Die-cast aluminum body with pure polyester Electrostatic spray

4, With super white toughened glass

5, Silicon rubber seal ring

6, Stainless screws

7, Humanized design concept, easy to install and maintain

8, IP66

9, Multiple beam angle

10, Mount diameter: 76mm

Model No	RYGH-STAR
Power	30W	40W	50W	60W	80W	100W	120W	150W
Led chips Qty (3030)	48	48	72	72	108	108	144	192
Led chips Qty (5050)	16	16	24	24	36	36	48	48
Luminaire Flux (LM)	3960	4800	6750	7920	10400	12500	15000	18000
LED Chips	Philips Led (other brand of led upon request)
Luminaire Efficacy	130-150 LM/W
CCT	4000K (2700-6500K upon request)
CRI	70 (80 upon request)
Lifetime	108000H (at 25℃ ambient temperature)
Operating Temperature	-30℃-55℃
Driver	Meanwell/Inventronics (other brand of driver upon request)
Electrical	Class I or Class II Input voltage: 100-277VAC/50-60HZ; 108-305VAC/50-60HZ 10KV/20KV SPD Cut-off connector (Power automatically switch off when opening)
Beam angle	TYPE II, TYPE III
Dimming	DALI / 1-10V / PWM / FIVE LEVELS DIMMING
Options	Photocell / Surge protection device / External cable (different length upon request)
Color	Grey / Black / White (other color upon request)
Tightless Level	IP66
Impact Resistance	IK08
Standards & Certification	CE, ROHS

Environment Requirement

Working Temperature：-35~+55℃

Storage Temperature：-35~+50℃

Working Humidity：0%~85%

Storage Humidity：0%~90%

Star LED Garden Light can be widely applied for pathways, parking lots, building entryways, alleys, streets, tunnels and loading docks.

Warning

Please install the lamp according to the installation to avoid dropping and electric shock.
Don’t exchange the lamp as will to avoid dropping ,electric shock and damage of the lamp.
Working voltage is not to be exceeded AC85-305V50/60Hz

Attention

Don’t install the lamp to non-stable place.
Installed by qualified electrician.
Switch off the switch box and contact certified electrician if the lamp works abnormally

Warranty

5-year warranty since the date of purchase is offered for all led garden Lights.

Warranty Terms

Under the terms of this warranty, if the product has a failure occurring under normal usage within warranty period, RYGH will provide free maintenance service based on the proof-documents and invoice (copy) of failure product.
RYGH will not provide paid maintenance service under conditions within warranty.
Failure or damage due to force majeure.
Failure or damage due to transport or unloading.
Failure or damage due to incorrectly usage or fail to comply with the User’s Guide and Caution.
Failure or damage due to demolition, repair, alteration without Manufacturer’s authorization.
Please deliver the failure product by original packing for maintenance service, RYGH will not be responsible for any failure or damage in transportation if customer uses non-original packing or improper packing.
RYGH reserves the right for final explanation of aforesaid terms.
