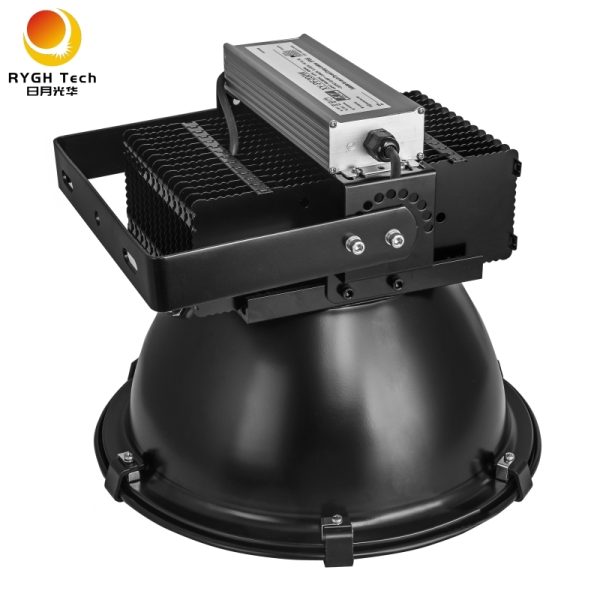

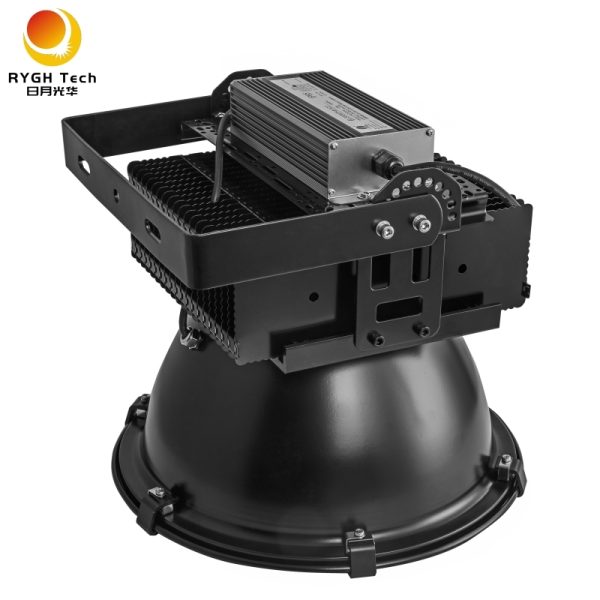

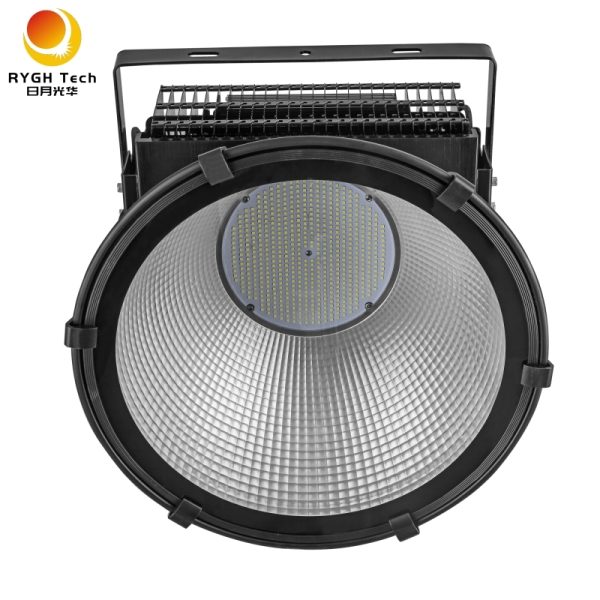

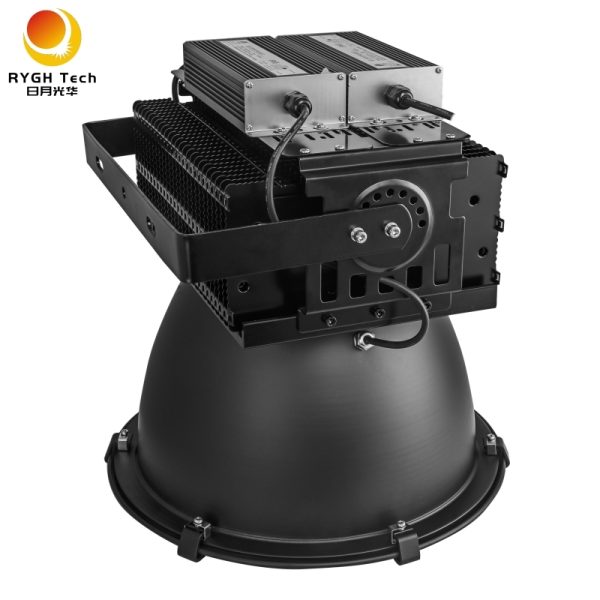

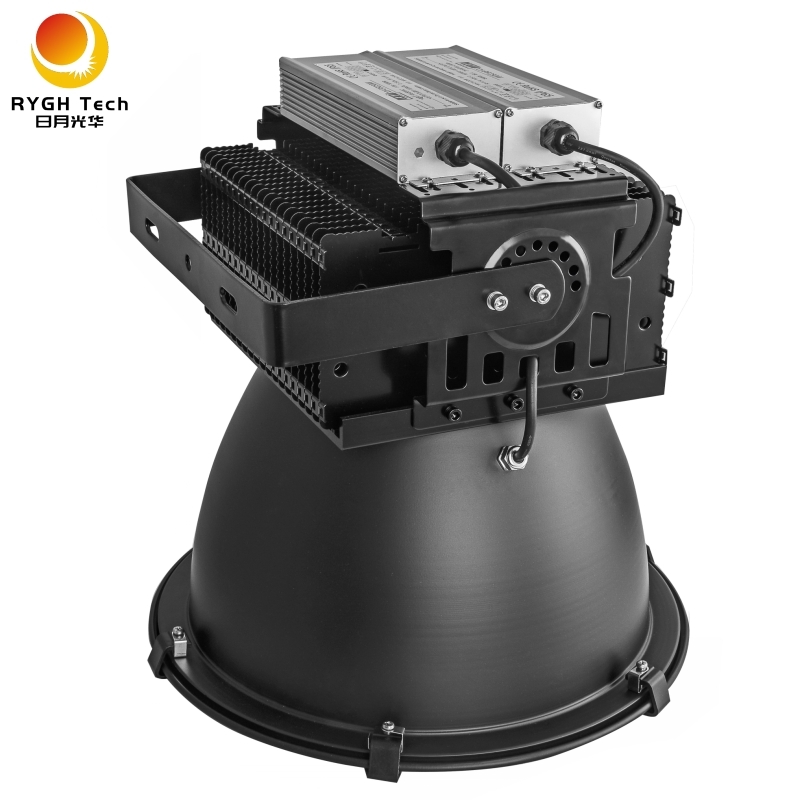

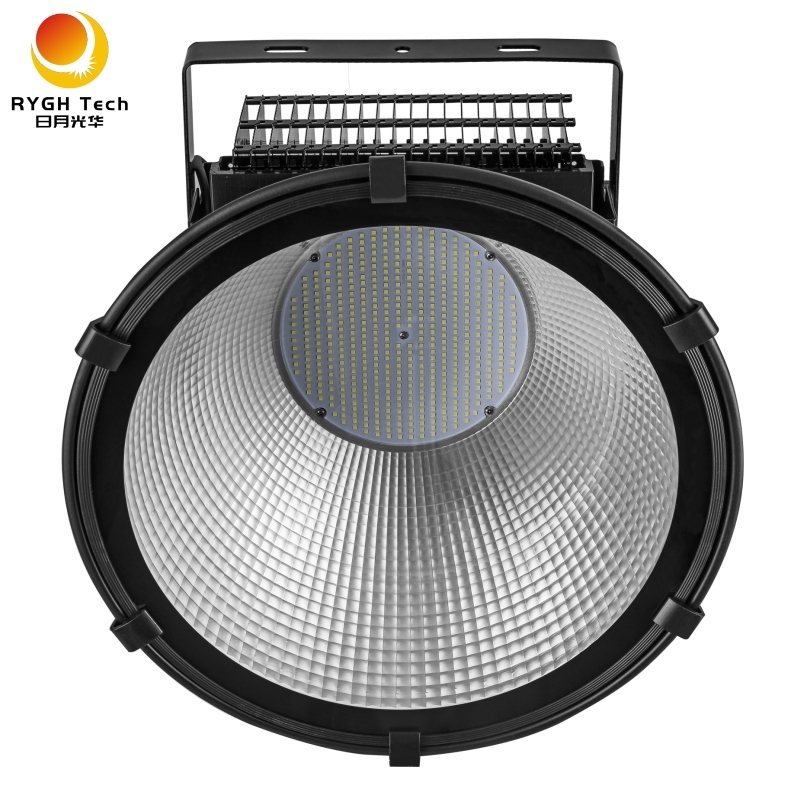

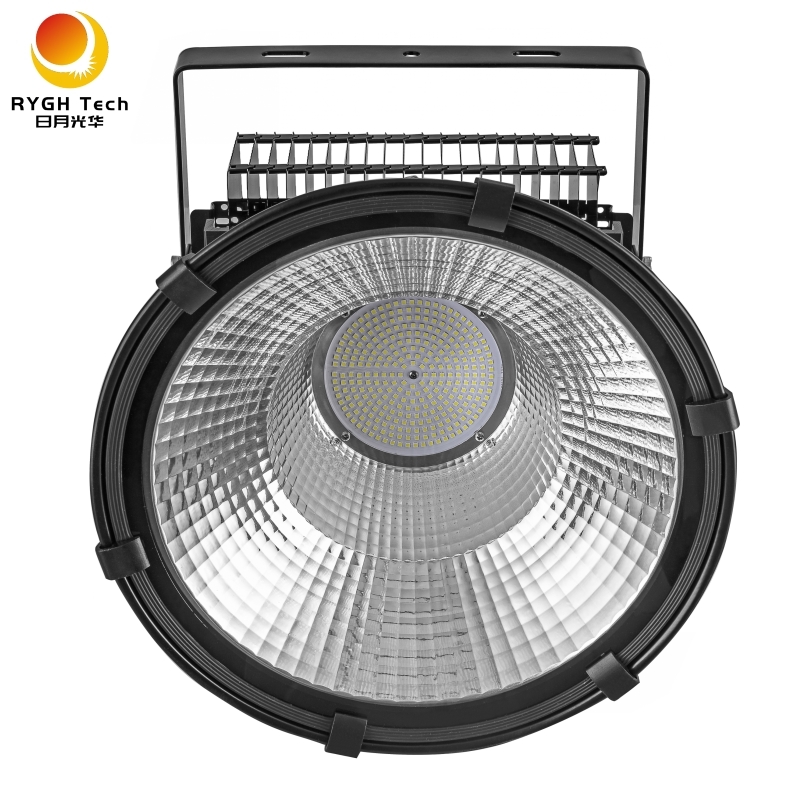

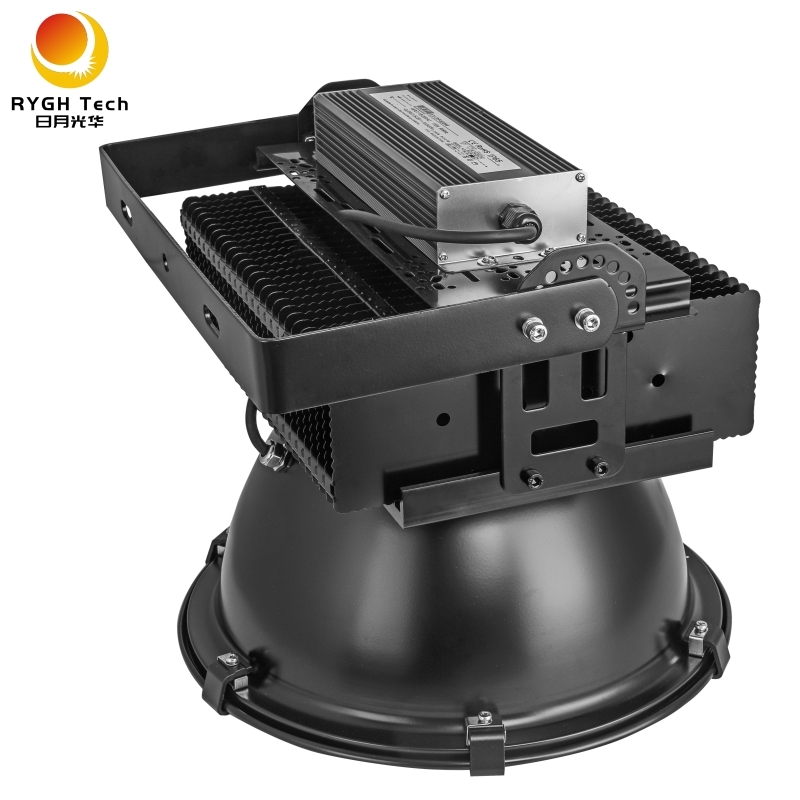

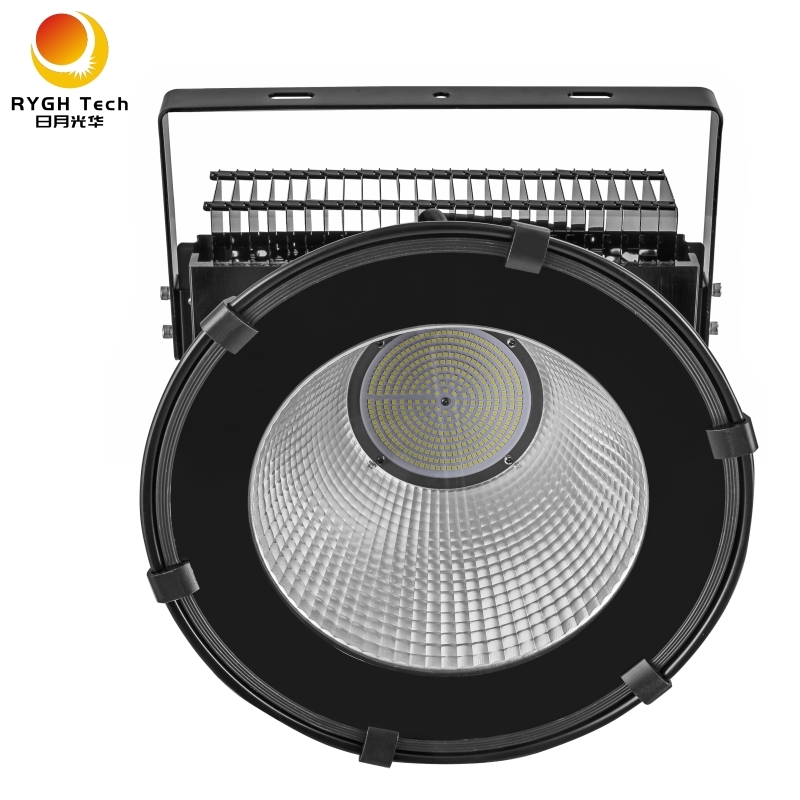

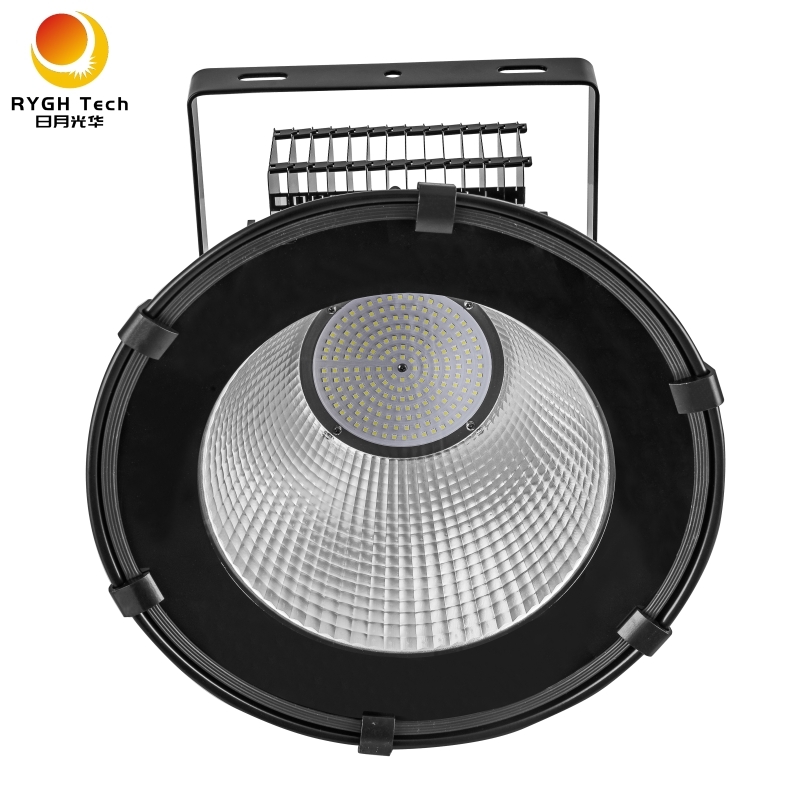

TD LED High Bay Light

TD LED High Bay Light Features: 150W | 240W | 320W | 400W | 480W

New mould, Fin type AL heatsink
High efficiency, 120-130lm/w available
Aluminium + glass lens, beam angle 25°60°
IP65 for indoor and outdoor use
Working voltage: AC 85-305V, 50/60Hz / AC 347-480V, 50/60Hz optional

Description
Reviews 0

TD LED High Bay Light Specifications

Model no.	RYGH-TD-150W	RYGH-TD-240W	RYGH-TD-320W	RYGH-TD-400W	RYGH-TD-480W
Rated power	150 Watt	240 Watt	320 Watt	400 Watt	480 Watt
Input voltage	AC 85-305V, 50/60Hz / AC 347-480V, 50/60Hz optional
LED Chip	3030 SMD	3030 SMD	3030 SMD	3030 SMD	3030 SMD
LED Driver	MEANWELL, INVENTRONICS, SOSEN, etc	MEANWELL, INVENTRONICS, SOSEN, etc	MEANWELL, INVENTRONICS, SOSEN, etc	MEANWELL, INVENTRONICS, SOSEN, etc	MEANWELL, INVENTRONICS, SOSEN, etc
Material	AL+Glass	AL+Glass	AL+Glass	AL+Glass	AL+Glass
CRI	70/80/90/95/98	70/80/90/95/98	70/80/90/95/98	70/80/90/95/98	70/80/90/95/98
Power Factor	>0.95	>0.95	>0.95	>0.95	>0.95
CCT	WW, NW, CW	WW, NW, CW	WW, NW, CW	WW, NW, CW	WW, NW, CW
Light efficacy	120-130LM/W	120-130LM/W	120-130LM/W	120-130LM/W	120-130LM/W
IP rating	IP65	IP65	IP65	IP65	IP65
IK rating	IK08	IK08	IK08	IK08	IK08
Operation temperature	-35~+50℃	-35~+50℃	-35~+50℃	-35~+50℃	-35~+50℃
Beam angle	25°60°	25°60°	25°60°	60°	60°
Warranty	5 Years	5 Years	5 Years	5 Years	5 Years
Life span	50,000 hours	50,000 hours	50,000 hours	50,000 hours	50,000 hours
Dimension	φ366.8 *H404mm	φ366.8 *H453.5mm	φ366.8 *H455.5mm	φ416 *H496mm	φ416 *H498mm
Certificate	CE, RoHs	CE, RoHs	CE, RoHs	CE, RoHs	CE, RoHs
Packing size	434336.5cm	434336.5cm	434336.5cm	474748.5cm	474748.5cm
PCS/CTN	1	1	1	1	1
N.W.	5.3KG	7KG	8KG	9KG	11KG
G.W.	7KG	8.5KG	9.5KG	10.5KG	12.5KG

Environment Requirement

Working Temperature：-35~+50℃

Storage Temperature：-35~+50℃

Working Humidity：0%~85%

Storage Humidity：0%~90%

TD LED High Bay Light Application:

TD LED High Bay Light can be widely applied in Warehouse, Factory, Workshop, Plant, Supermarket, Gas Station, Highway Toll Station, Food Factories, Livestock Farms etc.

Warning

Please install the lamp according to the installation to avoid dropping and electric shock.
Don’t exchange the lamp as will to avoid dropping ,electric shock and damage of the lamp.
Working voltage is not to be exceeded AC 85-305V, 50/60Hz / AC 347-480V, 50/60Hz optional

Attention

Don’t install the lamp to non-stable place.
Installed by qualified electrician.
Switch off the switch box and contact certified electrician if the lamp works abnormally

Warranty

3/5-year warranty since the date of purchase is offered for all bay Lights.

Warranty Terms

Under the terms of this warranty, if the product has a failure occurring under normal usage within warranty period, RYGH will provide free maintenance service based on the proof-documents and invoice (copy) of failure product.
RYGH will not provide paid maintenance service under conditions within warranty.
Failure or damage due to force majeure.
Failure or damage due to transport or unloading.
Failure or damage due to incorrectly usage or fail to comply with the User’s Guide and Caution.
Failure or damage due to demolition, repair, alteration without Manufacturer’s authorization.
Please deliver the failure product by original packing for maintenance service, RYGH will not be responsible for any failure or damage in transportation if customer uses non-original packing or improper packing.
RYGH reserves the right for final explanation of aforesaid terms.

Caution: RYGH will not be responsible for any other failure or damage by incorrect usage.
