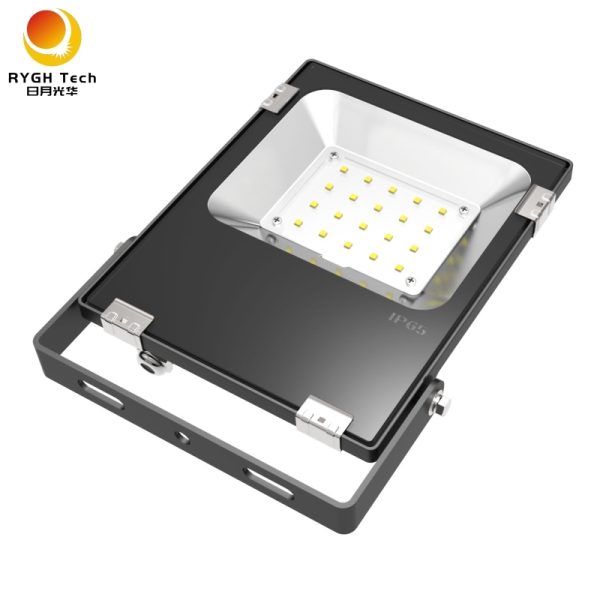

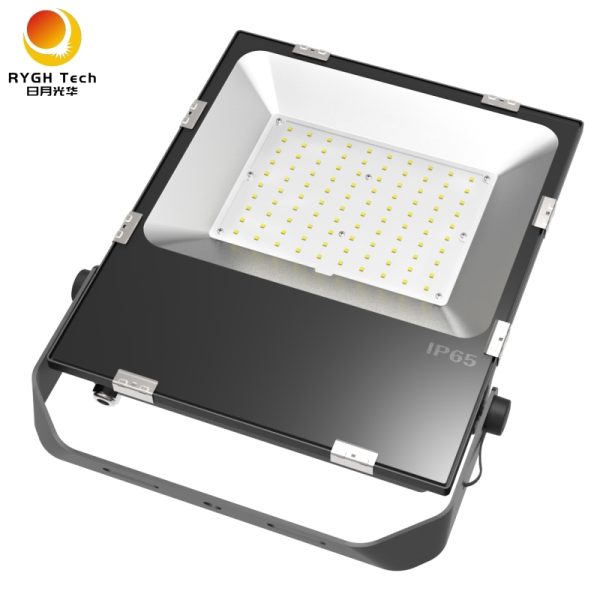

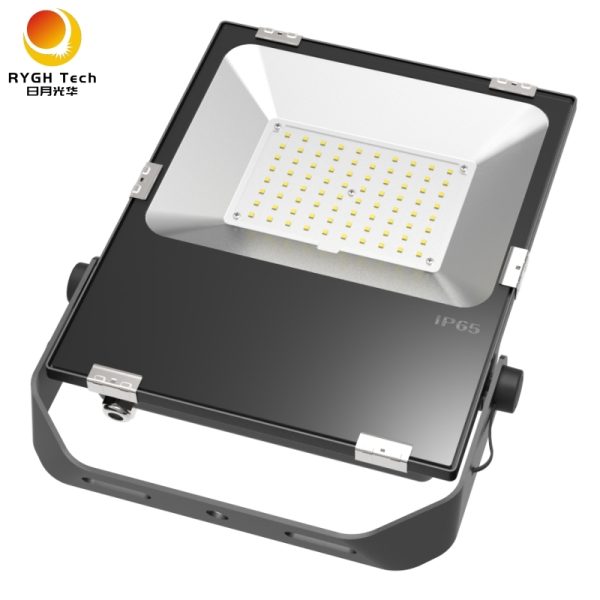

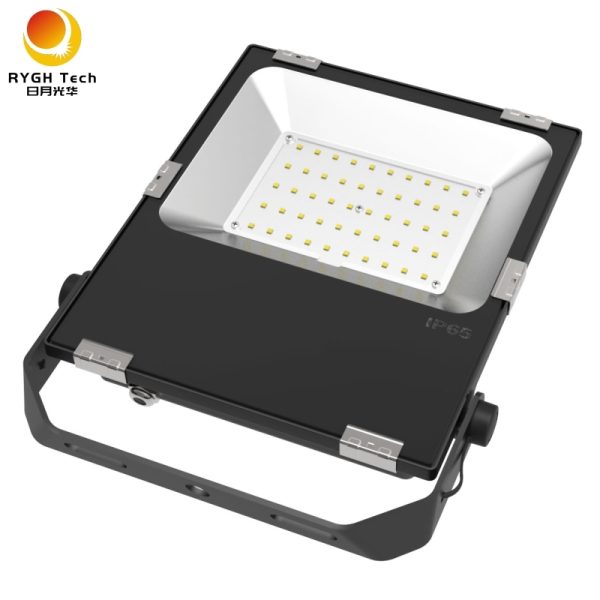

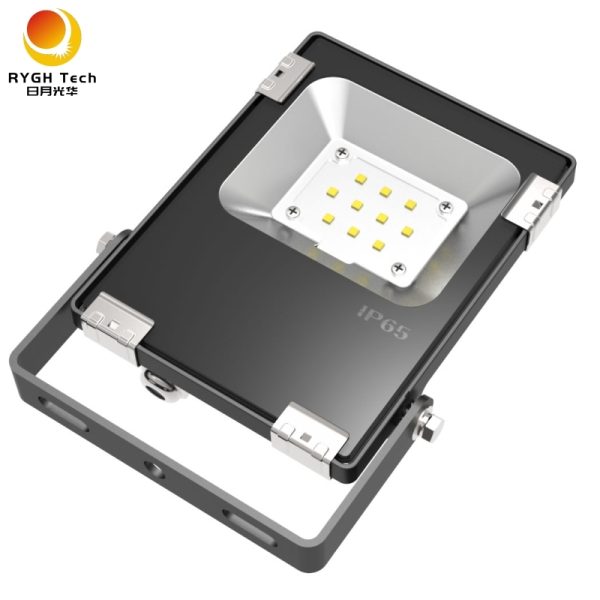

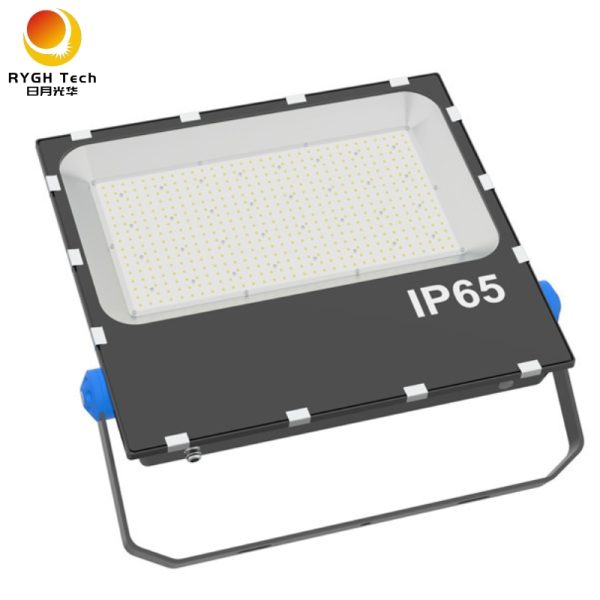

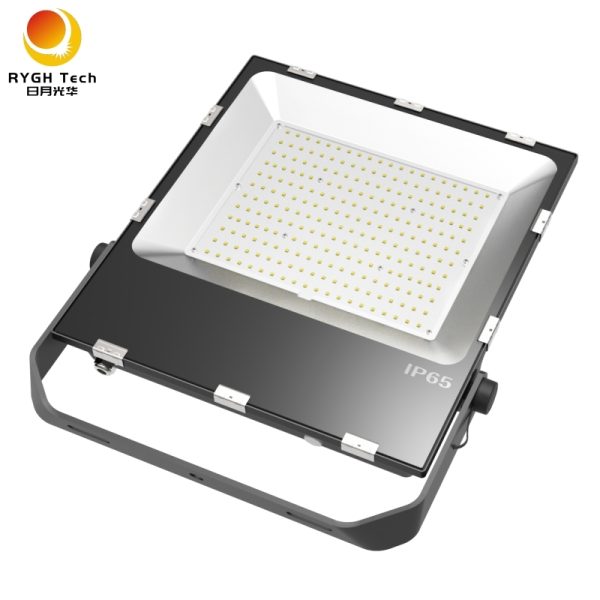

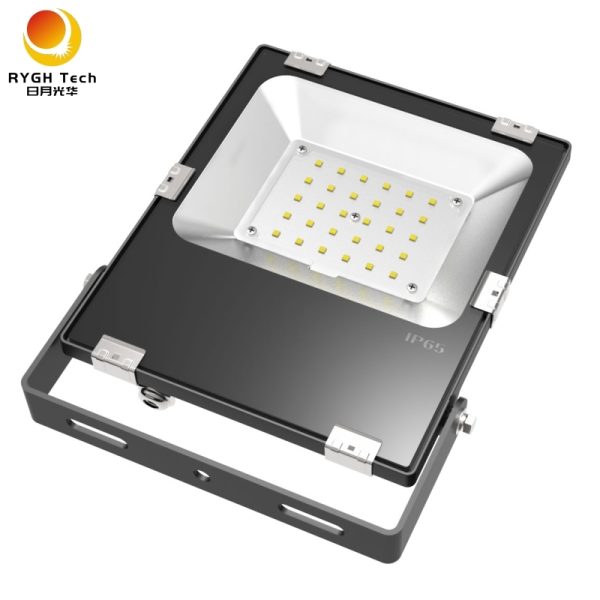

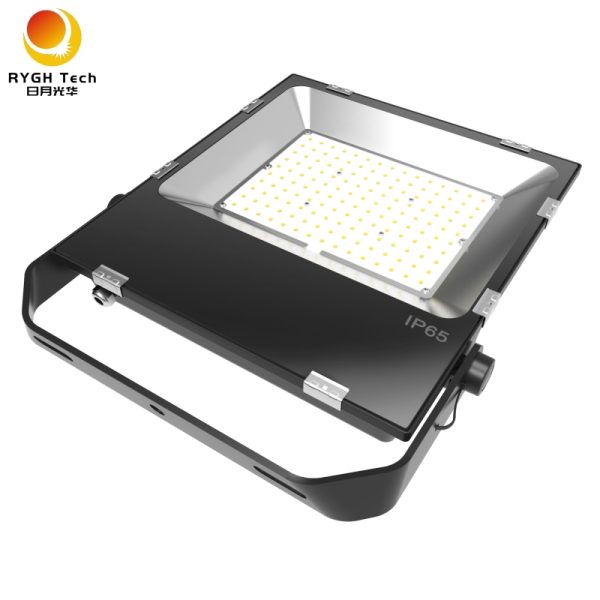

TG3B LED Flood Light

TG3B LED Flood Light Features: 10W|20W|30W|50W|80W|100W
150W|200W|300W|450W

1, High efficiency, 100-130lm/w available

2, Beam angle: 120°

3, Integrated die-casting aluminum housing, elegant appearance

4, Good heat dissipation, long lifespan

5, Tempered glass, surface coating process, excellent corrosion-proof

6, Protection index: IP66

Model no.	RYGH-TG3B-10W	RYGH-TG3B-20W	RYGH-TG3B-30W	RYGH-TG3B-50W	RYGH-TG3B-80W
Rated power	10 Watt	20 Watt	30 Watt	50 Watt	80 Watt
Input voltage	AC 85-277V, 50/60Hz	AC 85-277V, 50/60Hz	AC 85-305V, 50/60Hz	AC 85-305V, 50/60Hz	AC 85-305V, 50/60Hz
LED Chip	3030 SMD	3030 SMD	3030 SMD	3030 SMD	3030 SMD
LED Driver	China CE, RoHs, UL listed	China CE, RoHs, UL listed	MEANWELL, INVENTRONICS, SOSEN, etc	MEANWELL, INVENTRONICS, SOSEN, etc	MEANWELL, INVENTRONICS, SOSEN, etc
Material	Die cast AL+Glass	Die cast AL+Glass	Die cast AL+Glass	Die cast AL+Glass	Die cast AL+Glass
CRI	70/80/90/95/98	70/80/90/95/98	70/80/90/95/98	70/80/90/95/98	70/80/90/95/98
Power Factor	>0.95	>0.95	>0.95	>0.95	>0.95
CCT	WW, NW, CW	WW, NW, CW	WW, NW, CW	WW, NW, CW	WW, NW, CW
Light efficacy	100-130LM/W	100-130LM/W	100-130LM/W	100-130LM/W	100-130LM/W
IP rating	IP66	IP66	IP66	IP66	IP66
IK rating	IK08	IK08	IK08	IK08	IK08
Operation temperature	-35~+50℃	-35~+50℃	-35~+50℃	-35~+50℃	-35~+50℃
Beam angle	120°	120°	120°	120°	120°
Warranty	3 Years	3 Years	5 Years	5 Years	5 Years
Life span	50,000 hours	50,000 hours	50,000 hours	50,000 hours	50,000 hours
Dimension	L140W107H32mm	L190W152H40mm	L200W107H40mm	L310.5W220H50mm	L354.5W24555Hmm
Packing quantity	30 piece/CTN	24 piece/CTN	20 piece/CTN	8 piece/CTN	6 piece/CTN
Net Weight	0.49KG	1.01KG	1.09KG	1.83KG	3.89KG
Gross Weight	18KG	25.24KG	23.8KG	17KG	24.34KG
Packing size	L450W230H400mm	L590W230H590mm	L430W280H520mm	L370W270H490mm	L460W360H850mm
Certificate	CE, RoHs	CE, RoHs	CE, RoHs	CE, RoHs	CE, RoHs

Model no.	RYGH-TG3B-100W	RYGH-TG3B-150W	RYGH-TG3B-200W	RYGH-TG3B-300W	RYGH-TG3B-450W
Rated power	100 Watt	150 Watt	200 Watt	300 Watt	450 Watt
Input voltage	AC 85-305V, 50/60Hz	AC 85-305V, 50/60Hz	AC 85-305V, 50/60Hz	AC 85-305V, 50/60Hz	AC 85-305V, 50/60Hz
LED Chip	3030 SMD	3030 SMD	3030 SMD	3030 SMD	3030 SMD
LED Driver	MEANWELL, INVENTRONICS, SOSEN, etc	MEANWELL, INVENTRONICS, SOSEN, etc	MEANWELL, INVENTRONICS, SOSEN, etc	MEANWELL, INVENTRONICS, SOSEN, etc	MEANWELL, INVENTRONICS, SOSEN, etc
Material	Die cast AL+Glass	Die cast AL+Glass	Die cast AL+Glass	Die cast AL+Glass	Die cast AL+Glass
CRI	70/80/90/95/98	70/80/90/95/98	70/80/90/95/98	70/80/90/95/98	70/80/90/95/98
Power Factor	>0.95	>0.95	>0.95	>0.95	>0.95
CCT	WW, NW, CW	WW, NW, CW	WW, NW, CW	WW, NW, CW	WW, NW, CW
Light efficacy	100-130LM/W	100-130LM/W	100-130LM/W	100-130LM/W	100-130LM/W
IP rating	IP66	IP66	IP66	IP66	IP66
IK rating	IK08	IK08	IK08	IK08	IK08
Operation temperature	-35~+50℃	-35~+50℃	-35~+50℃	-35~+50℃	-35~+50℃
Beam angle	120°	120°	120°	120°	120°
Warranty	5 Years	5 Years	5 Years	5 Years	5 Years
Life span	50,000 hours	50,000 hours	50,000 hours	50,000 hours	50,000 hours
Dimension	L402.5W295H60mm	L430.5W330H60mm	L470.5W360H60mm	L567.5W475H65mm	L585W559H70mm
Packing quantity	1 Piece/CTN	1 Piece/CTN	1 Piece/CTN	1 Piece/CTN	1 Piece/CTN
Net Weight	4.53KG	5.8KG	6.6KG	11.5KG	15KG
Gross Weight	5.53KG	5.8KG	7.6KG	13.5KG	18KG
Packing size	L490W400H140mm	L520W440H140mm	L560W470H140mm	L630W520H140mm	L650W620H150mm
Certificate	CE, RoHs	CE, RoHs	CE, RoHs	CE, RoHs	CE, RoHs

Environment Requirement

Working Temperature：-35~+50℃

Storage Temperature：-35~+50℃

Working Humidity：0%~85%

Storage Humidity：0%~90%

TG3B LED Flood Light can be widely applied in Port, Wharf, Tower Crane, Golf Course, Football Field, Stadium etc.

Warning

Please install the lamp according to the installation to avoid dropping and electric shock.
Don’t exchange the lamp as will to avoid dropping ,electric shock and damage of the lamp.
Working voltage is not to be exceeded AC100-305V 50/60Hz

Attention

Don’t install the lamp to non-stable place.
Installed by qualified electrician.
Switch off the switch box and contact certified electrician if the lamp works abnormally

Warranty

5-year warranty since the date of purchase is offered for all flood Light.

Warranty Terms

Under the terms of this warranty, if the product has a failure occurring under normal usage within warranty period, RYGH will provide free maintenance service based on the proof-documents and invoice (copy) of failure product.
RYGH will not provide paid maintenance service under conditions within warranty.
Failure or damage due to force majeure.
Failure or damage due to transport or unloading.
Failure or damage due to incorrectly usage or fail to comply with the User’s Guide and Caution.
Failure or damage due to demolition, repair, alteration without Manufacturer’s authorization.
Please deliver the failure product by original packing for maintenance service, RYGH will not be responsible for any failure or damage in transportation if customer uses non-original packing or improper packing.
RYGH reserves the right for final explanation of aforesaid terms.
